Seite 1

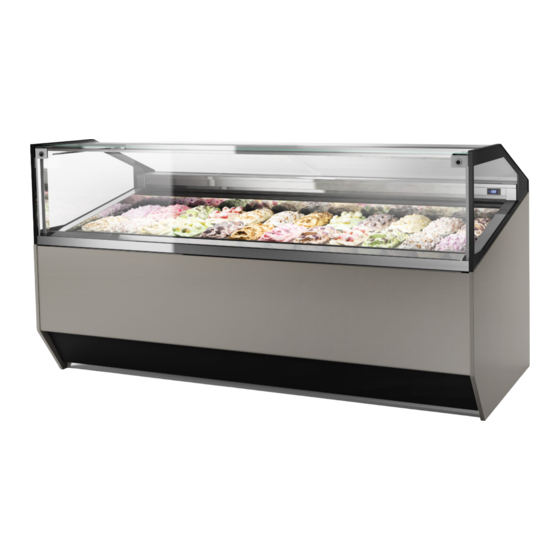

SUPERCAPRI MANUALE USO E MANUTENZIONE USE AND MAINTENANCE MANUAL MODE D’EMPLOI ET D’ENTRETIEN BENUTZER- UND INSTANDHALTUNGSHANDBUCH MANUAL DE USO Y MANTENIMIENTO ISA S.p.A. Via Madonna di Campagna 123 - 06083 Bastia Umbra PG - Italy T. +39 075 801 71 - F. +39 075 800 09 00 - E. customerservice@isaitaly.com www.isaitaly.com...
Seite 3
Parti elettriche sotto tensione o centro di assistenza tecnica ATTENZIONE / PERICOLO Informazione importante Operazioni che devono essere compiute da Informazioni due persone Osservazione visiva Note / Avvertenze PERICOLO Smaltimento rifiuti Scivolamento PERICOLO Materiali ricicabli Inciampo Messa a Terra 428000925100 SUPERCAPRI...
NOTA Il contenuto del presente manuale è di natura tecnica e di proprietà di ISA è vietato riprodurre, divulgare o modificare interamente o parzialmente il suo contenuto senza autorizzazione scritta. La società proprietaria tutela i propri diritti a norma di legge.
Mantenere libere da ostruzioni le aperture di ventilazione nell’involucro dell’apparecchio o nella struttura da incasso. Non danneggiare il circuito refrigerante. PERICOLO DI ESPLOSIONE Non conservare nell’ apparecchio prodotti contenenti propellenti gassosi combustibili e sostanze esplosive. 428000925100 SUPERCAPRI...
INTRODUZIONE ISA impiega materiali della migliore qualità e la loro introduzione in azienda, lo stoccaggio e l’impiego in produzione è costantemente controllato per garantire l’assenza di danni, deterioramenti e malfunzionamenti. Tutti gli elementi costruttivi sono stati progettati e realizzati tali da garantire un elevato standard di sicurezza e affidabilità.
Seite 7
AVVERTENZA Si fa obbligo agli istallatori ed agli utilizzatori di leggere e comprendere tutte le istruzioni qui contenute prima di qualsiasi operazione sull’ apparecchiatura. 428000925100 SUPERCAPRI...
Il volume della stanza dove si trova l’apparecchio deve essere di almeno 19 m³ per ogni impianto refrigerante presente. ATTENZIONE La manutenzione deve essere eseguita da personale tecnico addestrato ed abilitato per interventi su refrigeranti infiammabili. 428000925100 SUPERCAPRI...
Seite 9
Il volume della stanza dove si trova l’apparecchio deve essere di almeno 17 m³ per ogni impianto refrigerante presente. ATTENZIONE La manutenzione deve essere eseguita da personale tecnico addestrato ed abilitato per interventi su refrigeranti infiammabili. 428000925100 SUPERCAPRI...
COSTRUTTORE ISA S.p.A. www.isaitaly.com Via Madonna di Campagna 123 T. +39 075 801 71 06083 Bastia Umbra PG F. +39 075 800 09 00 Italy E. customerservice@isaitaly.com CONDIZIONI GENERALI DI GARANZIA Il venditore garantisce le proprie apparecchiature per la durata di 12 (dodici) mesi dalla consegna.
è obbligato a prevedere degli appositi dispositivi limitatori. È severamente vietato effettuare qualsiasi tipo di modifica elettrica per non creare pericoli aggiuntivi e rischi conseguenti non previsti. INCENDIO PERICOLO In caso di incendio provvedere sempre a disinserire immediatamente l’ interruttore generale della linea principale di alimentazione. 428000925100 SUPERCAPRI...
Maggiori informazioni sulle modalita’ di smaltimento di liquido refrigerante e di oli ed altre sostanze possono essere reperite sulla scheda di sicurezza delle sostanze stesse. Ai fini dello smaltimento degli assiemi schiumati si rammenta che le schiume poliuretaniche impiegate sono CFC, HFC e HCFC free. 428000925100 SUPERCAPRI...
III (3) e quindi che assicuri la protezione dei circuiti contro i guasti di terra, i sovraccarichi e i cortocircuiti. Non posizionare il cavo di collegamento in un punto di passaggio. ATTENZIONE Si ricorda che la messa a terra è necessaria e obbligatoria a termini di legge. 428000925100 SUPERCAPRI...
L’ apparecchiatura può essere dotata di ruote pivottanti con freno per facilitarne la movimentazione. Dopo il suo posizionamento l’ apparecchiatura deve essere stabilizzata a pavimento agendo sui specifici piedini regolabili in altezza ome indicato affinchè il peso non gravi sulle ruote. 428000925100 SUPERCAPRI...
SOSTITUZIONE PANNELLO DI CONTROLLO (centralina elettronica - termostato - etc) SOSTITUZIONE CAVO DI ALIMENTAZIONE, SPINE E/O PRESE ELETTRICHE ATTENZIONE Dopo ogni manutenzione devono essere obbligatoriamente eseguiti i test elettrici di sicurezza in accordo alla norma CEI EN 50106. 428000925100 SUPERCAPRI...
Intervento del pressostato di massima Verificare la causa dei continui interventi del pressostato di ASSISTENZA TECNICA pressione (ove presente) massima pressione quali: condensatore ad aria ostruito, ventilatore del condensatore ad aria fermo, temperatura ambiente eccessivamente alta, rottura del pressostato stesso. 428000925100 SUPERCAPRI...
Aprire e chiudere manualmente la tendina senza forzature e richiuderla assicurandosi che sia correttamente agganciata al magnete (A) indicato; la non corretta chiusura influisce negativamente sulle prestazioni dell’ apparecchiatura e sull’ eccessivo accumulo di ghiaccio sulle pareti interne. 428000925100 SUPERCAPRI...
Il vetro frontale ha una apertura limitata con un fine corsa, non forzare assolutamente l’ apertura oltre il limite consentito. 11.5.2 CHIUSURA (BLOCCO) VETRO Chiudere manualmente il vetro (dal basso verso l’ alto) premendolo uniformemente fino a quando i due pulsanti frontali laterali indicati sopra risultino nella posizione di blocco (A). 428000925100 SUPERCAPRI...
L’ apparecchiatura entra in funzione automaticamente ATTENZIONE La centralina elettronica viene installata già programmata. Eventuali modifiche al settaggio della centralina potranno essere eseguite solo da personale tecnico qualificato. 428000925100 SUPERCAPRI...
12.1 INTERFACCIA UTENTE Interruttore ON/OFF riscaldamento vetro superiore utilizzabile per eliminare la formazione di condensa in particolari situazioni climatiche. 428000925100 SUPERCAPRI...
Seite 26
A questo punto la tastiera è bloccata: è permessa solo la visualizzazione del Set-Point, della tempe- ratura massima e minima. PER SBLOCCARE LA TASTIERA Tenere premuti i tasti (1) e (5) per alcuni secondi finchè non appare la scritta “POn” lampeggiante. 428000925100 SUPERCAPRI...
Seite 27
Premendo il tasto SET (6) sarà possibile impostare l’ ora, i minuti, il giorno corrente ed i tre giorni festivi della settimana. Per uscire premere SET (6) + (5), quando si visualizza un parametro o attendere 15 secondi senza premere alcun tasto. 428000925100 SUPERCAPRI...
Seite 28
ON: Sbrinamento attivo Lampeggiante: Tempo di sgocciolamento in corso ON: Tastiera in modalità “ALL” Lampeggiante: Tastiera in modalità RVM (controllo remoto) ON: Segnalazione allarme In programmazione “Pr2” indica che il parametro è presente anche in “Pr1” ON: Luci accese 428000925100 SUPERCAPRI...
Seite 29
In programmazione scorre i codici dei parametri o ne incrementa il valore. Per vedere la minima temperatura raggiunta. In programmazione scorre i codici dei parametri o ne decrementa il valore. TASTO PRESSIONE COMBINATA Per entrare in programmazione. Per uscire dalla programmazione. 428000925100 SUPERCAPRI...
Seite 30
Per memorizzare il nuovo set point premere il tasto SET o attendere 15 secondi per uscire dalla programmazione. CANCELLAZIONE TEMPERATURE MEMORIZZATE • Per cancellare le temperature memorizzate, visualizzare la massima o la minima temperatura agendo sui tasti • Premere il tasto SET finchè il messaggio “rST” lampeggia 3 volte. 428000925100 SUPERCAPRI...
Procedere quindi anche alla pulizia ed igienizzazione della vaschetta di raccolta. Rimontare gli accessori precentemente rimossi (punto 3). Accendere l’ apparecchiatura e lasciar raffreddare il banco per fino al raggiungimento della temperatura desiderata prima di reintrodurre gli alimenti. 428000925100 SUPERCAPRI...
L’ apparecchiatura, corredata o meno del proprio imballo, deve essere stoccata con cura all’ interno dei magazzini o locali al riparo da intemperie, agenti atmosferici e dall’ esposizione diretta dei raggi del sole ad una temperatura compresa tra 0 e +40 °C. 428000925100 SUPERCAPRI...
Seite 33
ALLEGATO SCHEMA ELETTRICO - 412100885000 428000925100 SUPERCAPRI...
Seite 34
ALLEGATO SCHEMA ELETTRICO - 412100886000 428000925100 SUPERCAPRI...
Seite 35
ALLEGATO SCHEMA ELETTRICO - 412100887000 428000925100 SUPERCAPRI...
Seite 36
ALLEGATO SCHEMA ELETTRICO - 412100888000 428000925100 SUPERCAPRI...
Seite 37
ALLEGATO SCHEMA ELETTRICO - 412100889000 428000925100 SUPERCAPRI...
Seite 38
ALLEGATO SCHEMA ELETTRICO - 412100890100 428000925100 SUPERCAPRI...
Seite 39
ALLEGATO SCHEMA ELETTRICO - 412100891000 428000925100 SUPERCAPRI...
Seite 40
ALLEGATO SCHEMA ELETTRICO - 412100903000 428000925100 SUPERCAPRI...
Seite 41
ALLEGATO PLUS 1 - ISTRUZIONI PER REGOLAZIONE FLUSSO ARIA PLUS 1.1 ISTRUZIONI REGOLAZIONE FLUSSO MANDATA D’ ARIA POSTERIORE 1.1.1 1.1.2 1.1.3 428000925100 SUPERCAPRI...
Seite 42
ALLEGATO PLUS 2 - ISTRUZIONI PER REGOLAZIONE FLUSSO ARIA 1/2 PLUS 2.1 ISTRUZIONI REGOLAZIONE FLUSSO MANDATA D’ ARIA POSTERIORE 1.1.1 1.1.2 1.1.3 PLUS 2.2 ISTRUZIONI REGOLAZIONE FLUSSO MANDATA D’ ARIA CENTRALE 428000925100 SUPERCAPRI...
Seite 43
ALLEGATO PLUS 2 - ISTRUZIONI PER REGOLAZIONE FLUSSO ARIA 2/2 PLUS 2.2 ISTRUZIONI REGOLAZIONE FLUSSO MANDATA D’ ARIA CENTRALE 2.2.1 2.2.2 2.2.3 428000925100 SUPERCAPRI...
Seite 44
OPEN / CLOSE OPERATOR SIDE 11.5 FRONT GLASS OPENING 11.5.1 GLASS (UNLOCK) OPENING 11.5.2 GLASS (LOCK) CLOSING CONTROL PANEL 12.1 USER INTERFACE CLEANING 13.1 INTERNAL 13.2 CONDENSING UNIT (REMOVABLE) 13.3 DEFROST WATER COLLECTION TRAY (IF PRESENT) PROLONGED APPLIANCE SWITCH-OFF 428000925100 SUPERCAPRI...
Seite 45
Live electrical parts technical assistance centre ATTENTION / DANGER Important information Operations that must be performed by two Information persons Eye check Notes/Important Notes DANGER Waste disposal Slipping DANGER Recyclable Material Tripping Earthing 428000925100 SUPERCAPRI...
NOTES / WARNINGS NOTE The content of this manual is of technical nature and is owned by ISA. It is forbidden to reproduce, circulate or modify all or part of its content without written consent. Any infringement will be legally pursued.
ISA S.r.l. technicians. Never use electric devices inside this appliance. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
INTRODUCTION ISA employs materials of the best quality and as they enter the company, we constantly monitor their storage and the use as part of the manufacturing process to prevent damage, deterioration and failure. All manufacturing elements has been designed and manufactured in order to guarantee reliability and high safety standards.
Seite 49
WARNING Installers and users must read and understand all instructions herein before carrying out any operation on the equipment. 428000925100 SUPERCAPRI...
19 m³ for each cooling system present in the room. ATTENTION Maintenance must be performed by qualified technical personnel with ap- propriate training and authorisation to work with inflammable refrigerants. 428000925100 SUPERCAPRI...
Seite 51
17 m³ for each cooling system present in the room. ATTENTION Maintenance must be performed by qualified technical personnel with ap- propriate training and authorisation to work with inflammable refrigerants. 428000925100 SUPERCAPRI...
MANUFACTURER ISA S.p.A. www.isaitaly.com Via Madonna di Campagna 123 T. +39 075 801 71 06083 Bastia Umbra PG F. +39 075 800 09 00 Italy E. customerservice@isaitaly.com WARRANTY TERMS AND CONDITIONS The seller's warranty on the equipment is valid for 12 (TWELVE) months from the date of delivery.
On board or remote condensing unit Electrical system Electronic command panel Insulated monolithic structure in ecological polyurethane Internal LED lighting Closing operator side with sliding panels/manual self-rolling curtain Front glass tilted manually Swivel casters with locking brakes Height adjustable feet 428000925100 SUPERCAPRI...
It is strictly forbidden to conduct any electrical modification, in order to prevent additional unforeseen hazards and risks. FIRE DANGER In the event of a fire, immediately disconnect the master switch from the main power supply line. 428000925100 SUPERCAPRI...
If the foodstuffs do accidentally make contact with the surfaces and for a rather long time, the product may be contaminated. Follow the guidelines on how to use the cabinet. If a product package breaks, remove it from the cabinet and clean, if necessary. 428000925100 SUPERCAPRI...
Further information on the disposal of liquid coolant, oils and other substances is available on the safety data sheet corresponding to the substance itself. In order to dispose of foamed assemblies, remember that the polyurethane foams used are CFC, HFC and HCFC free. 428000925100 SUPERCAPRI...
(dimensioned to the load and in compliance with Standards in force), which guarantees complete disconnection in category III (3) over-voltage conditions and therefore protects the circuits against earth faults, overloads and short circuits. Do not route the electricity cable in passageways. ATTENTION Earthing is necessary and mandatory by law. 428000925100 SUPERCAPRI...
The equipment may be equipped with pivoting wheels with brake for easier handling. After its positioning, the equipment must be stabilised on the floor acting on the specific feet that are adjustable in height as indicated so that the weight is not resting on the wheels. 428000925100 SUPERCAPRI...
(electronic control unit - thermostat - etc.) REPLACEMENT POWER SUPPLY CABLE, PLUGS AND / OR ELECTRICAL SOCKETS ATTENTION After all maintenance it is mandatory to perform all electrical safety tests in accordance with the IEC EN 50106 Standard. 428000925100 SUPERCAPRI...
If the control unit is set up especially for must R290 refriger- ant, it must only be replaced with an original replacement from ISA. Replace the temperature probes only after check- ing which of the two is not operating efficiently.
CABLE OUTPUT CONTROL PANEL WHEEL WHEEL WITH BRAKE CUSTOMER SIDE GAS + CONDENSATE PIPES OUTPUT 11.2 MODULAR ARRANGEMENT ICE CREAM CONTAINERS (OPTIONAL) MODEL 5 litres 5 litres 360 x 165 x 120h 360 x 250 x 80h 11.3 LIGHTING 428000925100 SUPERCAPRI...
Manually open and close the curtain without forcing and close it again making sure that it is correctly hooked to the magnet (A) indicated; incorrect closure negatively affects the performance of the appliance and can result in the excessive accumulation of ice on the inner walls. 428000925100 SUPERCAPRI...
The front glass has opening limited by means of a limit switch; under no circumstances force the opening beyond the limit permitted. 11.5.2 GLASS (LOCK) CLOSING Manually close the glass (from the bottom upwards) pressing it evenly until the two front side buttons shown above are in the lock position (A). 428000925100 SUPERCAPRI...
The appliance will start working automatically ATTENTION The electronic control board is installed already programmed. Any changes to the control board settings can be carried out exclusively by qualified technical personnel. 428000925100 SUPERCAPRI...
12.1 USER INTERFACE The ON/OFF switch upper glass heating can be used to eliminate the formation of condensation in particular climatic situations. 428000925100 SUPERCAPRI...
Seite 68
At this point the keyboard is locked: only the Set-Point and the maximum and minimum tempera- tures can be viewed. TO RELEASE THE KEYBOARD Press and hold the keys (1) and (5) for a few seconds until the word "POn" appears flashing. 428000925100 SUPERCAPRI...
Seite 69
Pressing the button SET (6) it will be possible to set the hour, minutes, the current day and the three public holidays of the week. To exit press SET (6) + (5), when a parameter is displayed or wait 15 seconds with- out pressing any key. 428000925100 SUPERCAPRI...
Seite 70
ON: Defrost active Flashing: Drip time in progress ON: Keyboard in "ALL" mode Flashing: Keyboard in RVM mode (remote control) ON: Alarm signal In “Pr2” programming it indicates that the parameter is also present in “Pr1” ON: Lights on 428000925100 SUPERCAPRI...
Seite 71
While programming, it scrolls through the parameter codes or increases their value. To view the minimum temperature reached. While programming, it scrolls through the parameter codes or decreases their value. BUTTON COMBINED PRESSING To enter the programming function. To exit the programming function. 428000925100 SUPERCAPRI...
Seite 72
To save the new set point, press the SET key or wait 15 seconds to exit the programming function. CANCELLATION STORED TEMPERATURES • To cancel the stored temperatures, to display the maximum or minimum temperature use the buttons • Press the SET button until the "rST" message flashes 3 times. 428000925100 SUPERCAPRI...
Fit the accessories that were removed (step 3). Turn on the equipment and allow to cool on the bench for at least 2 hours or until it reaches the desired temperature before reintroducing foods. 428000925100 SUPERCAPRI...
The equipment, whether equipped with its packaging or not, must be stored with care in the warehouse or in an area protected from the elements, atmospheric agents and away from direct sunlight, at a temperature between 0 and +40°C. 428000925100 SUPERCAPRI...
Seite 75
ATTACHMENTS WIRING DIAGRAM - 412100885000 428000925100 SUPERCAPRI...
Seite 76
ATTACHMENTS WIRING DIAGRAM - 412100886000 428000925100 SUPERCAPRI...
Seite 77
ATTACHMENTS WIRING DIAGRAM - 412100887000 428000925100 SUPERCAPRI...
Seite 78
ATTACHMENTS WIRING DIAGRAM - 412100888000 428000925100 SUPERCAPRI...
Seite 79
ATTACHMENTS WIRING DIAGRAM - 412100889000 428000925100 SUPERCAPRI...
Seite 80
ATTACHMENTS WIRING DIAGRAM - 412100890100 428000925100 SUPERCAPRI...
Seite 81
ATTACHMENTS WIRING DIAGRAM - 412100891000 428000925100 SUPERCAPRI...
Seite 82
ATTACHMENTS WIRING DIAGRAM - 412100903000 428000925100 SUPERCAPRI...
Seite 83
ATTACHMENTS PLUS 1 - INSTRUCTIONS FOR AIR FLOW REGULATION PLUS 1.1 REGULATION INSTRUCTIONSREAR AIR OUTPUT FLOW 1.1.1 1.1.2 1.1.3 428000925100 SUPERCAPRI...
Seite 84
ATTACHMENTS PLUS 2 - INSTRUCTIONS FOR AIR FLOW REGULATION 1/2 PLUS 2.1 REGULATION INSTRUCTIONSREAR AIR SUPPLY FLOW 1.1.1 1.1.2 1.1.3 PLUS 2.2 REGULATION INSTRUCTIONSCENTRAL AIR SUPPLY FLOW 428000925100 SUPERCAPRI...
Seite 85
ATTACHMENTS PLUS 2 - INSTRUCTIONS FOR AIR FLOW REGULATION 2/2 PLUS 2.2 REGULATION INSTRUCTIONSCENTRAL AIR SUPPLY FLOW 2.2.1 2.2.2 2.2.3 428000925100 SUPERCAPRI...
Seite 86
OUVERTURE (DÈBLOCAGE) DE LA VITRE 11.5.2 FERMETURE (BLOCAGE) DE LA VITRE PANNEAU DE COMMANDE 12.1 INTERFACE UTILISATEUR NETTOYAGE 13.1 INTERNE 13.2 UNITÉ DE CONDENSATION (EXTRACTABLE) 13.3 BAC DE RÉCUPÉRATION DE L'EAU DE DÉGIVRAGE (SI PRÉSENT) ARRÊT PROLONGÉ DE L'APPAREIL 428000925100 SUPERCAPRI...
Seite 87
Parties électriques sous tension ou un centre d'assistance technique ATTENTION / DANGER Information importante Opérations qui doivent être effectuées par Informations deux personnes Contrôle visuel Remarques / Avertissements DANGER Élimination des déchets Glissement DANGER Matériaux recyclables Trébuchement Mise à la terre 428000925100 SUPERCAPRI...
à ce qu'il soit toujours placé à proximité de l'appareil. En cas de perte ou de destruction, il est possible de demander une copie à ISA en précisant le modèle, le numéro de série et l'année de fabrication. Ce manuel fait état de la technique au moment de la fourniture, notre société...
Dégager les bouches d'aération du boîtier de l'appareil ou de la structure d'encastrement. Ne pas endommager le circuit réfrigérant. RISQUE D'EXPLOSION Ne pas conserver à l'intérieur de l'appareil des produits contenant des gaz propulseurs combustibles ou des substances explosives. 428000925100 SUPERCAPRI...
INTRODUCTION ISA utilise des matériaux de toute première qualité et leur arrivée à l'usine, leur stockage et leur utilisation en fabrication sont constamment contrôlés pour s'assurer de l'absence de dommages, de détériorations et de dysfonctionnements.
Seite 91
à accomplir. AVERTISSEMENT Les installateurs et utilisateurs de l'appareil sont obligés de lire et comprendre toutes les instructions du manuel avant d'accomplir une quelconque opération sur l'appareil. 428000925100 SUPERCAPRI...
Le volume de la pièce où se trouve l'appareil doit être d'au moins 19 m³ pour chaque système de réfrigération présent. ATTENTION La manutention doit être effectuée par un technicien formé et apte à intervenir sur les fluides réfrigérants inflammables. 428000925100 SUPERCAPRI...
Seite 93
Le volume de la pièce où se trouve l'appareil doit être d'au moins 17 m³ pour chaque système de réfrigération présent. ATTENTION La manutention doit être effectuée par un technicien formé et apte à intervenir sur les fluides réfrigérants inflammables. 428000925100 SUPERCAPRI...
FABRICANT ISA S.p.A. www.isaitaly.com Via Madonna di Campagna 123 T. +39 075 801 71 06083 Bastia Umbra PG F. +39 075 800 09 00 Italie E. customerservice@isaitaly.com CONDITIONS GÉNÉRALES DE GARANTIE Le vendeur garantit son matériel pour une période de 12 (douze) mois à compter de la date de livraison.
Tableau de commande électronique Structure monolithique isolée en polyuréthane écologique Éclairage interne à LED Fermeture côté opérateur avec store coulissant / store enrouleur manuel Vitre frontale basculante manuellement Roues pivotantes avec frein de blocage Pieds réglables manuellement en hauteur 428000925100 SUPERCAPRI...
Il est strictement interdit d'effectuer tout type de modification électrique pour ne pas créer des dangers supplémentaires et des risques conséquents non prévus. 6.6 INCENDIE DANGER En cas d'incendie, couper immédiatement l'interrupteur général de la ligne d'alimentation principale. 428000925100 SUPERCAPRI...
; dans ce cas, s'en tenir scrupuleusement aux dispositions d'utilisation de l'appareil (retirer la confection abîmée de la vitrine et nettoyer avec des produits spécifiques). 428000925100 SUPERCAPRI...
D'autres informations sur les modalités de collecte de traitement du fluide réfrigérant et des huiles et d'autres substances sont fournies dans la fiche de sécurité de ces derniers. Aux fins de l'élimination des produits moussants, nous rappelons que les mousses polyuréthanes employées sont dépourvues de CFC, HFC et HCFC. 428000925100 SUPERCAPRI...
(3) et donc assurer la protection des circuits contre les problèmes liés à la mise à la terre, aux surcharges et aux courts-circuits. Ne pas placer le câble d'alimentation dans des endroits de passage. ATTENTION Ne pas oublier que la mise à la terre est indispensable et obligatoire vis-à-vis de la loi. 428000925100 SUPERCAPRI...
L’ appareil peut être muni de roues pivotantes à frein pour faciliter son déplacement. Après sa mise en place, l'appareil doit être stabilisé au sol en agissant sur les pieds réglables en hauteur de façon à ce que le poids n'appuie pas sur les roues. 428000925100 SUPERCAPRI...
REMPLACEMENT DU PANNEAU DE CONTRÔLE (centrale électronique - thermostat - etc) REMPLACEMENT DU CÂBLE D'ALIMENTATION, DES FICHES ET/OU DES PRISES ÉLECTRIQUES ATTENTION Après chaque entretien il faut obligatoirement effectuer les tests électriques de sécurité conformément à la norme CEI EN 50106. 428000925100 SUPERCAPRI...
Intervention du pressostat HP Vérifier la cause des interventions continues du pressostat de ASSISTANCE TECHNIQUE (si présent) pression maximale : condensateur à air obstrué, ventilateur du condensateur à l'air arrêt, température ambiante trop élevée, rupture du modulateur de pression. 428000925100 SUPERCAPRI...
SORTIE CÂBLES TABLEAU DE COMMANDE ROULETTE ROULETTE AVEC FREIN CÔTÉ CLIENT SORTIE TUYAUX GA + CONDENSATION 11.2 COMPOSITION DES BACS À GLACE (EN OPTION) MODÈLE 360 x 165 x 120h 360 x 250 x 80h 11.3 ÉCLAIRAGE ÀLED 428000925100 SUPERCAPRI...
Enrouler et dérouler manuellement le store sans forcer et le refermer en s’assurant de sa fermeture magnétique au moyen de l’aimant (A) indiqué ; la fermeture incomplète influe négativement sur les prestations de l'appareil et sur l'accumulation excessive de glace sur les parois internes. 428000925100 SUPERCAPRI...
11.5.2 FERMETURE (BLOCAGE) DE LA VITRE Fermer manuellement la vitre (du bas vers le haut) en la poussant de façon uniforme jusqu’à ce que les deux boutons latéraux situés sur la façade (indiqués ci-dessus) soient en position de blocage (A). 428000925100 SUPERCAPRI...
S'assurer que cette dernière soit bien munie de contact de terre et qu'il n'y ait pas de prises multiples branchées. L'appareil entre automatiquement en fonction ATTENTION La centrale électronique est installée déjà programmée. Toute modification des réglages de l'appareil peut être effectuée uniquement par un personnel qualifié. 428000925100 SUPERCAPRI...
12.1 INTERFACE UTILISATEUR Interrupteur ON/OFF réchauffement vitre supérieure utilisable pour éliminer la formation de condensation dans des situations climatiques particulières. 428000925100 SUPERCAPRI...
Seite 110
Dès lors le clavier est verrouillé : il est uniquement possible d'afficher la valeur de consigne, la température maximum et minimum. POUR DÉVERROUILLER LE CLAVIER Maintenir appuyées les touches (1) et (5) pendant quelques secondes jusqu'à ce que l'inscription clignotante “POn” s'affiche. 428000925100 SUPERCAPRI...
Seite 111
En appuyant sur la touche SET (6), il est possible de configurer l'heure, les mi- nutes, le jour courant et les trois jours fériés de la semaine. Pour quitter, appuyer sur SET (6) + (5), quand un paramètre s'affiche ou attendre 15 secondes sans frapper aucune touche. 428000925100 SUPERCAPRI...
Seite 112
ON : Clavier en mode « ALL » Clignotant : Clavier en mode RVM (contrôle à distance) ON : Signal d'alarme Dans la programmation "Pr2", cela indique que le paramètre est aussi présent dans "Pr1" ON : Éclairage ON 428000925100 SUPERCAPRI...
Seite 113
En programmation, il fait défiler les codes des paramètres ou en augmente la valeur. Pour voir la température minimale atteinte. En programmation, il fait défiler les codes des paramètres ou en diminue la valeur. BOUTON PRESSION COMBINÉE Pour accéder au menu de programmation. Pour quitter la programmation. 428000925100 SUPERCAPRI...
Seite 114
15 secondes pour sortir de la programmation. ÉLIMINATION TEMPÉRATURES MÉMORISÉES • Pour effacer les températures mémorisées, visualiser la température maximale ou minimale en utilisant les touches • Presser la touche SET jusqu'à ce que le message « rST » clignote 3 fois. 428000925100 SUPERCAPRI...
à l'assainissement du bac à eau. Remonter les accessoires précédemment retirés (point 3). Allumer l'appareil et laisser refroidir l'unité au moins deux heures ou jusqu'à atteindre la température désirée avant de réintroduire les produits alimentaires. 428000925100 SUPERCAPRI...
L'équipement, avec ou sans emballage, doit être stocké soigneusement à l'intérieur de magasins ou de locaux à l'abri des intempéries, des agents atmosphériques, de l'exposition directe aux rayons solaires et à une température comprise entre 0 et +40 °C. MAXI 428000925100 SUPERCAPRI...
Seite 117
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100885000 428000925100 SUPERCAPRI...
Seite 118
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100886000 428000925100 SUPERCAPRI...
Seite 119
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100887000 428000925100 SUPERCAPRI...
Seite 120
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100888000 428000925100 SUPERCAPRI...
Seite 121
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100889000 428000925100 SUPERCAPRI...
Seite 122
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100890100 428000925100 SUPERCAPRI...
Seite 123
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100891000 428000925100 SUPERCAPRI...
Seite 124
PIÈCES JOINTES SCHÉMA ÉLECTRIQUE - 412100903000 428000925100 SUPERCAPRI...
Seite 125
PIÈCES JOINTES PLUS 1 - INSTRUCTIONS POUR LE RÉGLAGE DU FLUX D’AIR PLUS 1.1 INSTRUCTIONS RÉGLAGE FLUX DU REFOULEMENT ARRIÈRE DE L'AIR 1.1.1 1.1.2 1.1.3 428000925100 SUPERCAPRI...
Seite 126
PIÈCES JOINTES PLUS 2 - INSTRUCTIONS POUR LE RÉGLAGE DU FLUX D’AIR 1/2 PLUS 2.1 INSTRUCTIONS RÉGLAGE FLUX DU REFOULEMENT ARRIÈRE DE L'AIR 1.1.1 1.1.2 1.1.3 PLUS 2.2 INSTRUCTIONS RÉGLAGE FLUX DU REFOULEMENT CENTRAL DE L'AIR 428000925100 SUPERCAPRI...
Seite 127
PIÈCES JOINTES PLUS 2 - INSTRUCTIONS POUR LE RÉGLAGE DU FLUX D’AIR 2/2 PLUS 2.2 INSTRUCTIONS RÉGLAGE FLUX DU REFOULEMENT CENTRAL DE L'AIR 2.2.1 2.2.2 2.2.3 428000925100 SUPERCAPRI...
Seite 128
