2. SELECTING THE INSTALLATION SITE

2-1. Indoor Unit

AVOID:
● areas where leakage of flammable gas may be expected.
● places where large amounts of oil mist exist.
● direct sunlight.
● locations near heat sources which may affect the
performance of the unit.
● locations where external air may enter the room directly.
This may cause "condensation" on the air discharge ports,
causing them to spray or drip water.
● locations where the remote controller will be splashed with
water or affected by dampness or humidity.
● installing the remote controller behind curtains or furniture.
● locations where high-frequency emissions are generated.
DO:
● select an appropriate position from which every corner of the
room can be uniformly cooled.
● select a location where the ceiling is strong enough to
support the weight of the unit.
WARNING
The installation position must be able to support a load
four times the indoor unit weight.
● select a location where tubing and drain pipe have the
shortest run to the outdoor unit.
● allow room for operation and maintenance as well as
unrestricted air flow around the unit.
● install the unit within the maximum elevation difference
above or below the outdoor unit and within a total tubing
length (L) from the outdoor unit as detailed in the installation
manual packed with the outdoor unit.
● allow room for mounting the remote controller about 1m off
the floor, in an area that is not in direct sunlight or in the flow
of cool air from the indoor unit.
NOT E
Air delivery will be degraded if the distance from the floor to the ceiling is
greater than 3 m.
1000 or
more
(Unit: mm)
Obstacles
* If the height from the fl oor to ceiling exceeds three meters, air
fl ow distribution deteriorates and the effect is decreased.
Downloaded from www.Manualslib.com
Beam
500 or 500 or 500 or
more more more
(Unit: mm)
Floor

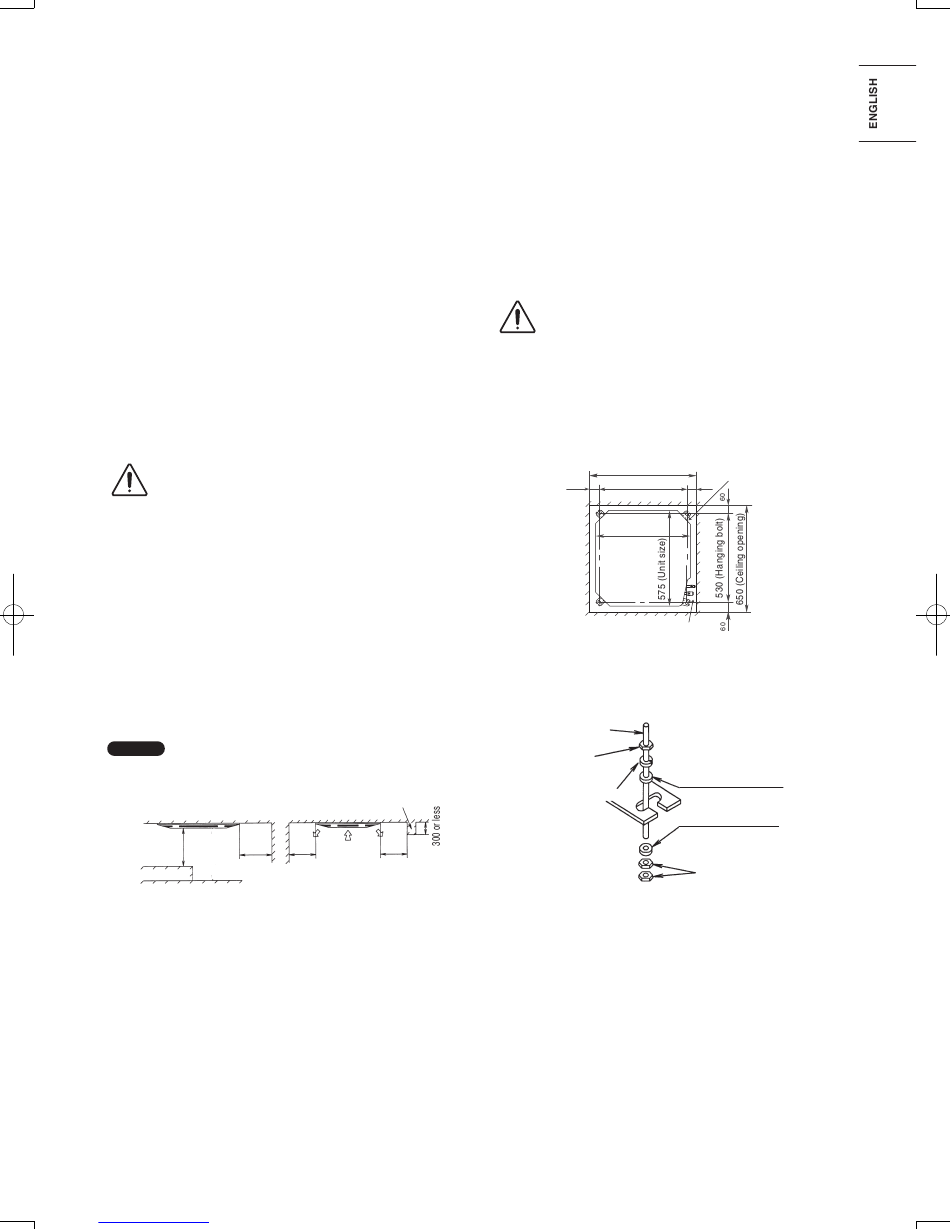

Fig. 2-1
manuals search engine

3. HOW TO INSTALL THE INDOOR UNIT

3-1. Preparation for Ceiling Suspension

This unit uses a drain pump. Use a carpenter's level to check
that the unit is level.
3-2. Ceiling Opening Dimensions and Hanging Bolt
Location
This air conditioner uses a drain up motor. Horizontally install
the unit using a carpenter's level.
The paper model for installation expand or shrink according to
temperature and humidity.
Check on dimensions before using it.
CAUTION
During the installation, care must be taken not to damage
electric wires.
● The dimensions of the paper model for installation are the
same as those of the ceiling opening dimensions.
● Be sure to discuss the ceiling drilling work with the workers
concerned.
650 (Ceiling opening)
60 530
(Hanging bolt)
575 (Unit size)
Refrigerant pipe
3-3. Positions of Air Conditioner Body and Ceiling
Surface
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
M10 Spring washer
7
(Unit: mm)
Drain pipe
60
Fig. 3-1
Flat washer for M10
(accessory)
Flat washer for M10
(accessory)
Nut
(W3/8 or M10)
Fig. 3-2
