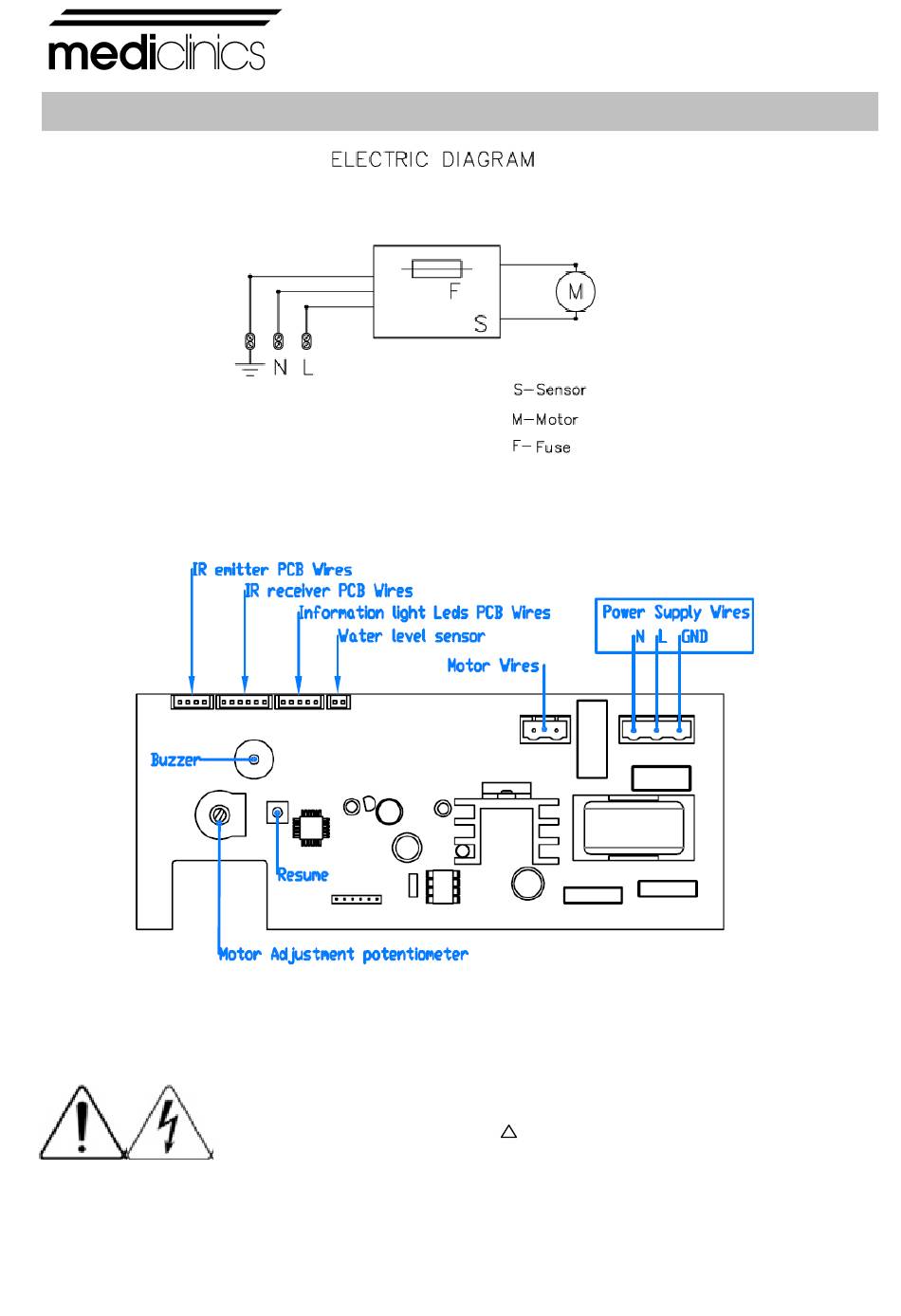

CONNECTION DIAGRAM

Figure nº 9
Figure nº 10
- The installer must make sure that the electric system is
grounded in accordance with the law in force.
DANGER.
- Make sure that the electric system has a high-sensitivity
Electric shock risk
breaker I n ≤ 0.03 A.
- Make sure the machine is disconnected from electric
power supply, before performing maintenance operation.
-16-
