36 - English
Installing and removing the PCI or PCIe board
You can install either a PCI or a PCIe board (e.g. display adapter) in your device.
The installation and removal procedure is the same for both types of board.
The illustration below shows a PCIe board.
Installing the board
Board,
You can only install boards with a maximum length of 170 mm.
► Enter the required settings for the board.
► Open the casing (see

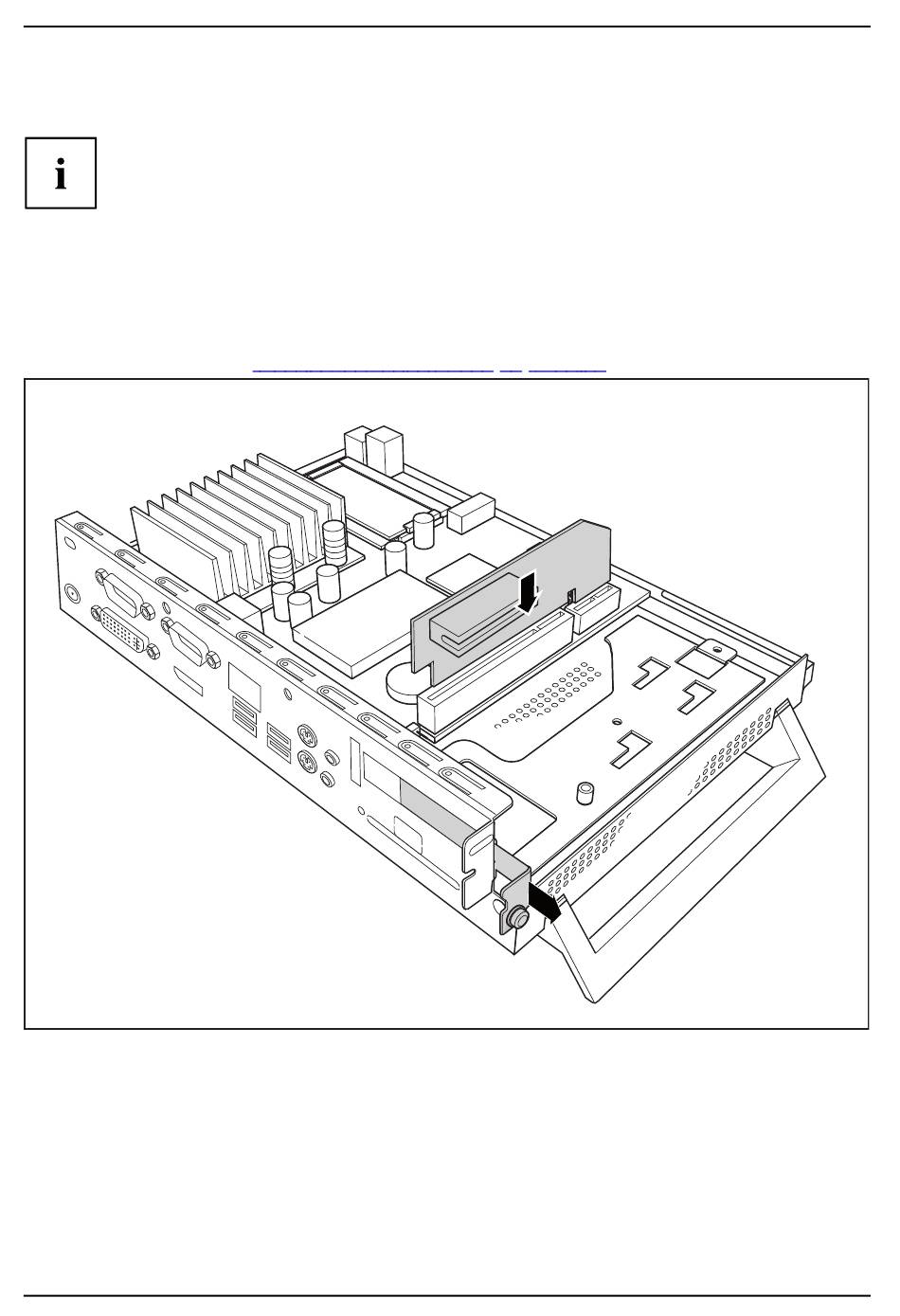

► Insert the riser card in its slot (1).
► Undo the screw (1) and remove the rear slot cover plate of the slot (2).
78
"Opening the casing", Page 20 -
System expansions
English).
1
2
Fujitsu Technology Solutions
