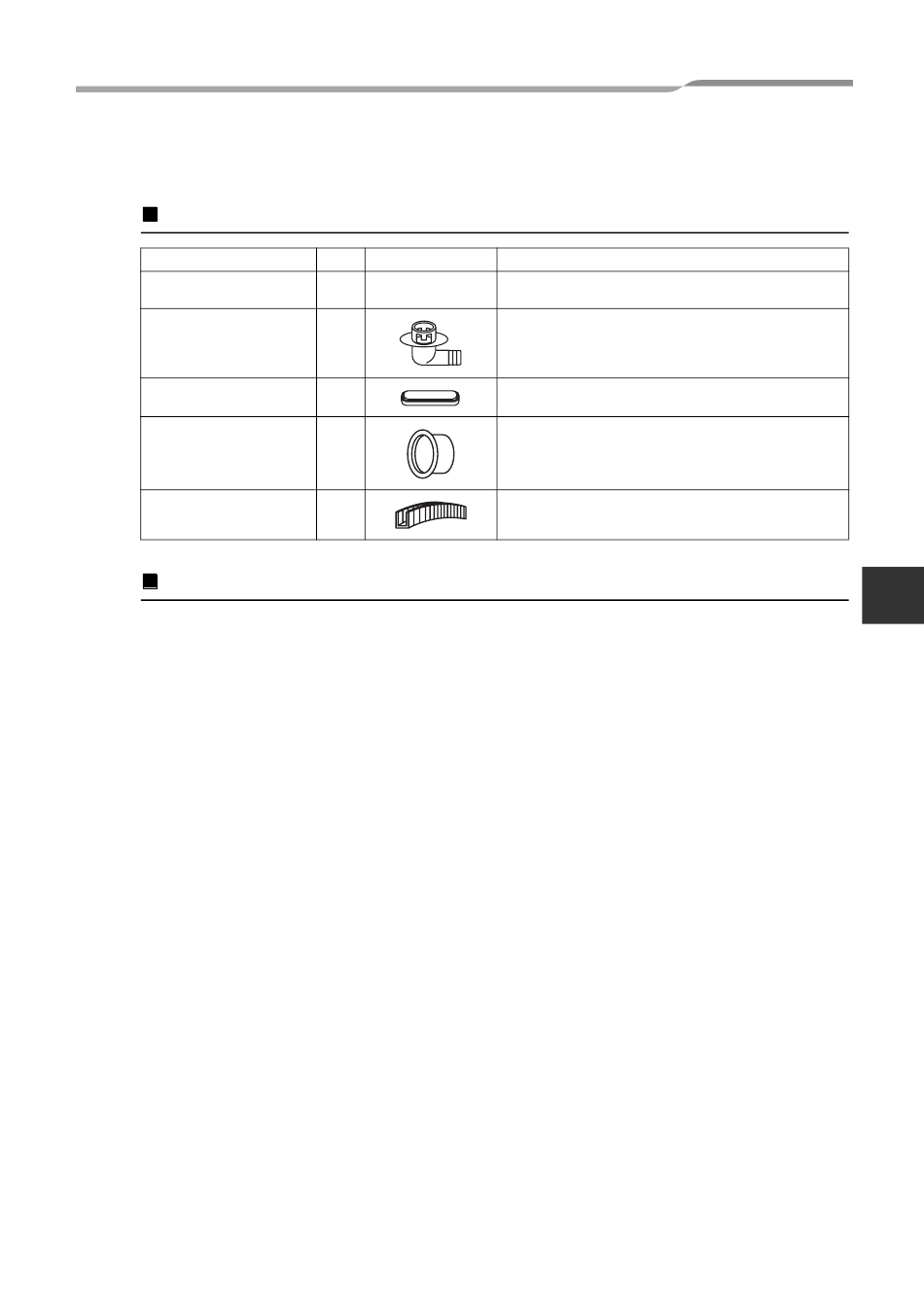

ACCESSORY PARTS AND REFRIGERANT

Accessory parts
Part name
Outdoor unit
Installation manual
Drain nipple
Waterproof rubber cap
Protective bush
Guard material for passage
part

Refrigerant Piping

• Piping kit used for the conventional refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness for Ø9.5 mm.
Use copper pipe with 1.0 mm or more thickness for Ø15.9 mm.
• Flare nut and flare works are also different from those of the conventional refrigerant.
Take out the flare nut attached to the air conditioner, and use it.
Q'ty Shape
1 This manual (Hand this directly to the customer.)
1
5
1 For protecting wires (pipe cover)
1 For protecting passage part (pipe cover)
