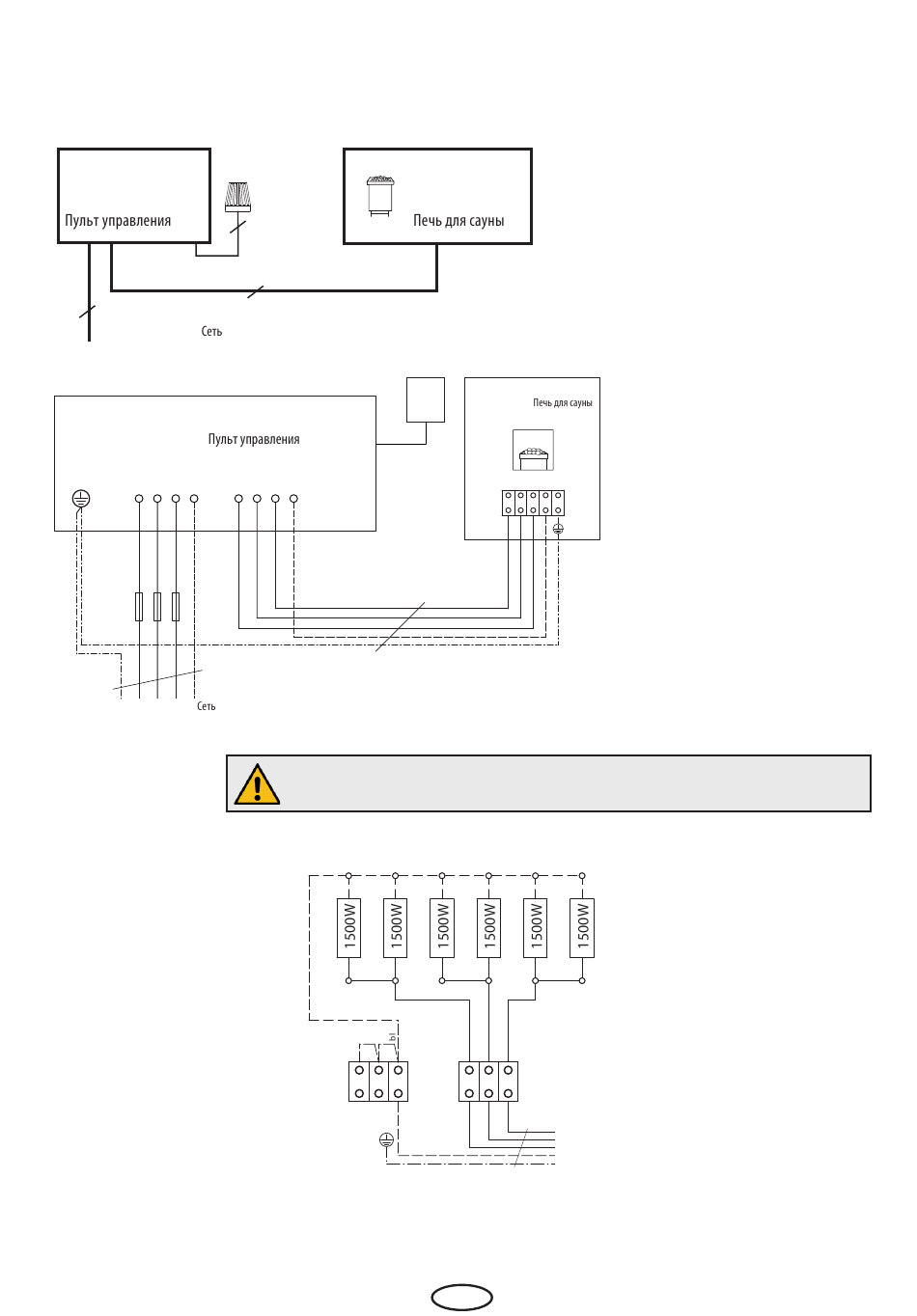

Example of a properly connected sauna system

9,0 kW
Saunasteuergerät
Control unit
Boîtier de commande
5
Netz / Mains / Réseau /
Saunasteuergerät / Control unit /
Boîtier de commande /
L1 L2 L3 N
3x16A
2,5²
Netz / Mains / Réseau /
400 V 3N AC

Internal wiring

9,0 kW
Attention! Make sure to observe the connection plan in the teminal box of the heater.
4
5
W V U N
Caution! Always make certain to include neutral conductor N clamp.
N
N
1
9 kW = 6x 1500 W
Saunaofen
Sauna heater
Poêle de sauna
Saunaofen / Sauna heater
Sensor/
Poêle de sauna /
Limiter
max. 9 kW
U V W N PE (Gr)
1,5²
U V W
9 kW
zum SSG
control unit
mind. 5 x 1,5 mm²
