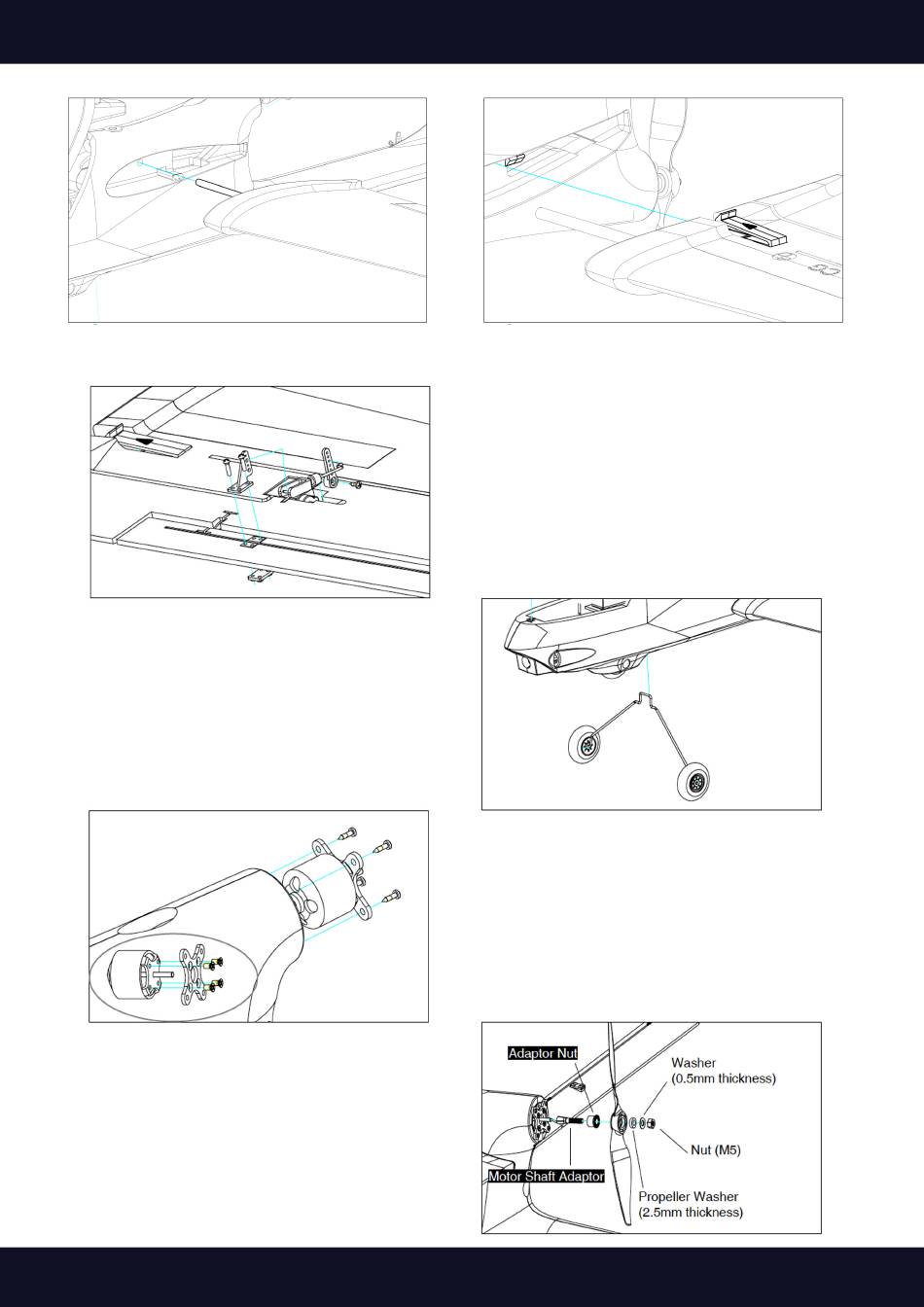

5. Place the tie rod of the wing on one wing, and then
connect the other wing through the hole in the fuselage.
8. Insert the landing gear from below into the fuselage. Pay
attention to the „click" noise.
10. Attach the propeller as shown on the right.
www.modster.at
MODSTER Trainee 1200
6. Secure the wings to the fuselage with the hinge point
plastic parts. Make sure you hear a „click" sound that indicates
a good attachment.
7. Mount the control horns in the designated position on the
wings, secured with 4 pieces PB2 * 12 screws. Then attach
the push rod (40 mm) to the servo on each wing through the
third hole, counted from the servo arm edge with 4 screws
PWA2.3. Attach the clevis to the control horn through the
second hole, which is counted by the horn edge, and tighten
with a rubber ring.
9. Attach the engine to the engine mount with 4 KM3 * 4
screws.
Then secure the engine mount to the fuselage with 4 pcs
PA2.6 * 8 screws as shown.
