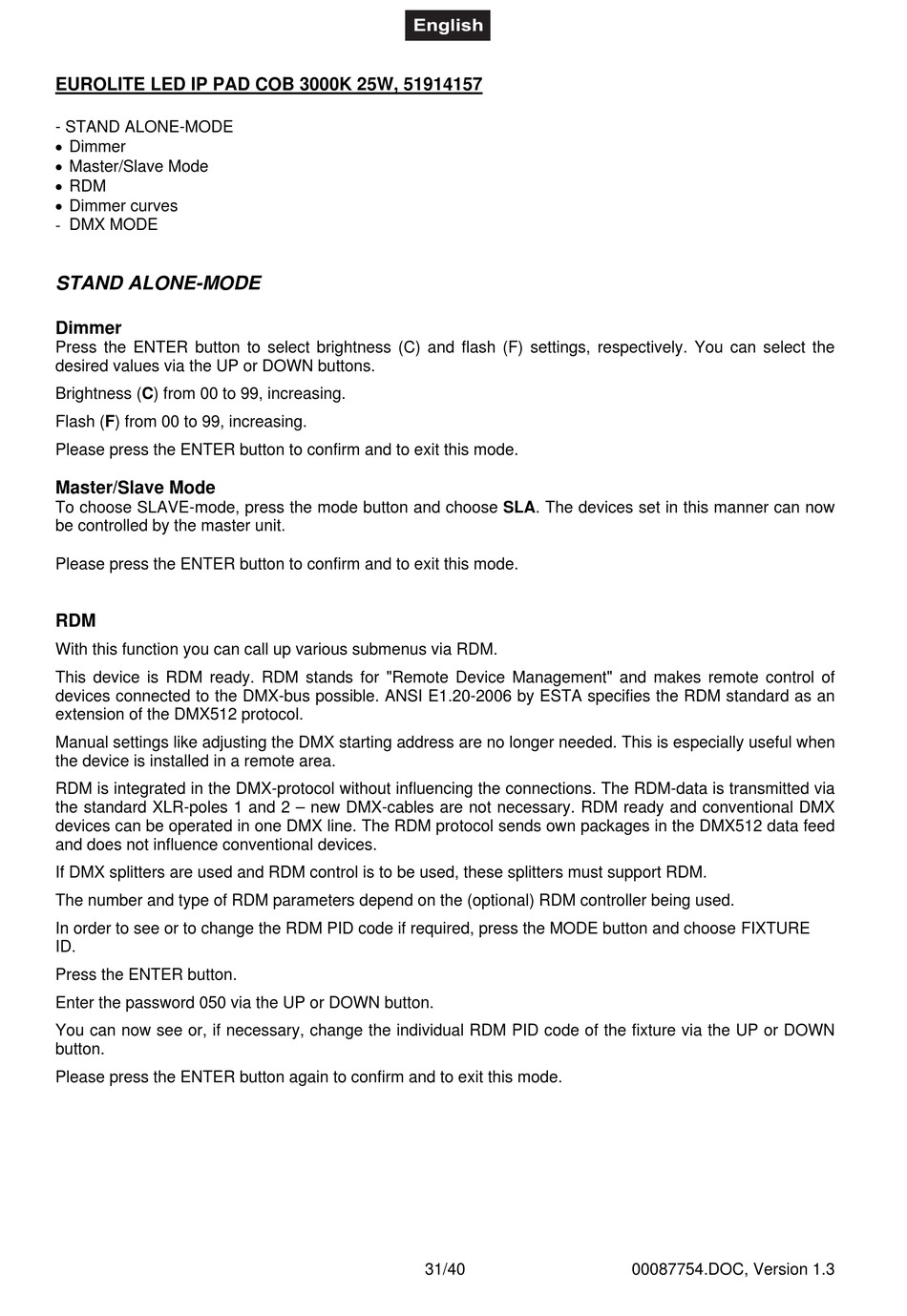

EUROLITE LED IP PAD COB 3000K 25W, 51914157

- STAND ALONE-MODE

 Dimmer
 Master/Slave Mode
 RDM
 Dimmer curves
- DMX MODE
STAND ALONE-MODE
Dimmer
Press the ENTER button to select brightness (C) and flash (F) settings, respectively. You can select the
desired values via the UP or DOWN buttons.
Brightness (C) from 00 to 99, increasing.
Flash (F) from 00 to 99, increasing.
Please press the ENTER button to confirm and to exit this mode.
Master/Slave Mode
To choose SLAVE-mode, press the mode button and choose SLA. The devices set in this manner can now
be controlled by the master unit.
Please press the ENTER button to confirm and to exit this mode.
RDM
With this function you can call up various submenus via RDM.
This device is RDM ready. RDM stands for "Remote Device Management" and makes remote control of
devices connected to the DMX-bus possible. ANSI E1.20-2006 by ESTA specifies the RDM standard as an
extension of the DMX512 protocol.
Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when
the device is installed in a remote area.
RDM is integrated in the DMX-protocol without influencing the connections. The RDM-data is transmitted via
the standard XLR-poles 1 and 2 – new DMX-cables are not necessary. RDM ready and conventional DMX
devices can be operated in one DMX line. The RDM protocol sends own packages in the DMX512 data feed
and does not influence conventional devices.
If DMX splitters are used and RDM control is to be used, these splitters must support RDM.
The number and type of RDM parameters depend on the (optional) RDM controller being used.
In order to see or to change the RDM PID code if required, press the MODE button and choose FIXTURE
ID.
Press the ENTER button.
Enter the password 050 via the UP or DOWN button.
You can now see or, if necessary, change the individual RDM PID code of the fixture via the UP or DOWN
button.
Please press the ENTER button again to confirm and to exit this mode.
31/40 00087754.DOC, Version 1.3
