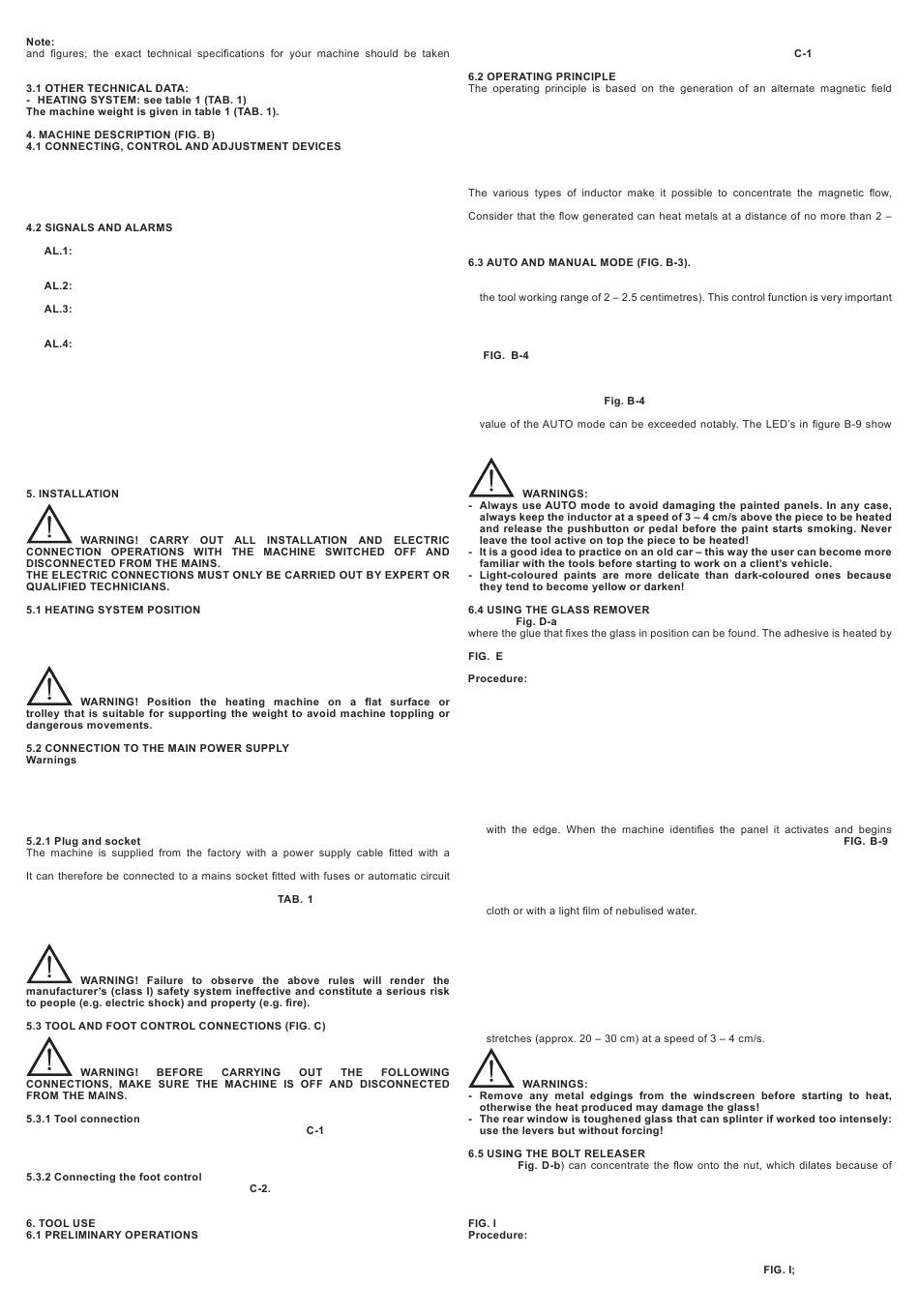

9- Symbols referring to safety regulations.
The rating plate shown is an example to explain the meanings of the symbols
directly from the rating plate on the machine itself.
1- Foot control connection (for all tools).
2- Socket for connecting the various tools.
3- Multifunction key. Selection of "AUTO" or "MANUAL" mode valid for all tools. Keep
the key pressed for 3s to eliminate/activate the acoustic signal.
4- Power percentage adjustment potentiometer (Power %).
5- General alarm LED lit. The display shows the type of alarm:
Safety heat protection alarm. Resetting is automatic. The machine must be taken
to a servicing point as quickly as possible.
Heat limiting device alarm. Resetting is automatic when cooling has ended.
overvoltage alarm. Resetting is automatic if the voltage returns within the permitted
values.
undervoltage alarm. Resetting is automatic if the voltage returns within the
permitted values.
6- Power signalling LED: indicates that the display is showing the power value as a
% (max. 100%).
7- Display: shows the alarms, the tool being used (each time the machine is switched
on) and the Power %.
8- "NO LOAD" signal: the inductor was started far from metal parts, or it is too far
away from the piece (more than 2 cm). Do not start the tool away from metal parts,
especially if the AUTO mode is not enabled!
9- Heating power signalling LED group: the signal increases as the power that is
effectively transferred to the piece grows.
Identify the place where the heating machine is to be installed so that there are no
obstacles that block the cooling air entry and exit vents; make sure at the same time
that conductive powder, corrosive vapours, humidity, etc. are not being sucked in.
Keep at least 250mm of free space around the machine.
- Before carrying out any electrical connection, make sure the rating plate data on the
machine to make sure they correspond to the voltage and frequency of the electric
network available in the installation place.
- The machine must only be connected to a power supply system with neutral
conductor connected to earth.
standard plug (2P + T) 16A/250V
breaker; the corresponding earth terminal should be connected to the earth conductor
(yellow-green) of the power supply line. Table 1 (
delayed fuse sizes, in amps, for the main supply, which have been chosen according
to the maximum rated current output from the heating machine, and to the nominal
power supply voltage.
- Insert the tool connector into the machine outlet (FIG.
Please note: The connector can be inserted into the socket in one direction only!
- Lock the connection using the relative lever.
- Connect the rubber tube as shown in FIG.
- Press the tube well into the outlet to ensure that it is well connected.
Before carrying out any operation with the heating machine, a series of checks must
be carried out with the main switch at "O":
1- Make sure the electric connection has been carried out correctly in compliance
with the instructions given previously.
2- Make sure the heating machine is not damaged. Check the integrity of the power
cable and plug, the inductor cable, insulation, etc.
3- Connect the tool as indicated in the previous paragraph (FIG.
that the inductor concentrates on the metal piece to be heated: "eddy" currents are
generated in the piece, which is heated very quickly. The currents do not circulate
within insulation materials: therefore this system does not heat materials such as
glass, plastic, ceramic, wood, fabric, etc. The inductor generates the eddy currents
in non-magnetic materials such as aluminium, copper, silver, etc. but these materials
are not heated much because of their low electric resistance. The inductor, instead,
generates strong eddy currents in all ferromagnetic materials such as iron, steel, cast
iron, etc. which, because of their high electric resistance, are heated very quickly.
therefore the heat, in different ways according to the use they were designed for.
2.5 cm from the tool, and the closer the inductor to the piece, the more powerful the
heating power.
- AUTO (automatic adjustment): The same heating power can always be transferred
to the piece independently from the distance between the two (but remaining within
especially when heating painted panels in which the temperature must not increase
too quickly to prevent burning the piece.
In the AUTO mode, the safety function that activates the inductor only when the piece
is within the tool working range is always active. In this mode, the potentiometer
(
according to the distance from the panel: the display shows the last % value used
by the machine to keep the effectively transferred heating power constant.
- MANUAL (manual adjustment): The power (as %) that the machine emits can be set
using the potentiometer (
The closer the panel is to the inductor the higher the heating power, and the default
the actual heating power transmitted to the piece ("OK" refers to the default value of
the AUTO mode).
The tool (
conduction until it detaches from the panel, which frees the glass.
concentration of heat can be found at the centre of the tool itself.
1- Remove the visible gaskets and the rubber or metal frames for the glass, so that
the relative plastic wedges can be applied between the glass and the panel.
2- Remove the antenna, the rain sensor, the windscreen wipers and all the
accessories that may be near the glass.
3- Clean the edges of the glass well. If necessary, use a suitable tape to protect
the visible parts of the body near the glass; this avoids scratching the paint while
working.
4- Make sure the protective tape positioned at the base of the inductor is clean and
integral; if necessary apply a new tape to avoid scratching the glass.
5- Set "AUTO" on the heating machine control panel;
6- Position the tool on the glass at a distance from the edges, as shown in FIG. F then
press the pushbutton (or foot control) and move the tool towards and in parallel
emitting a sound, while the LED's illuminate in sequence up to "OK" (
indicating the area where the adhesive may be.
7- Make sure the adhesive is very close to the tool (better if under the tool) using a
probe as shown in FIG. F. If necessary move the tool closer to the edge of the glass
up to a distance of 1-2 cm from the body. If the user is obliged to work with the tool
) shows the recommended
too close to the visible body parts, we recommend cooling the paint with a damp
8- Begin from one corner of the glass, positioning the tool parallel to the edge at the
previously indicated distance from the body. Press the pushbutton and immediately
move the tool forward and backward over a surface of about twenty centimetres,
trying to follow the position of the glue as shown in FIG. G.
9- Slightly lift the corner of the glass, without forcing it, using the appropriate plastic
lever and at the same time push the corner with the hand from inside the vehicle.
As soon as the glass rises, insert the lever to maintain the position. If the glass has
not lifted, use the inductor to heat the area again, creating light traction with the
plastic lever.
10- Continue detaching the rest of the glass in the same way, covering small rectilinear
).
The tool (
heat and tends to separate from the screw, eliminating any rust or glue that may be
present. In this manner the nut that was blocked before can now be unscrewed.
The tool can be used to unscrew rusty nuts, to remove pins from doors and in general
to concentrate heat on small metal parts.
1- Hold the tool by its handle;
2- Set the AUTO mode;
3- Place the pole jaws on the faces of the nut as shown in
4- Activate the tool using the foot control for a few seconds and try to keep a short
- 6 -
) is disabled because the machine automatically sets the adjustment
); the display shows the selected value.
) can remove glass from vehicles by heating the edges of the panel
shows the glass remover and the heat points on the panel: the highest
shows the heat points on the nut.
).
)
