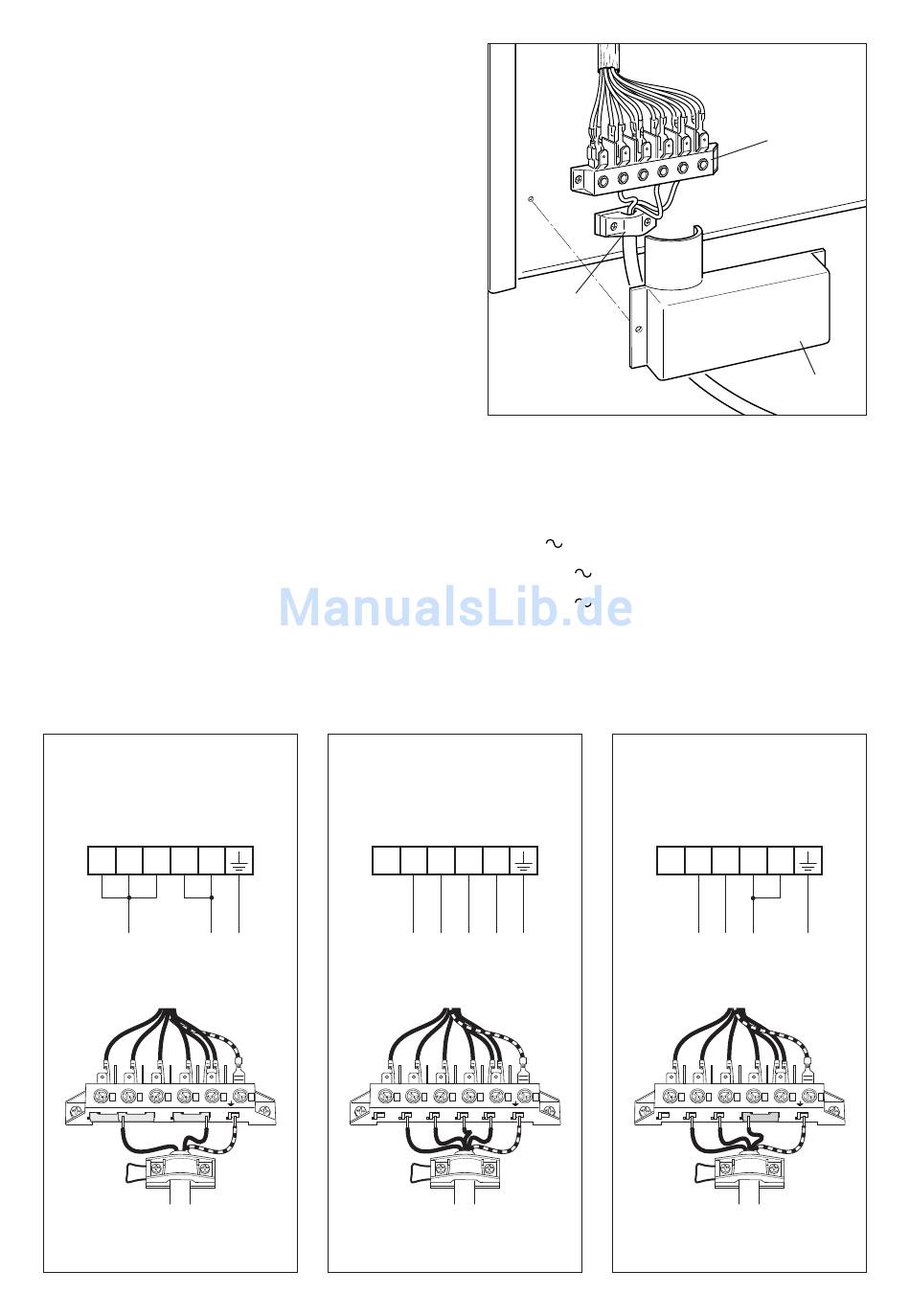

CONNECTING THE FEEDER CABLE
To connect the feeder cable to the cook-
er it is necessary to:
– Remove the two screws that hold
shield A behind the cooker.
– Open completely the cable clamp D.
– Position the U bolts onto terminal
block B (fig. 10.1) according to the
diagram in fig. 10.2a, 10.2b, 10.2c.
– Insert the feeder cable into the cable
clamp D. The supply cable must be of
a suitable size (see the section
"Feeder cable section").
– Connect the phase and earth cables
to terminal B according figures 10.2a,
10.2b, 10.2c.
– Pull the feeder cable and block it with
the cable clamp D.
– Re-mount shield A.
N.B. The earth conductor must be left
about 3 cm longer than the others.
230 V~
3 5
1 2 4
N
L
1
(L
1 2 3 4 5
N(L )
2
L1
Fig. 10.2a
1
PE
)
2
1
PE
Fig. 10.2b
D
Fig. 10.1
FEEDER CABLE SECTION
Type "HO5RR-F"
230 V
400 V 2N
400 V 2N
(*) – Connection with wall box connection
400 V 2N~
3 5
2 4
L L N N PE
1 2 1 2
2 3 4 5
L2 N1 N2
L1
PE
B
2
3 x 2,5 mm (*)
2
5 x 1,5 mm (*)
2
4 x 1,5 mm (*)
400 V 2N~
3 5
1 2 4
L L N PE
1 2
1 2 3 4 5
L2 N
L1
Fig. 10.2c
A
PE
