4.3. Electrical installation:

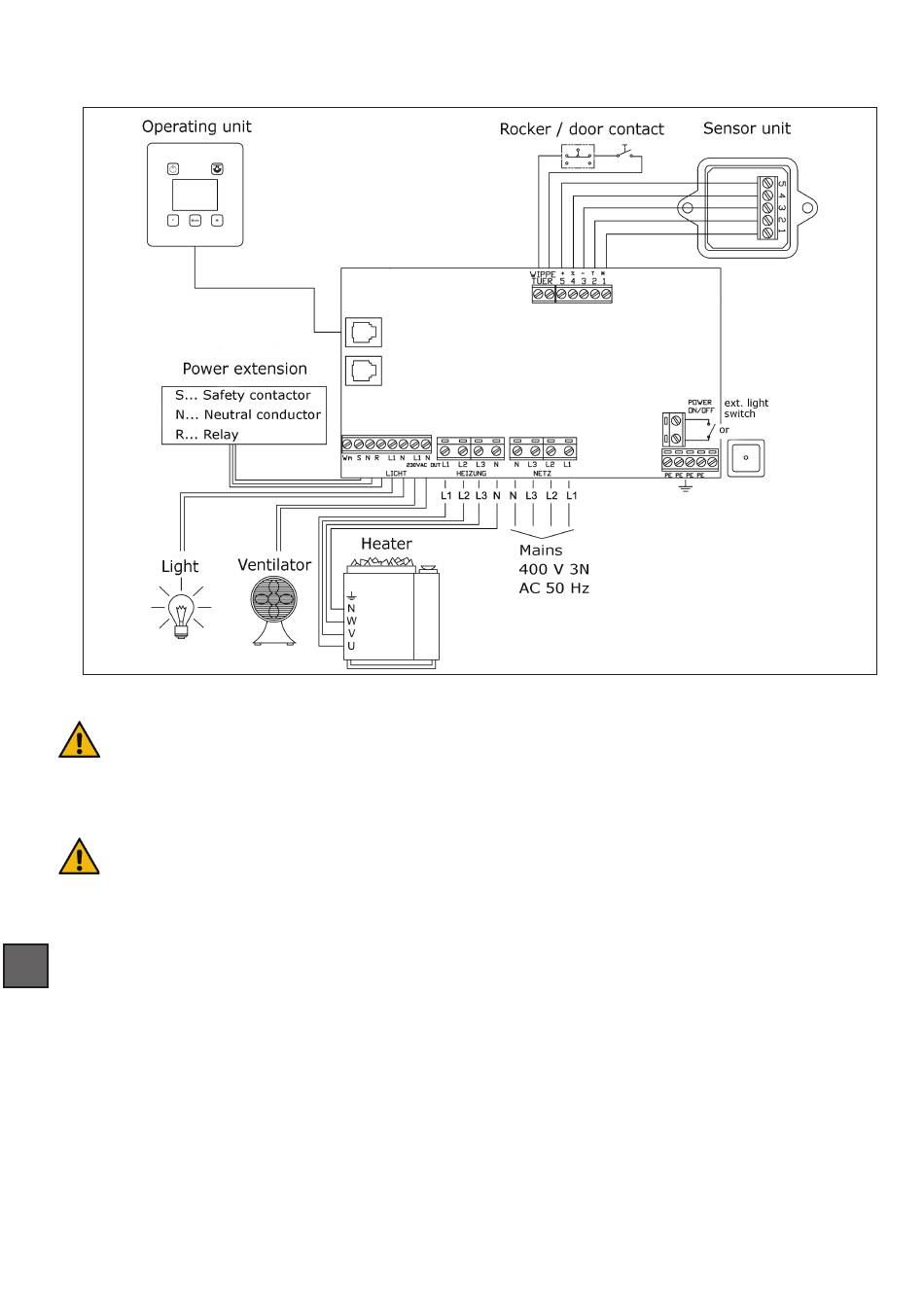

Connect the controls according to the following instructions for electrical installation (Fig. 5).
Fig. 5
Attention: The power unit must be installed by an authorised electrician only, under observation of the
relevant guidelines.
All electrical connection cables installed inside the sauna cabin must be suitable for an ambient
temperature of at least 170 °C. Furthermore, the controls must be connected to a fixed mains outlet only.
Note: If a preselection function or remote start is used, a door contact switch or disconnecting rocker
(cover protection system) must be used according to the standards EN 60335-1 or EN 60335-2-53.
This door contact switch or disconnecting rocker is connected to the terminal "rocker/door" (if both are
used, they must be connected in series).
Opening the sauna door or pressing the disconnecting rocker during the enabled preselection function will
deactivate preselection (according to the standards EN 60335-1 and EN 60335-2-53).
EN
In order to use the preselection function again after opening the door or pressing the disconnecting rocker,
it must be activated again.
