Mounting the Switch

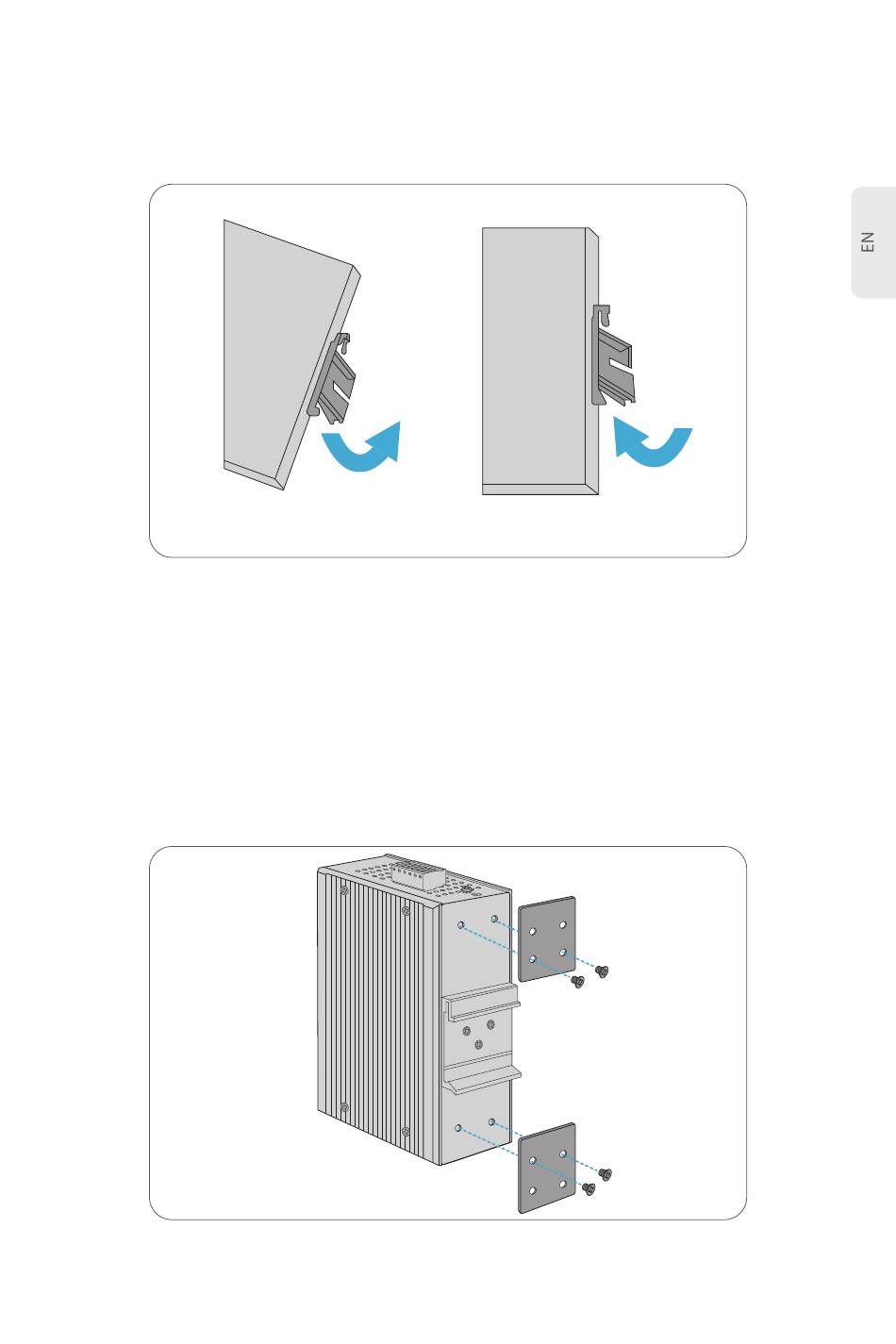

DIN-Rail Mounting

Mounting the unit Releasing the unit
1. Position the unit in front of the DIN-Rail and hook the mount bracket over the top of the rail.
2. Rotate the switch downward towards the rail to lock it into place. You will know it is secure when
you hear the click.
3. To remove the unit, pull down to clear the bottom of the DIN-Rail and rotate away from the rail.

Wall Mounting

Screw on the mounting bracket on the switch with M3 screws.
