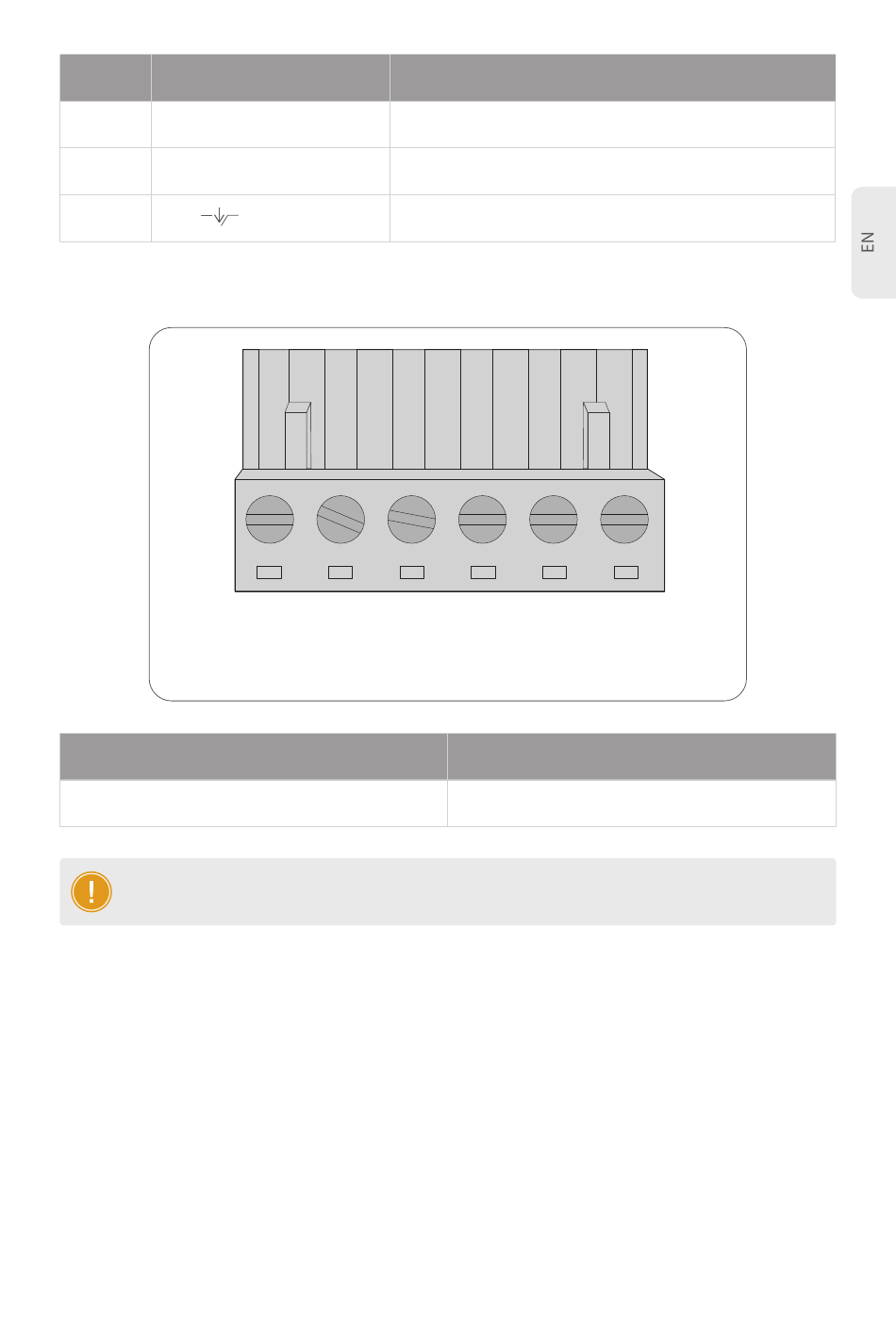

FS IES3110-8TF Schnellstartanleitung Seite 8

No. Name
1 V1+, V2+
2 V1-, V2-
3
2. Tighten the wire-clamp screws for preventing the wires from loosening.
Positive (+) Pin
Pin 1 / 5
NOTE:
The wire gauge for the terminal block should be in the range from 12 to 24 AWG.
1 2 3
V1+ V1-
PWR1
Description
Live line/Positive
Null line/Negative
Requiring good ground connection
4 5
V2+
PWR2
Negative (-) Pin
6
V2-
Pin 2 / 6
