7.3 Reassembling the transmitter housing, compact version
7.4 Standard transmitter
NOTICE
Poor measuring performance!
If the grounding switch is in the wrong position, this impacts the measuring performance!
‣
Check that the grounding switch is in the correct position and correct if necessary!
1 →
‣

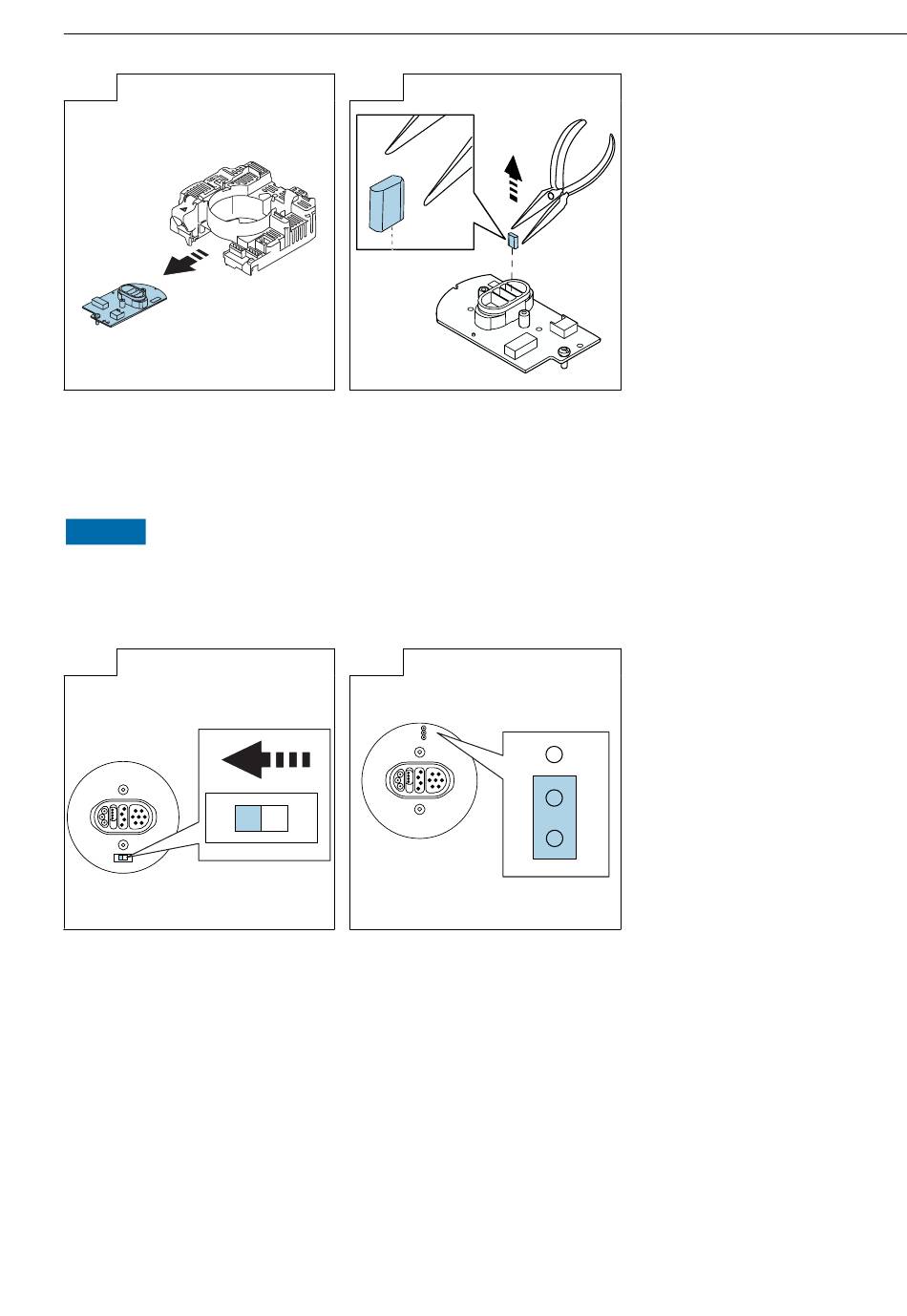

Version A: If a grounding switch
is provided on the ISEM: set the
grounding switch of the ISEM to
the "left" position (closed).
Endress+Hauser
10
2
‣
Version B: If a jumper is
provided on the ISEM: plug in
the jumper for the ISEM
grounding setting on the inside
(closed).
EA01098D
