Endress+Hauser Promag 400 Index C Installationsanleitung Seite 8

EA01098D
7.2 Replacing the connection board
Using a flat-nose pliers, take the S-DAT (see Fig. 10 below) out of the connection board
that has been removed, store the S-DAT in a safe place and insert it into the amplifier
board before reassembly.

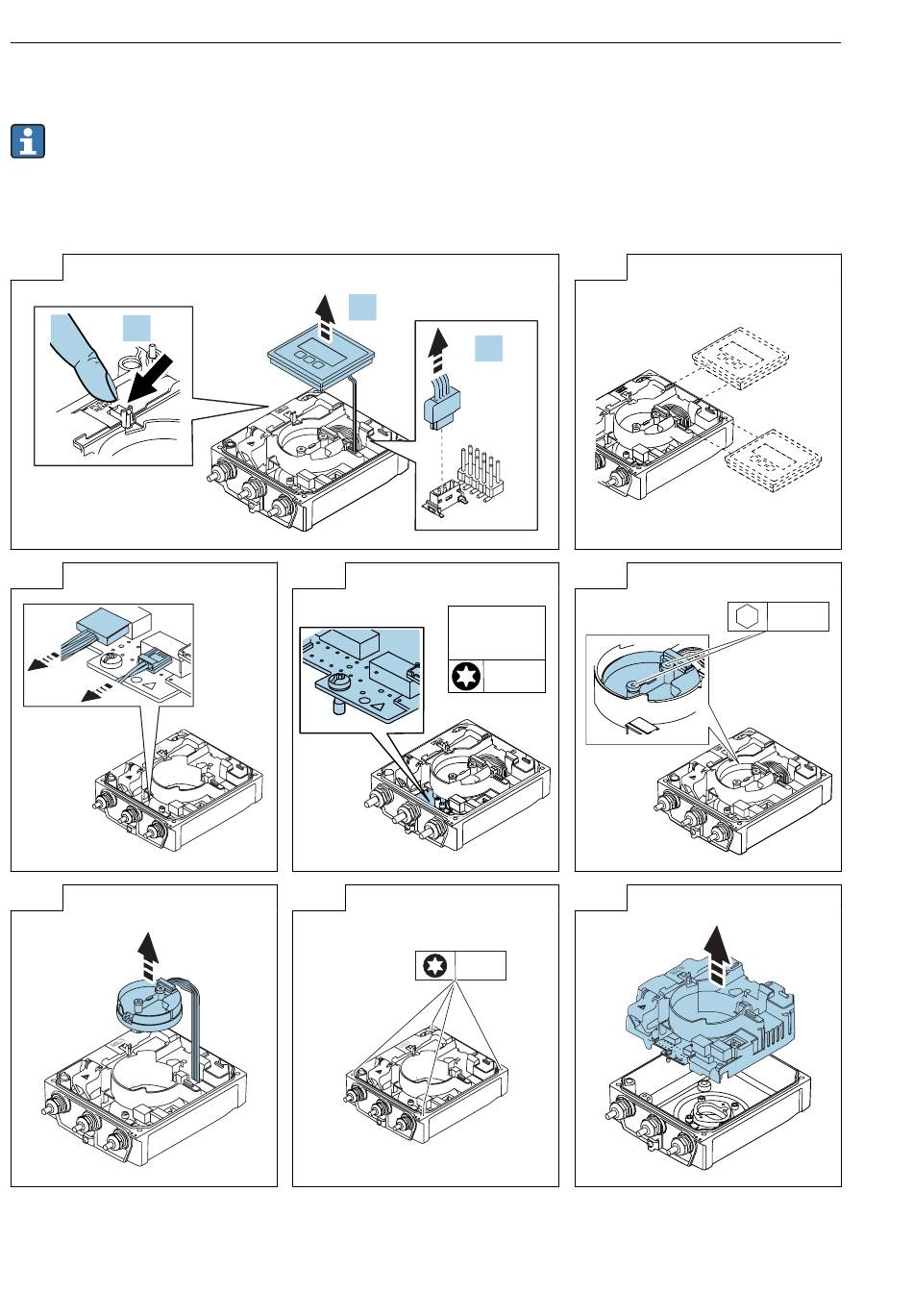

Proceed as described in Section 7.1 and as illustrated in the diagrams below.
1 →
1.
3 →
6 →
8
2.
4 →
1.5 Nm
(1.1 lbf ft)
7 →
T20
2 →
3.
5 →
T20
8 →
3 mm
