7.6
Additional information on reassembling the transmitter hous-
ing, compact version

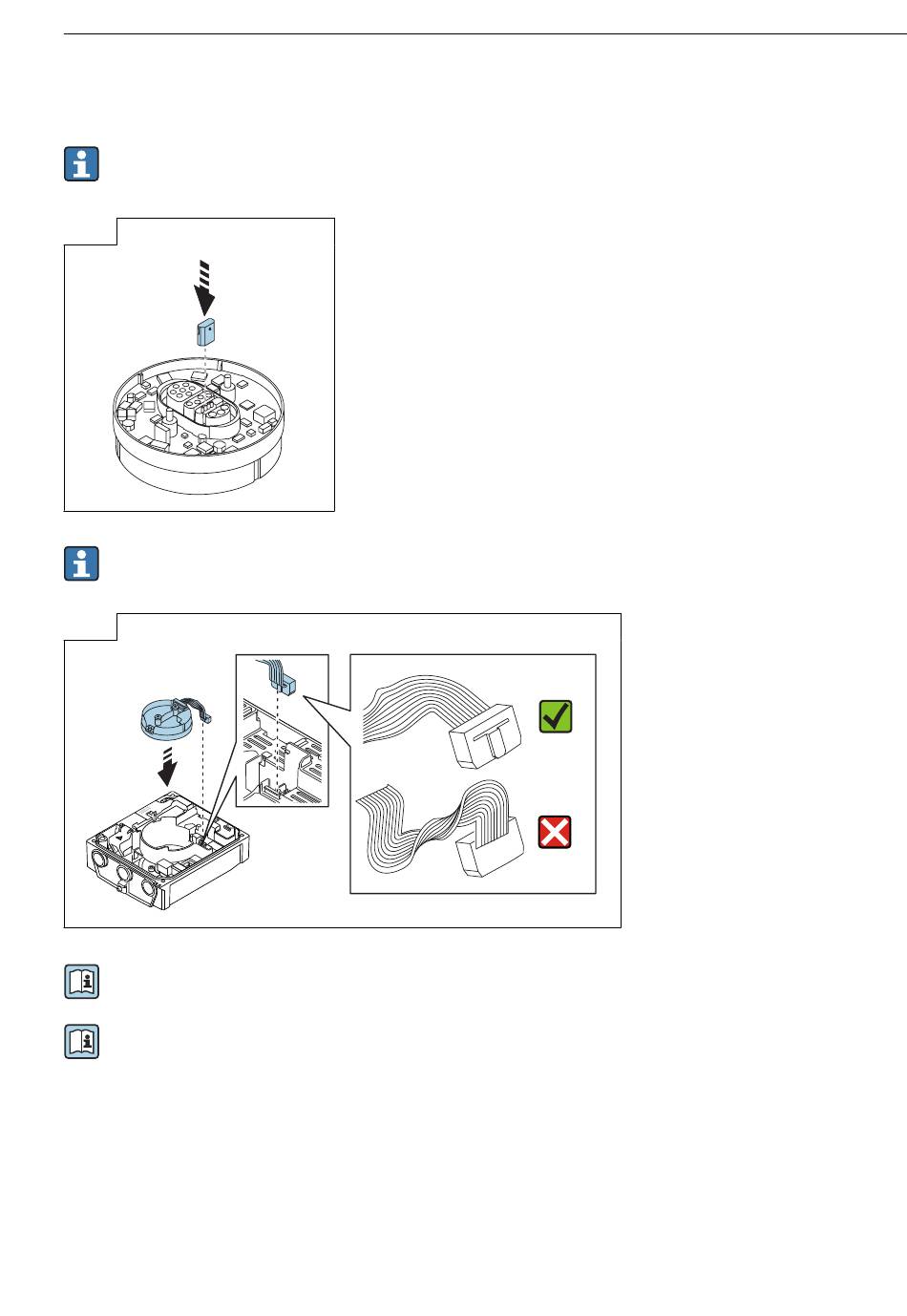

Before reassembly, insert the S-DAT which you removed into the amplifier board (Fig. 1
below).
1
Make sure that the plug of the ISEM (graphic 1 below) is plugged in correctly.
1
For detailed information on the electrical connection, see the "Electrical connection"
section of the Operating Instructions for the device.
For detailed information on commissioning, see the "Commissioning" section of the
Operating Instructions for the device.
