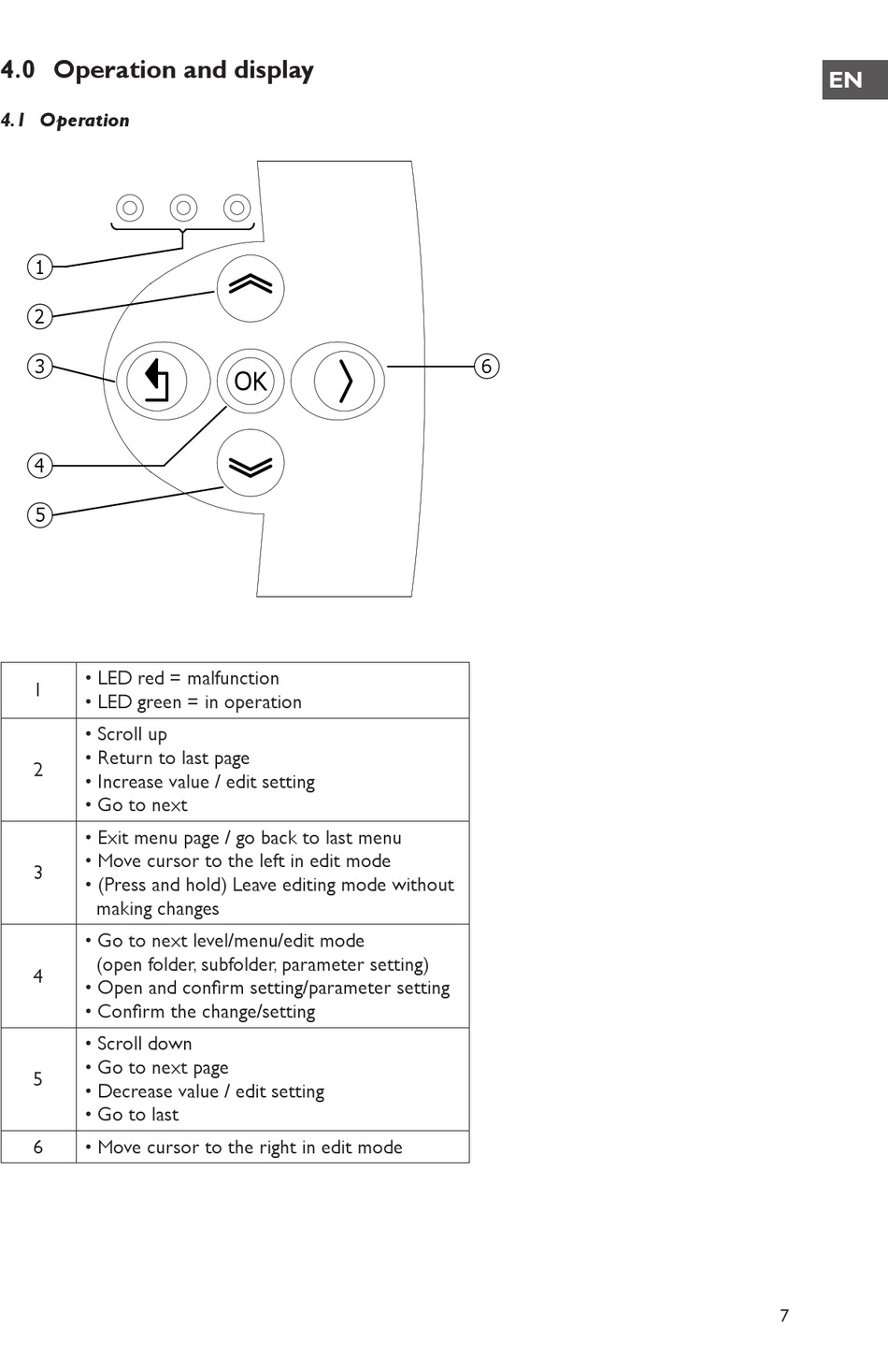

4.0 Operation and display

  
4.1 Operation






• LED red = malfunction

1
• LED green = in operation
 
 
• Scroll up
• Return to last page
2
• Increase value / edit setting
• Go to next

• Exit menu page / go back to last menu

• Move cursor to the left in edit mode

3
• (Press and hold) Leave editing mode without

 making changes
• Go to next level/menu/edit mode
(open folder, subfolder, parameter setting)
4

• Open and confirm setting/parameter setting

• Confirm the change/setting
• Scroll down
• Go to next page
5
• Decrease value / edit setting
• Go to last
6 • Move cursor to the right in edit mode
  













  


  











