Connection Schematics

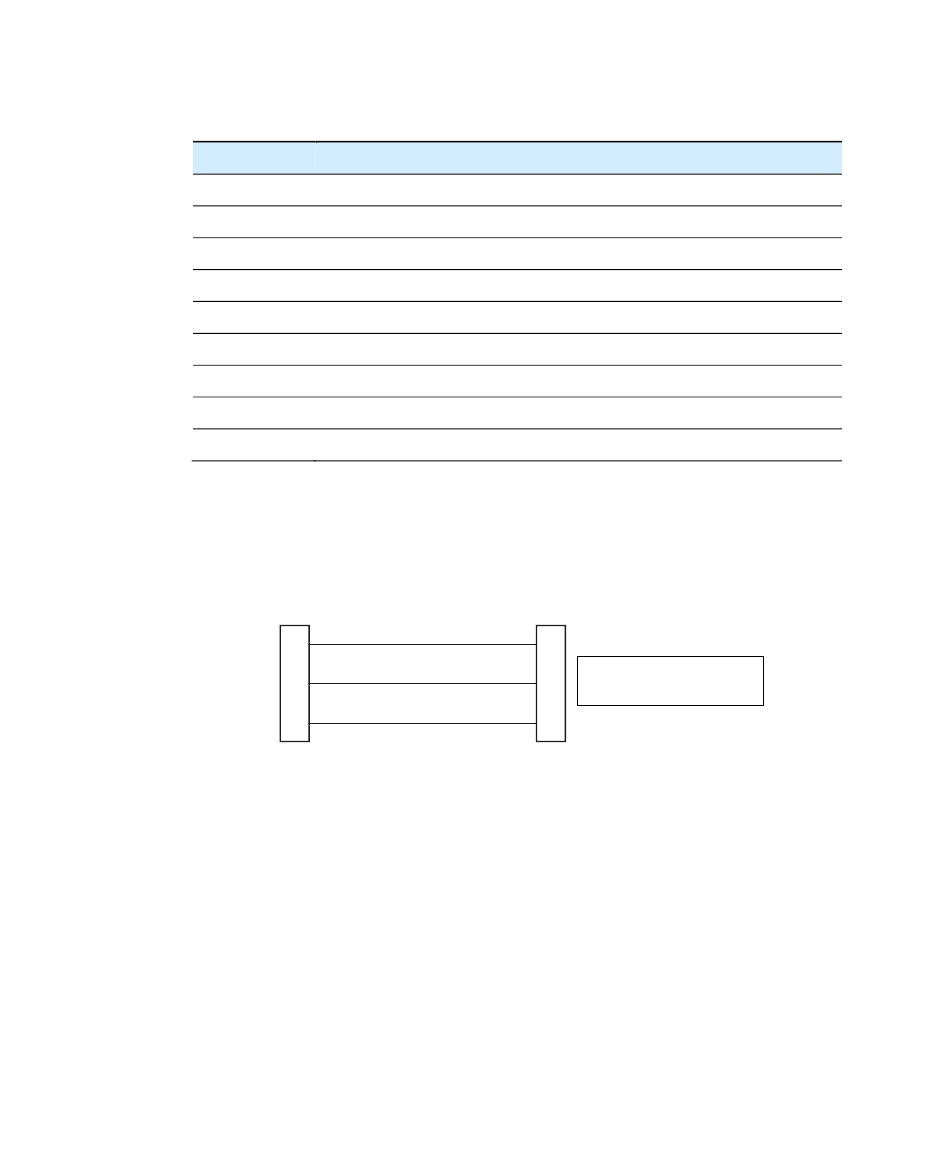

Figure 100 RS – 232 Connection
262
Signal name
+5 V (OUT)
TX (RS232)
RX (RS232)
Not used
GND
A + (RS485)
Not used
B - (RS485)
RESERVED
5
2
PC
3
5
Remote Controller
2
3
