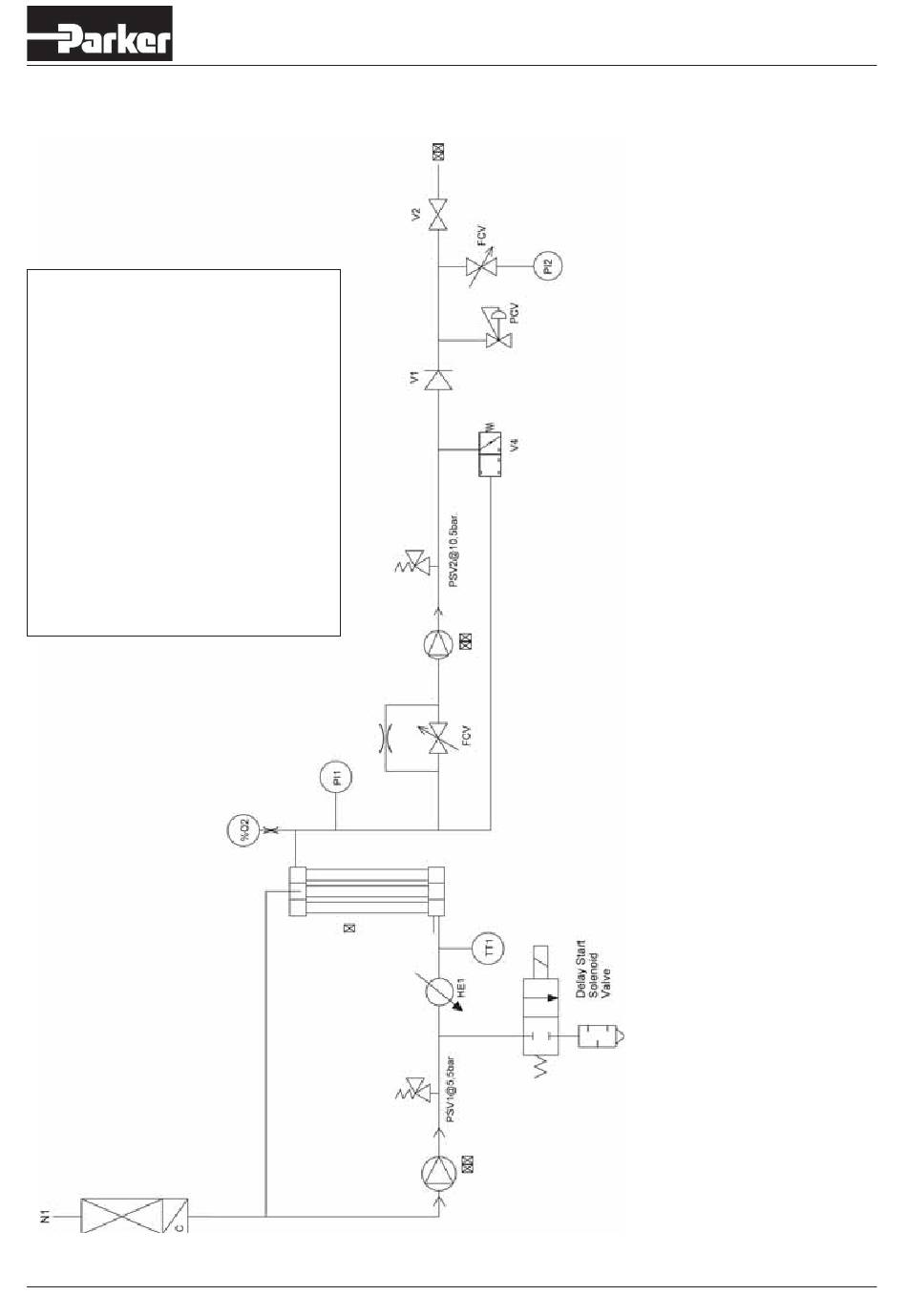

Process scheme

N1 Air inlet
N2 Nitrogen outlet
C Inlet carbon adsorber
LP Air compressor
RKV Start-up valve
M Gas separation membrane
PI1 Membrane pressure indicator
FCV Flow control valve
HP Nitrogen compressor
PCV Nitrogen pressure relief valve
PSH Pressure switch
PI2 Nitrogen pressure indictor
V1 Non-return valve
N2 Nitrogen outlet
V2 Ball valve
V4 Depressurisation valve
