Information about this manual

Read these instructions carefully before starting to use your Home-
Matic components.
Keep the manual handy so you can refer to it at a later date! If you
hand over the device to other persons for use, please hand over the
operating manual as well.
Symbols used:
Attention!
This indicates a hazard.
Note.
This section contains additional important information!
2

Hazard information

Do not open the device: it does not contain any
components that need to be serviced by the user. There is a
risk of electric shock if the device is opened.
The device may only be operated indoors and must be
protected from the effects of damp and dust, as well as
solar or other methods of heat radiation.
Intended use
The HomeMatic radio-controlled sensor for carbon dioxide
measures carbon dioxide content in the air. As soon as the
CO content exceeds a defined level, a switching command
2
is sent out.
Using the device for anything other than its intended
purpose will invalidate all warranty and liability claims. This
also applies to any conversion or modification work.
14
3

Function

The radio-controlled sensor for carbon dioxide is used to
measure the CO content in a room. The sensor is located in an
2
adapter housing and runs on the mains power supply. As soon as
the CO content exceeds a defined level, a switching
2
command is sent to taught-in HomeMatic actuators. The CO
content continues to be measured; a second switching command is
sent accordingly after 20 minutes and 10 minutes respectively. The
following example illustrates the process.
Example:
If the air quality sensor for CO
2
directly on a WinMatic, for example, when the sensor sends a
switching command on account of the high CO
Matic will open the window for 20 minutes to ventilate the room.
Should the CO content in the air drop after this time (in other words,
2
if the air becomes fresher), the WinMatic will close the window
automatically. If the air does not improve after the first 20 minutes of
ventilation, the window will be kept open for a further 10 minutes.

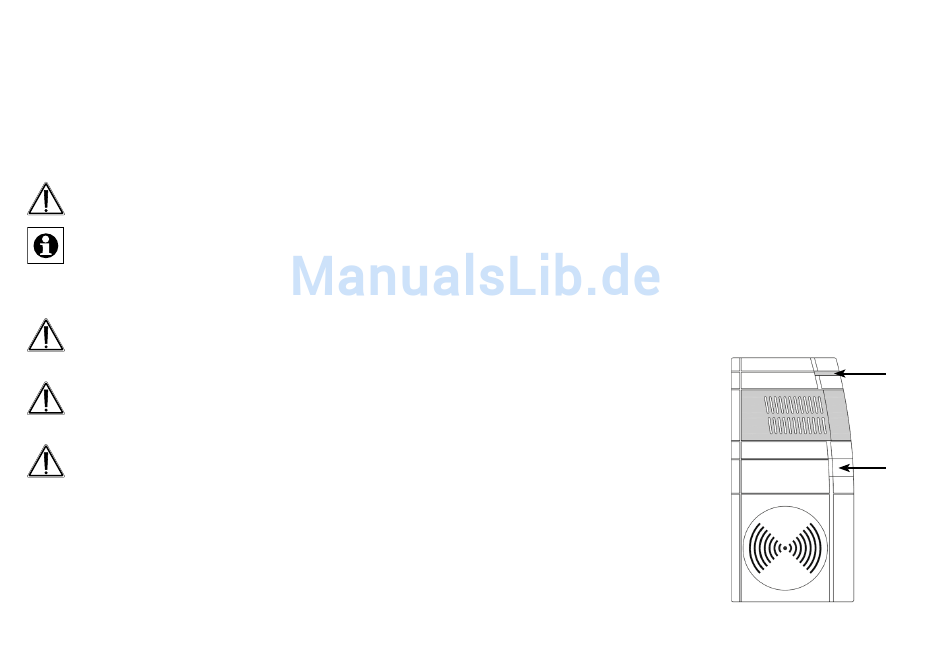

A Device LED
B Teach-in button
2
measurement has been taught-in
content, the Win-
2
A
B
