Operation instructions | UIM 1-00 | Universal Input Modulator

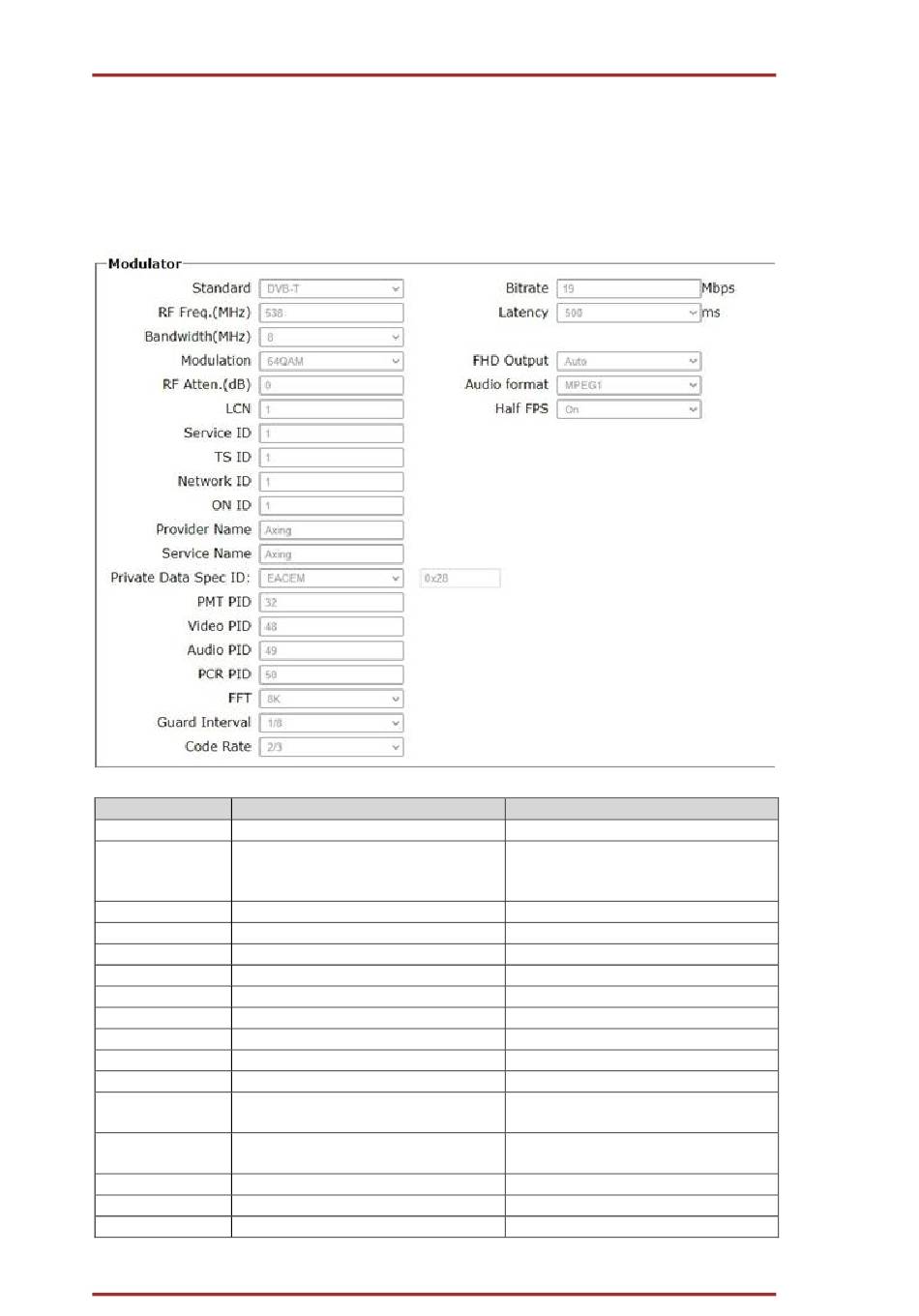

4.3. Modulator

èUnder Modulator, select either DVB-C or DVB-T as the output standard and enter the necessary
parameters (such as RF frequency, modulation, etc.).

4.3.1. Standard = DVB-T

Parameter Range
Standard DVB-T
RF Freq. (MHz) 100 ... 950
Bandwidth (MHz) 6, 7, 8
Modulation QPSK, 16QAM, 64QAM
RF Attenuation (dB) 0 ... 30
LCN 1 ... 1023
Program Number 1 ... 65535
TS ID 1 ... 65535
Network ID 1 ... 65535
ON ID 1 ... 65535
Provider Name Up to 15 alphanumeric characters
Service Name Up to 15 alphanumeric characters
Private Data Spec ID Australian TTN, EACEM, FreeView (NZ), ITC,
Nordic, other
PMT PID 32 ... 8190
Video PID 32 ... 8190
Audio PID 32 ... 8190
Page 14 of 20 AXING-BA_UIM-1-00.pdf | Technical improvements, changes in design, printing and other errors reserved. | 2021-11-03
Comment
Enter the centre frequency of a DVB-T
channel. You must select a free channel in
your TV network.
Reduces the output level by 0 to 30 dB.
You must select a free LCN.
The service name appears as the
programme name on the TV set.
