3. Layout, Connections & Jumper Settings

3.3 Jumper Settings

The EX-1183HMVS-2 will be delivered with the setting Bus-Power.
cut the power at the data line.

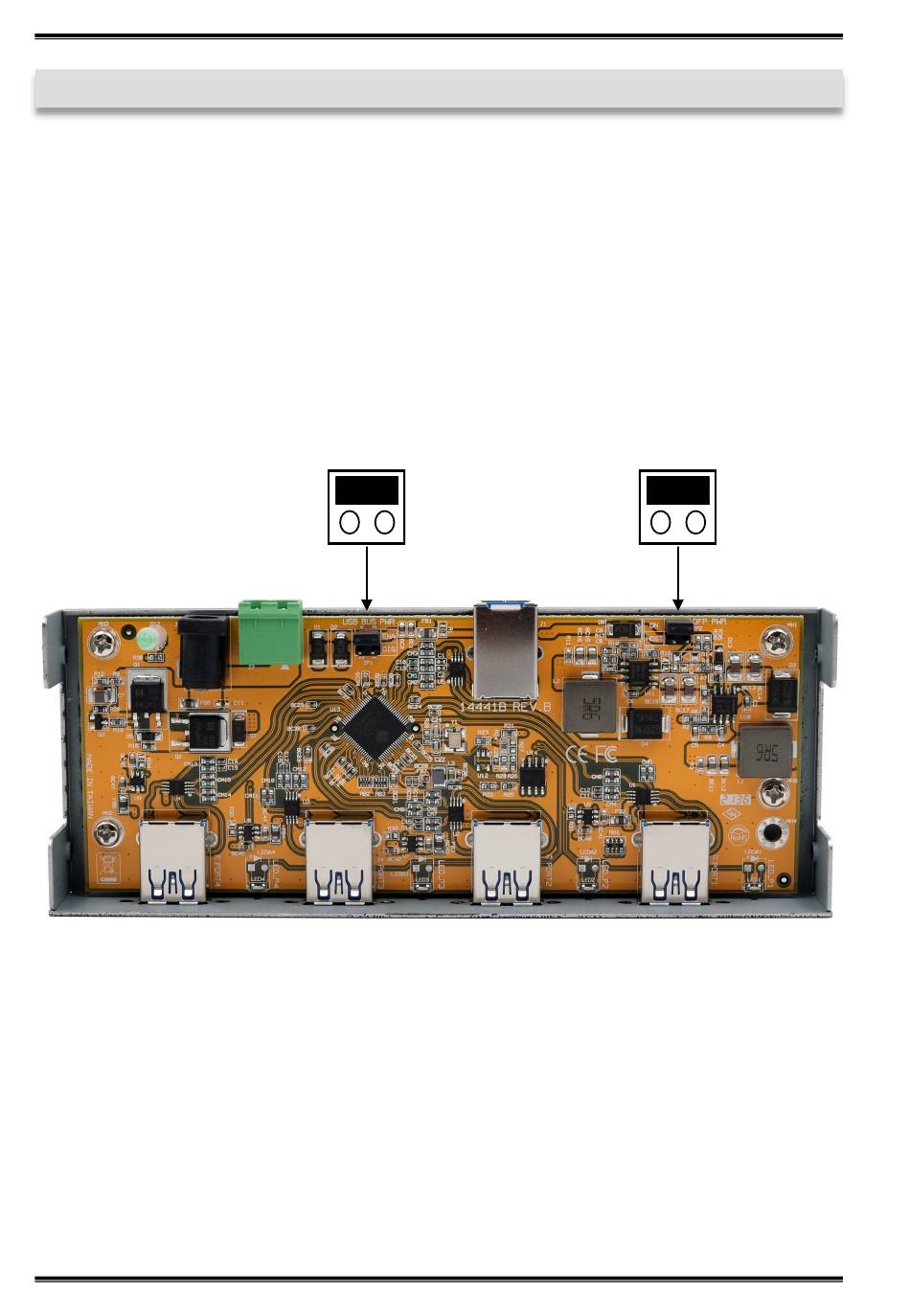

Then you must set the jumper JP1 from ENA (Enable) to DIS (Disable). See the following picture.
Attention! Only with connected Power Supply! Furthermore, you have the option to leave power
on the DFP (Downstream Facing Ports) only when the hub is connected to the host PC and the
host PC is switched on. For this you have to set the jumper JP2 to "HOST". If JP2 is set to "ON",
there is continuous power on the downstream ports. See the following picture.
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
For this you open the case with the four screws on both sides.
JP1
ENA
DIS
12
EX-1183HMVS-2
But you have the possibility to
JP2
ON
HOST
