2.2

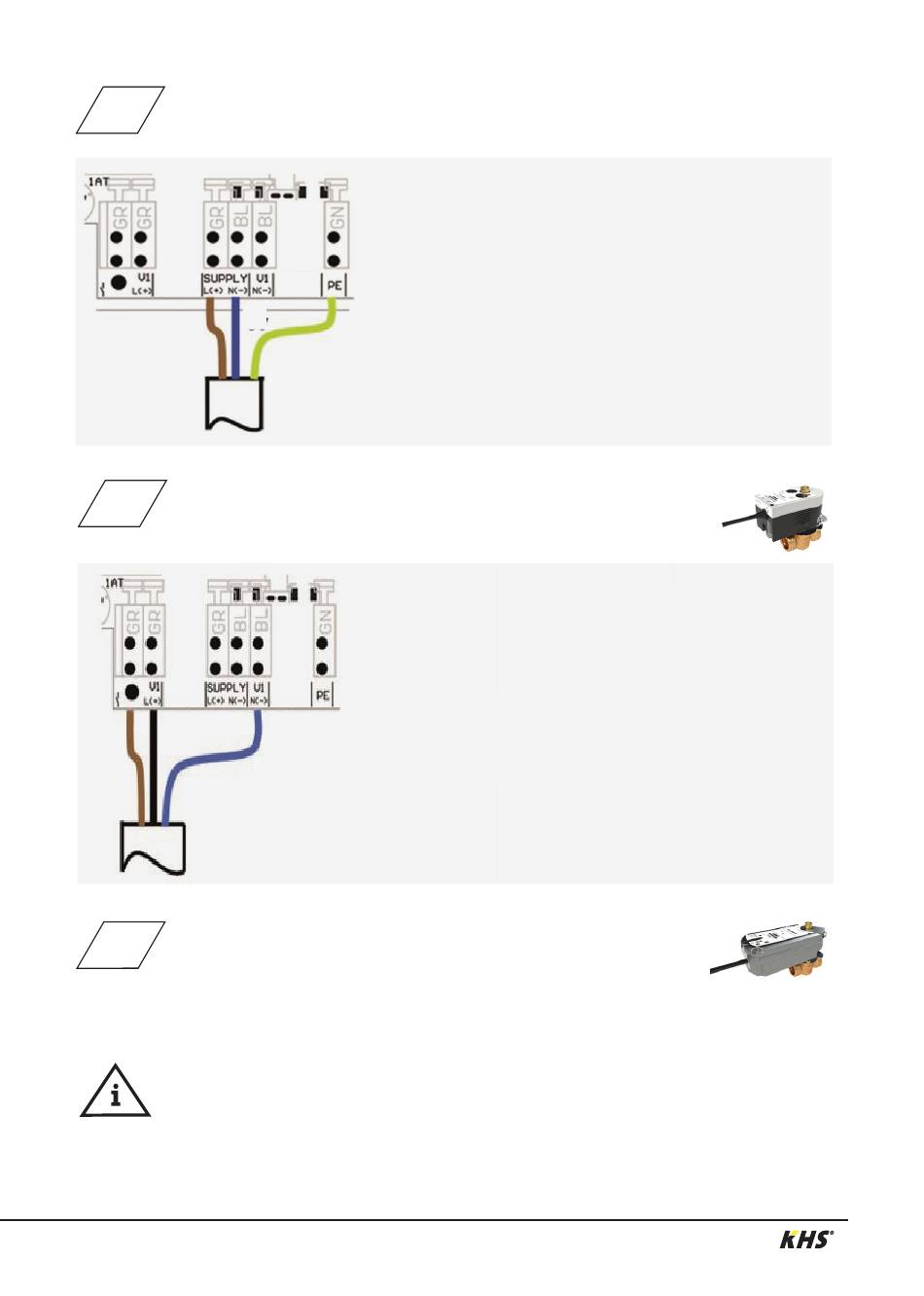

Connection of power supply terminals
L N
Connection quarter turn stop valve with servo drive
2.3
Figure 686 04
BN BK
Connection quarter turn stop valve with spring-
2.4
reset servo drive Figure 686 05 | 685 15 | 684 04
Note! When using the spring-reset servo drive as the flushing valve, the
control in menu System parameter > Drive > Spring drive 230V must be set!
26 / 32 – K410068602012-00 / 11.2021 – © www.kemper-olpe.de
PE
BN = brown
BU
BK = black
BU = blue
Power supply: 230 V AC 50/60 Hz
Own power: Control 3 W +
consumption flushing valve(s)
pos. 1 (L), 2 (N), 3 (PE)
Connection: Screwless terminals, L, N, PE
Line fuse: max. 16 A
Connection of valve V1
Terminal item 4, 5 and 6
