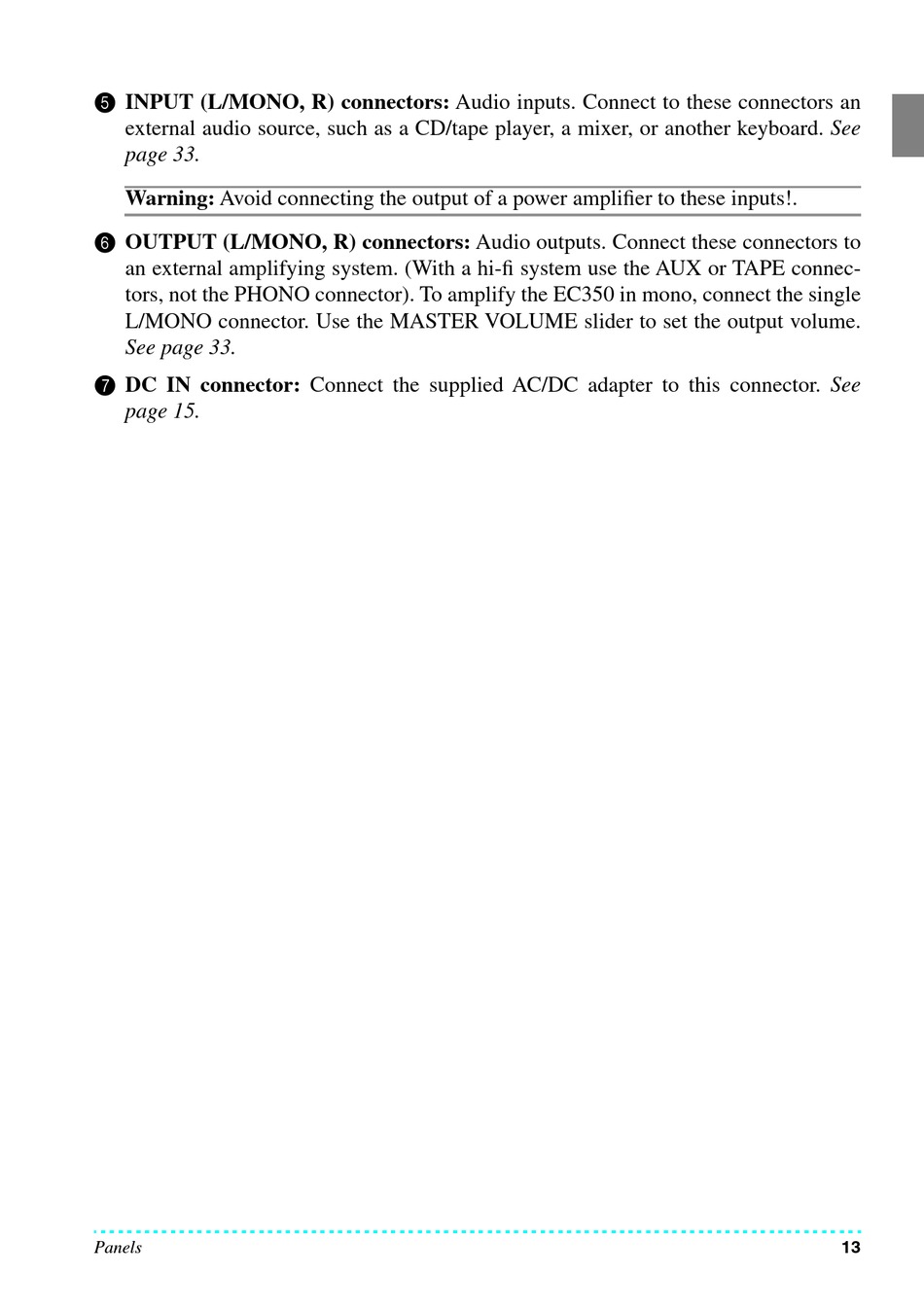

5 INPUT (L/MONO, R) connectors: Audio inputs. Connect to these connectors an
external audio source, such as a CD/tape player, a mixer, or another keyboard. See
page 33.
Warning: Avoid connecting the output of a power amplifier to these inputs!.
6 OUTPUT (L/MONO, R) connectors: Audio outputs. Connect these connectors to
an external amplifying system. (With a hi-fi system use the AUX or TAPE connec-
tors, not the PHONO connector). To amplify the EC350 in mono, connect the single
L/MONO connector. Use the MASTER VOLUME slider to set the output volume.
See page 33.
7 DC IN connector: Connect the supplied AC/DC adapter to this connector. See
page 15.
Panels
13
