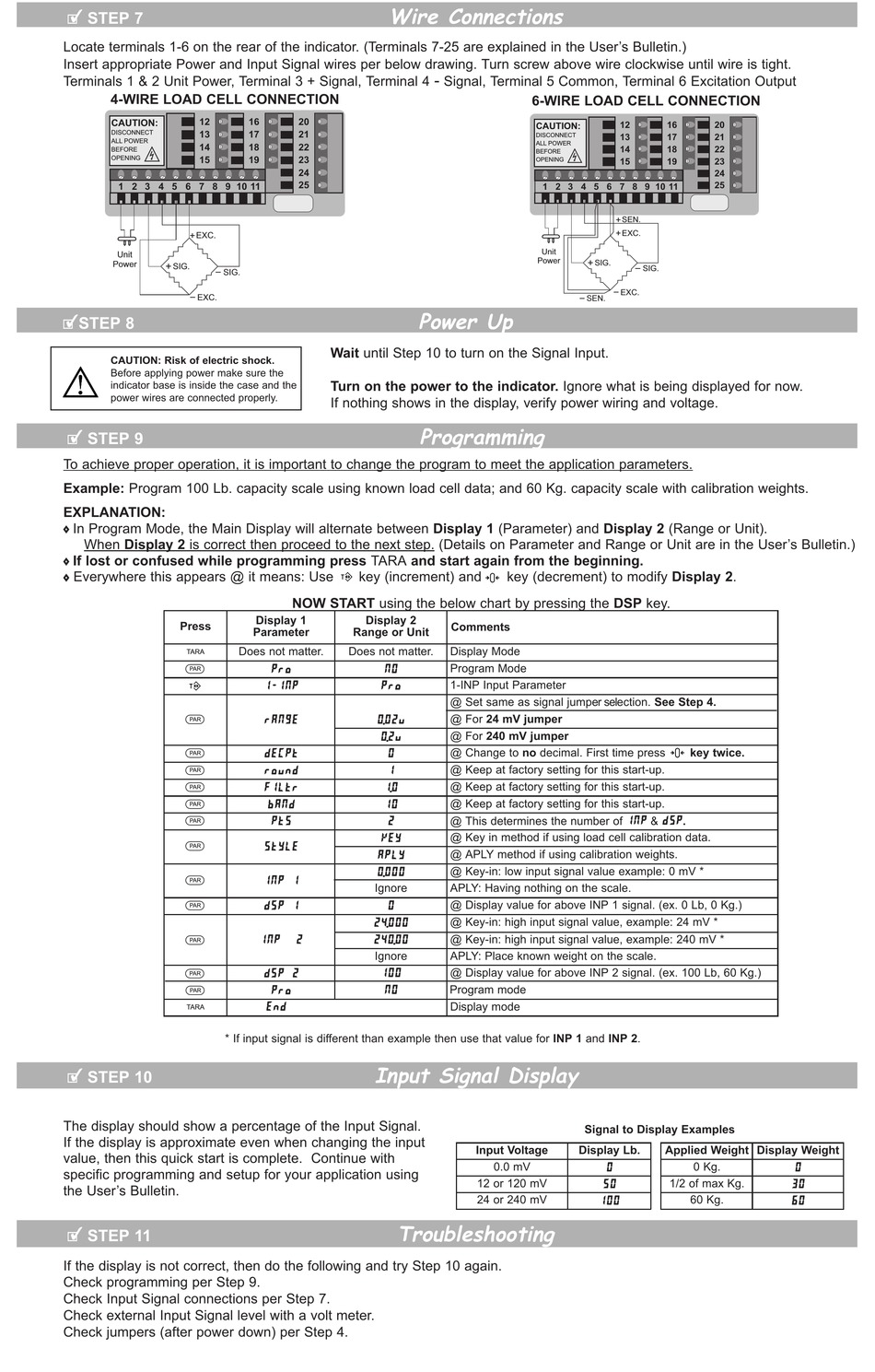

STEP 7
Locate terminals 1-6 on the rear of the indicator. (Terminals 7-25 are explained in the User's Bulletin.)
Insert appropriate Power and Input Signal wires per below drawing. Turn screw above wire clockwise until wire is tight.
Terminals 1 & 2 Unit Power, Terminal 3 + Signal, Terminal 4
4-WIRE LOAD CELL CONNECTION
12
CAUTION:
DISCONNECT
13
ALL POWER
14
BEFORE
OPENING
15
1 2 3 4 5 6 7 8 9 10 11
+ EXC.
Unit
Power
+
SIG.
SIG.
EXC.
]
STEP 8
CAUTION: Risk of electric shock.
Before applying power make sure the
indicator base is inside the case and the
power wires are connected properly.
]
STEP 9
To achieve proper operation, it is important to change the program to meet the application parameters.
Example: Program 100 Lb. capacity scale using known load cell data; and 60 Kg. capacity scale with calibration weights.
EXPLANATION:
7 7 In Program Mode, the Main Display will alternate between Display 1 (Parameter) and Display 2 (Range or Unit).
When Display 2 is correct then proceed to the next step. (Details on Parameter and Range or Unit are in the User's Bulletin.)
7 7 If lost or confused while programming press TARA and start again from the beginning.
7 7 Everywhere this appears @ it means: Use
Press
TARA
PAR
PAR
PAR
PAR
PAR
PAR
PAR
PAR
PAR
PAR
PAR
PAR
PAR
TARA
* If input signal is different than example then use that value for INP 1 and INP 2.
]
STEP 10
The display should show a percentage of the Input Signal.
If the display is approximate even when changing the input
value, then this quick start is complete. Continue with
specific programming and setup for your application using
the User's Bulletin.
]
STEP 11
If the display is not correct, then do the following and try Step 10 again.
Check programming per Step 9.
Check Input Signal connections per Step 7.
Check external Input Signal level with a volt meter.
Check jumpers (after power down) per Step 4.
Wire Connections
16 20
17 21
18 22
19 23
24
25
Wait until Step 10 to turn on the Signal Input.
Turn on the power to the indicator. Ignore what is being displayed for now.
If nothing shows in the display, verify power wiring and voltage.
key (increment) and
NOW START using the below chart by pressing the DSP key.
Display 1 Display 2
Parameter Range or Unit
Does not matter. Does not matter.
Pro NO
1-INP Pro
rANGE 0. 0 2u
0. 2 u
dECPt 0
round 1
FILtr 1. 0
bANd 10
PtS 2
KEY
StYLE
APLY
0. 0 00
INP 1
Ignore
dSP 1 0
24. 0 00
INP 2 240. 0 0
Ignore
dSP 2 100
NO
Pro
End
Input Signal Display
