NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3 Symbols in Text
This symbol refers to a chapter in this
instruction manual.

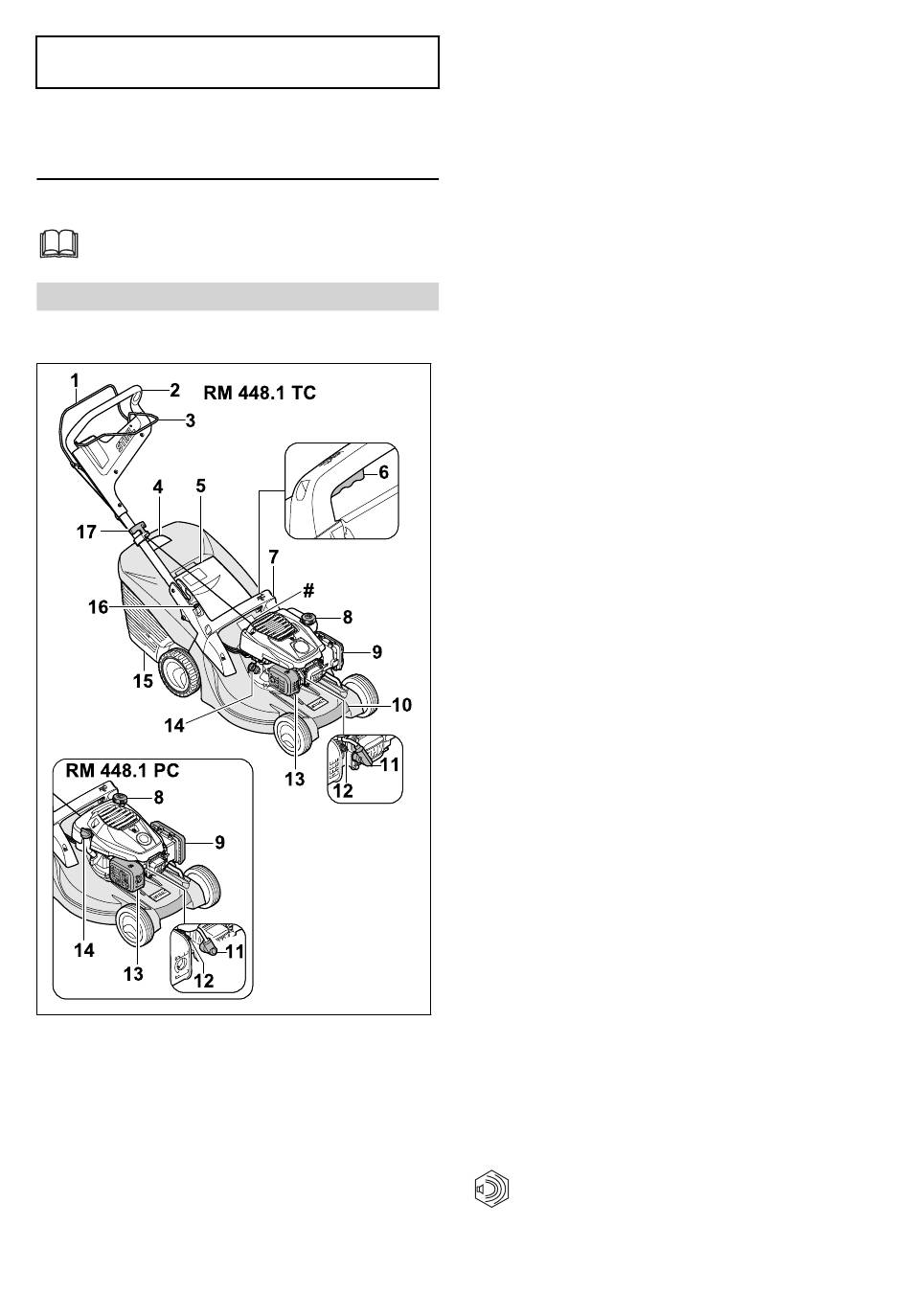

3 Overview
3.1 Lawn Mower
1 Control bar for mowing
The control bar for mowing is used to start
and stop the engine.
2 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
3 Control bar for self-propulsion
The control bar for self-propulsion engages
and disengages self-propulsion.
0478-111-9952-B
4 Level indicator
The level indicator shows how full the grass
catcher box is.
5 Discharge flap
The discharge flap closes off the discharge
chute.
6 Lever
The lever is used to set the cutting height.
7 Handle
The handle is used to hold the lawn mower
when adjusting the cutting height and to
transport the lawn mower.
8 Fuel tank cap
The fuel tank cap seals the opening for add‐
ing petrol.
9 Filter cover
The filter cover provides protection for the air
filter.
10 Transport handle
The transport handle is used to transport the
lawn mower.
11 Spark plug socket
The spark plug socket connects the ignition
lead to the spark plug.
12 Spark plug
The spark plug ignites the fuel/air mixture in
the engine.
13 Muffler
The muffler reduces the lawn mower's noise
level.
14 Engine oil cap
The engine oil cap seals the opening for add‐
ing engine oil.
15 Grass catcher box
The grass catcher box collects the mown
grass.
16 Lever
The lever is used to adjust and fold down the
handlebar.
17 Starter handle
The starter handle is used to start the engine.
# Rating plate with machine number
3.2 Symbols
The symbols can be on the lawn mower and
have the following meaning:
Guaranteed sound power level in
L
accordance with Directive 2000/14/EC
WA
in dB(A) for the purpose of comparing
the sound emissions of products.
