Installing the self-supply transformer
Installing the self-
supply transform-
er
1
1

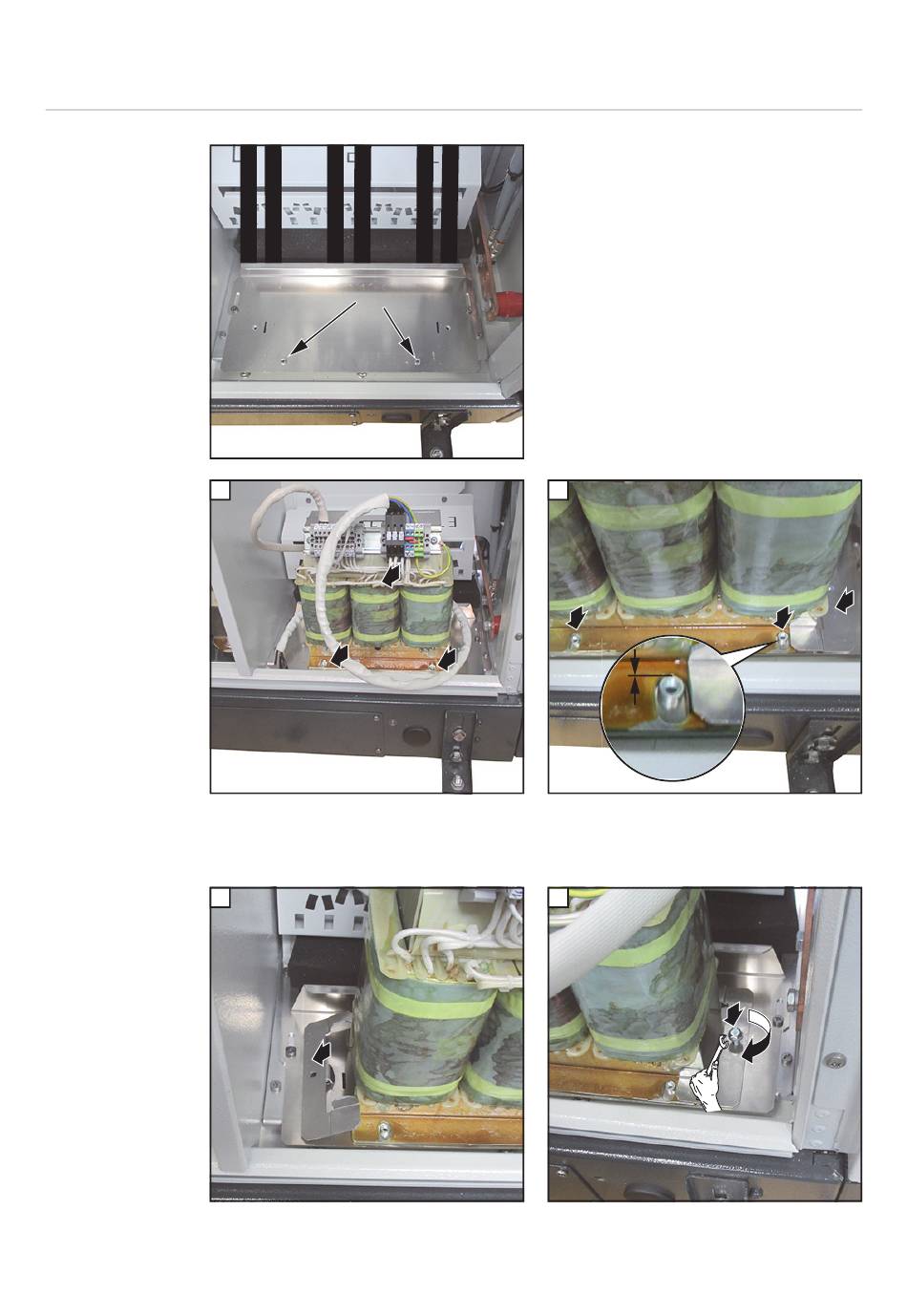

Position the self-supply transformer in the inverter so
that the guides are located in the recesses
3
3
Insert left mounting bracket
10
(1)
1
1
1
1
(1) = Guide for self-supply transformer
2
2
1
0 mm
Push the self-supply transformer forwards onto the
guides as far as it will go;
insert right mounting bracket
4
4
Secure left and right mounting brackets using an M6 x
16 mm screw
3
2
2 x
1
2
