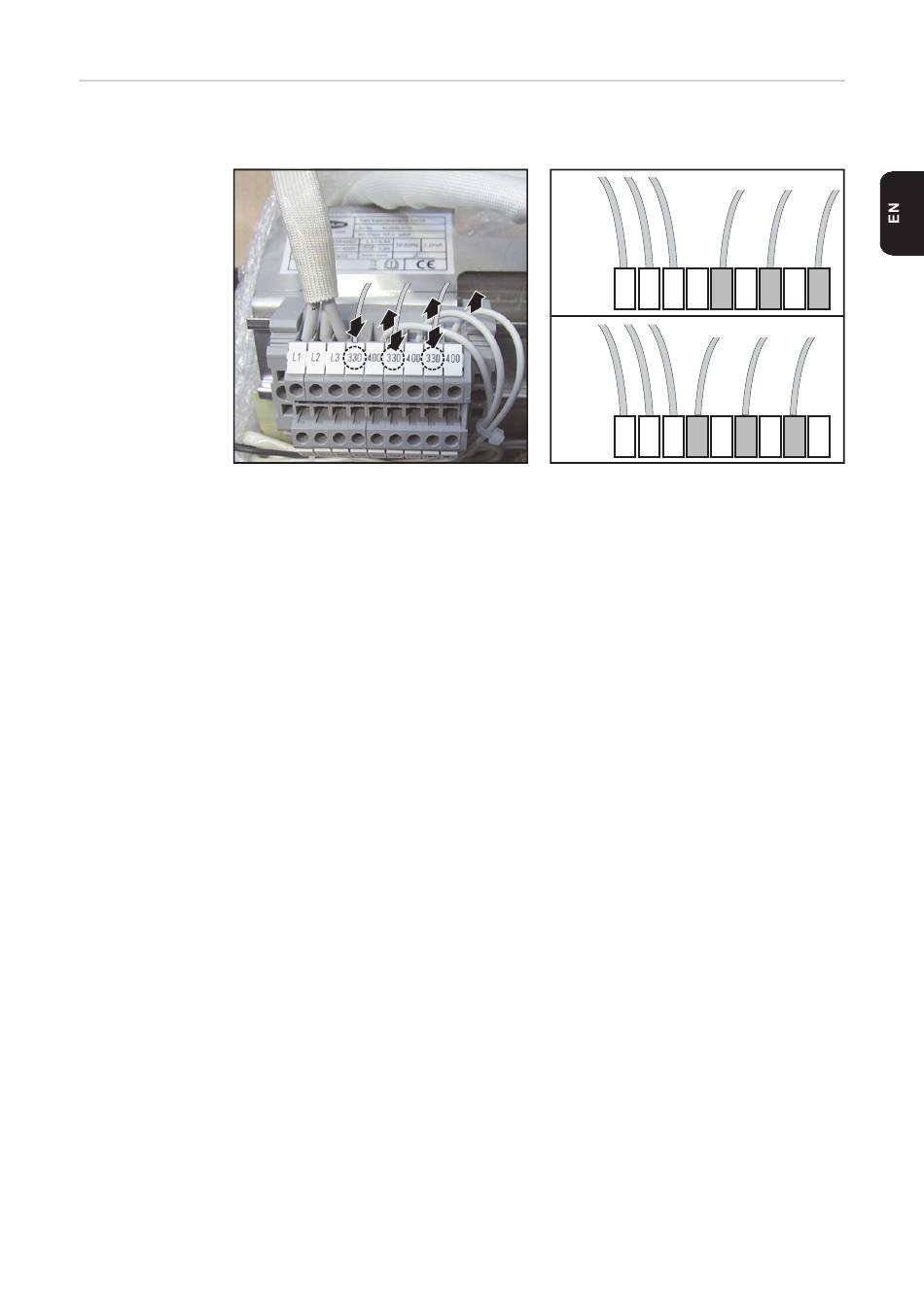

Changing cable IMPORTANT! The cable connections on the self-supply transformer must be changed as
connections for follows for 360 kW units:
360 kW unit
A B C
5
3
1
2
C
6
4
B
A
460 kW
L1 L2 L3 330 400
360 kW
L1 L2 L3 400
330
330 400 330 400
330 330 400
400
