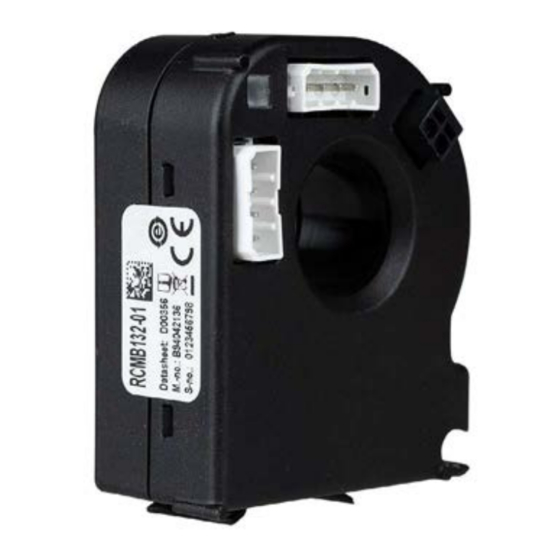

RCMB132-01
Allstromsensitives Differenzstrom-
Überwachungsmodul zur Messung von Gleich-
und Wechselströmen bis ±100 mA
i
Bestandteil der Gerätedokumentation sind neben
dieser Kurzanleitung die „Sicherheitshinweise für
Bender-Produkte" und das dazugehörige Handbuch,
das unter https://www.bender.de/service-support/
downloadbereich herunter geladen werden kann.
Lieferumfang:
1x RCMB132-01
2x vierpolige Stecker (Phoenix Contact, PTSM 0,5/4-P-2,5)
1x Abdeckstopfen zum Schutz einer offenen Buchse
1x Kurzanleitung DE/EN, Sicherheitshinweise
Bestellangaben:
Typ/Type
RCMB132-01
Montagefuß/Mounting foot MCCT20
Bestimmungsgemäße Verwendung
Das allstromsensitive Differenzstrom-Überwachungs-
Modul überwacht elektrisch geerdete Stromversorgungen
bis 300 V und angeschlossene Verbraucher bis zu Nenn-
strömen von 32 A auf Ableit- und Fehlerströme. Das
Modul ist für den Einbau in Verteilungseinrichtungen wie
PDUs (Power Distribution Units), Abgangskästen oder
Mehrfachsteckdosen konzipiert und wird mit DC12...24 V
versorgt.
Eine andere oder darüber hinausgehende Benutzung gilt
als nicht bestimmungsgemäß.
RCMB132-01_D00356_00_Q_DEEN /09.2020
Quickstart-guide

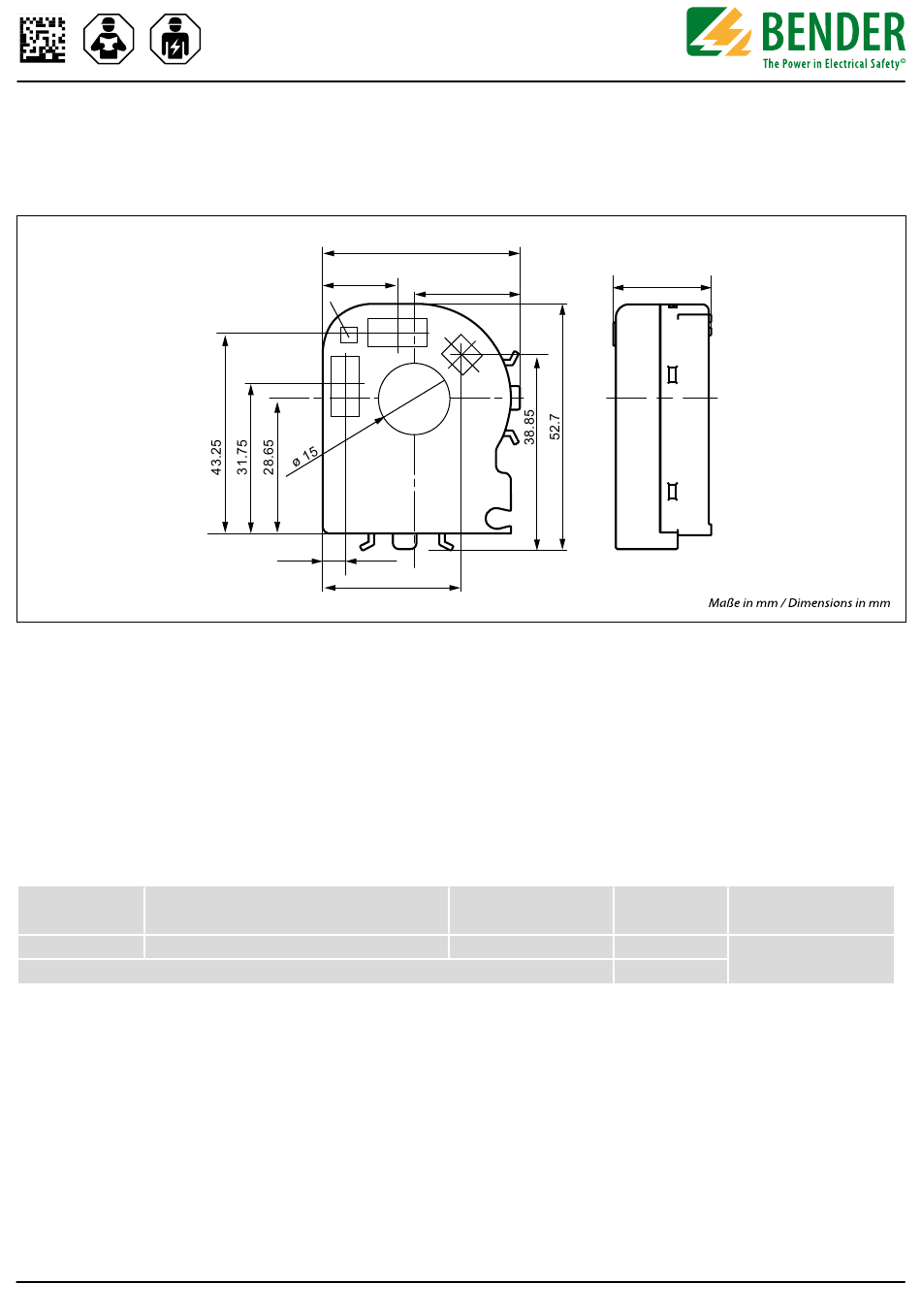

16.6
LED
5.5
30.7
Messbereich/ Measuring range
AC/DC ±100 mA
AC/DC sensitive residual current monitoring
module for measuring AC and DC currents up to
±100 mA
42.7
22.2
i
Part of the device documentation, in addition to this
quickstart, are the enclosed "Safety instructions for
Bender products" and the corresponding manual,
which can be downloaded from https://www.bend-
er.de/en/service-support/downloads.
Scope of delivery:
1x RCMB132-01
2x four-pole plugs (Phoenix Contact, PTSM 0.5/4-P-2.5)
1x cover plug for protecting an open socket
1x Quickstart DE/EN and Safety instructions
Ordering details:
Versorgungsspannung/
Supply voltage U
S
DC 12...24 V
Intended use
The AC/DC sensitive residual current monitoring module
monitors electrically earthed power supplies up to 300 V
and connected loads up to nominal currents of 32 A for
leakage and fault currents. The module is intended for in-
stallation in distribution equipment such as PDUs (Power
Distribution Units), outlet boxes or multiple socket-outlets
and is supplied with DC 12...24 V.
Any other use than that described in this document is re-
garded as improper.
21
Art.-Nr./Art. No. Handbuch Nr./Manual No.
B94042136
D00356
B91080111
