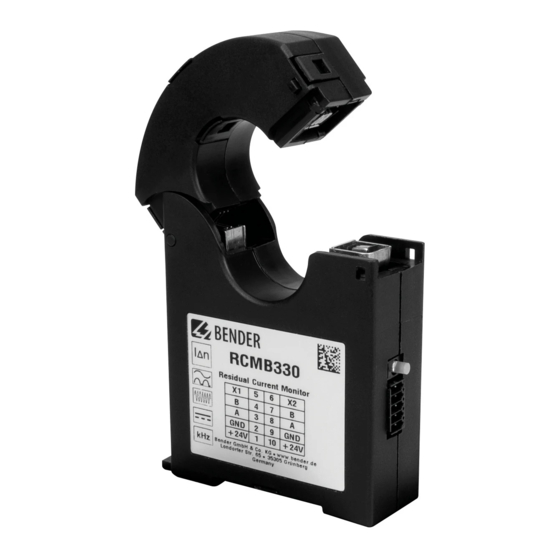

LINETRAXX® RCMB330
Allstromsensitives Differenzstrom-
Überwachungsmodul mit integriertem
Messstromwandler
i
Bestandteil der Gerätedokumentation sind neben
dieser Kurzanleitung die „Sicherheitshinweise für
Bender-Produkte" und das dazugehörige Hand-
buch, das unter https://www.bender.de/ service-
support/downloadbereich heruntergeladen werden
kann.
Lieferumfang: RCMB330, Schraubadapter,
Klemmenblock, Kurzanleitung, Sicherheitshinweise
Bestellangaben
Typ / Type
Versorgungsspannung U
RCMB330
Bestimmungsgemäße Verwendung
Die Differenzstrom-Überwachungsmodule RCMB330 sind
zur allstromsensitiven Differenzstrommessung zu verwen-
den. Anwendungsbereich ist das Monitoring von
Differenzströmen I
zur vorbeugenden Instandhaltung in
Δ
TN-, TT- und IT-Netzen bis 300 V mit I
bei I
bestimmungsgemäß in einem Bereich von
Δ
f = 0...100 kHz liegen kann. Die Geräte sind für den Betrieb
in Schaltschränken oder in ähnlich geschützter Umgebung
vorgesehen. Eine andere oder darüber hinausgehende
Benutzung gilt als nicht bestimmungsgemäß.
Montage, Anschluss und Inbetrieb nahme nur durch
Elektrofachkraft! Beachten Sie unbedingt die bestehen-
den Sicherheitsvorschriften.
Geräteansicht / Montage
(Angaben in mm, Toleranz ±0,5 mm)
65,5
Bender
Kurzanleitung/Quickstart guide
/ Supply voltage U
S
DC 24 V
≤ 500 mA rms, wo-
Δ
25
1
2
100,4
3
4
AC/DC sensitive residual current monitoring
module with an integrated measuring current
transformer
i
Part of the device documentation, in addition to
this quick-start guide, are the enclosed "Safety in-
structions for Bender products" and the corre-
sponding manual, available for download at
https://www.bender.de/en/service-support/down-
loads.
Scope of delivery: RCMB330, screw adapter, terminal
block, quick-start guide, safety instructions
Ordering information
Art.-Nr / Art.-No.
S
B74043160
Intended use
The RCMB330 residual current monitoring modules are
intended for AC/DC sensitive residual current measure-
ment. The area of application is the monitoring of residual
currents I
for preventive maintenance in TN, TT and IT
Δ
system up to 300 V with I
tended to be measured within the range f = 0...100 kHz.
The devices are intended for operation in control cabinets
or similarly protected environments. Any other use than
that described in this manual is regarded as improper.
Mounting, connection and commissioning are to be
carried out by electrically skilled persons only!
It is essential to follow the existing safety instructions.
Device view / Mounting
(Dimensions in mm, tolerance ±0.5 mm)
T/R
RCMB330_D00389_00_Q_DEEN/11.2020
Handbuch Nr. / Manual No.
D00389
≤ 500 A rms, whereby I
Δ
Hutschiene /
DIN rail
3.
mounting
RCMB330
Schraub-
montage /
Screw
mounting
is in-
Δ
1.
2.
4.
„Klick"
