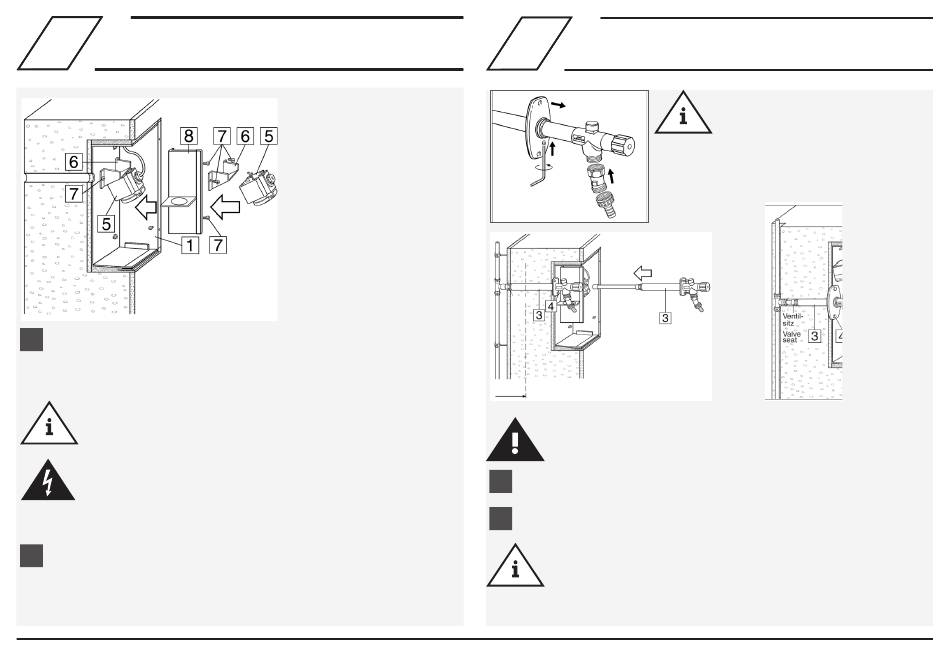

Installation of socket combination and
3
spray protection
Screw the 230 V socket onto the mounting plate (6), connect in
1.
the built-in wall cabinet (1) and attach to the cabinet rear wall
using the screws (7) supplied.
Note!
Carry out a functional check.
Danger!
Electrical work must be carried out only by authorised
specialist personnel!
Screw the spray protection plate (8) vertically between the
2.
socket and the connection of the frost-proof outdoor valve to the
attachement points provided on the rear wall, usng the screws
provided (7). (The spray protection plate can also be fitted after
the installation of the frost-proof outdoor valve.)
4
Installation of frost-proof outdoor valve
Exposed installation
Warning!
Installation must be carried out by qualified plumbers!
Insert the frost-proof outer fitting (3) into the hole and attach
1.
using the two M6 screws (4) provided.
Connect the outer fitting (3) to the water supply
2.
(copper pipe Ø 15 mm or AG R ½").
Note!
The valve seat (thread R ½") must be located in the frost-
•
free area.
The specifications given under Point 1 Minimum wall
•
thicknesses must be observed!
12 / 16 – K410021100001-00 / 09.2021 – © www.kemper-olpe.de
Note!
Push the wall plate on to the
•
outlet housing as far as the stop
and adjust using the screw.
Fit the hose sleeve and adapter
•
as illustrated
Concealed installation
