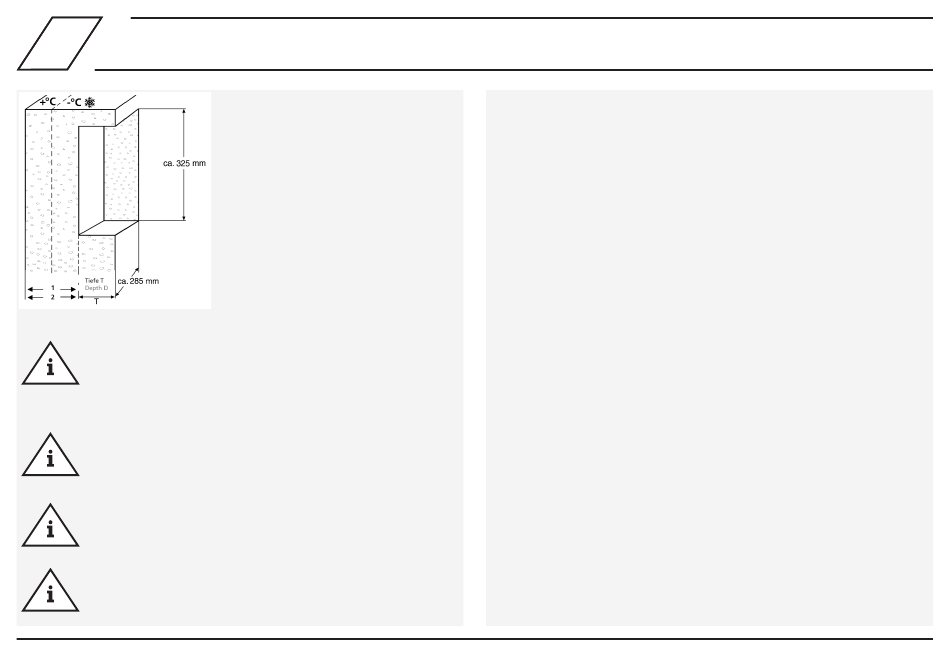

Wall opening | Recess
A wall opening must be provided with
the dimensions 325 x 285 mm (H x W).
Note!
The depth (D) min. 120 mm, max. 140 mm is calculated
from the wall thickness of the outer wall including installa-
tion, clinker etc.
Note!
In order to guarantee frost protection of the water fitting, a
wall thickness (1) of 150 mm is required.
Note!
When laying the connecting pipe within the wall, a mini-
mum wall thickness of 285 mm is required!
Note!
The valve must be attached minimum 250 mm over the
maximum of operating water surface!
Heat insulation against the effects of cold from outside
Heat insulation must be provided for the wall opening in consultation
with the architect! (The thickness of the insulating layer must be taken
into account accordingly for determination of the installation depth!)
Fire protection
The wall opening reduces the fire resistance duration and the structural
strength of the outer wall. A fire protection concept for the built-in wall
cabinet (1) must be produced together with the surveyor and fire-
safety planner (Suggestion for an F 90 wall: Use lagging with 40 mm
Promatect H).
