4. INSTALLATION METHOD

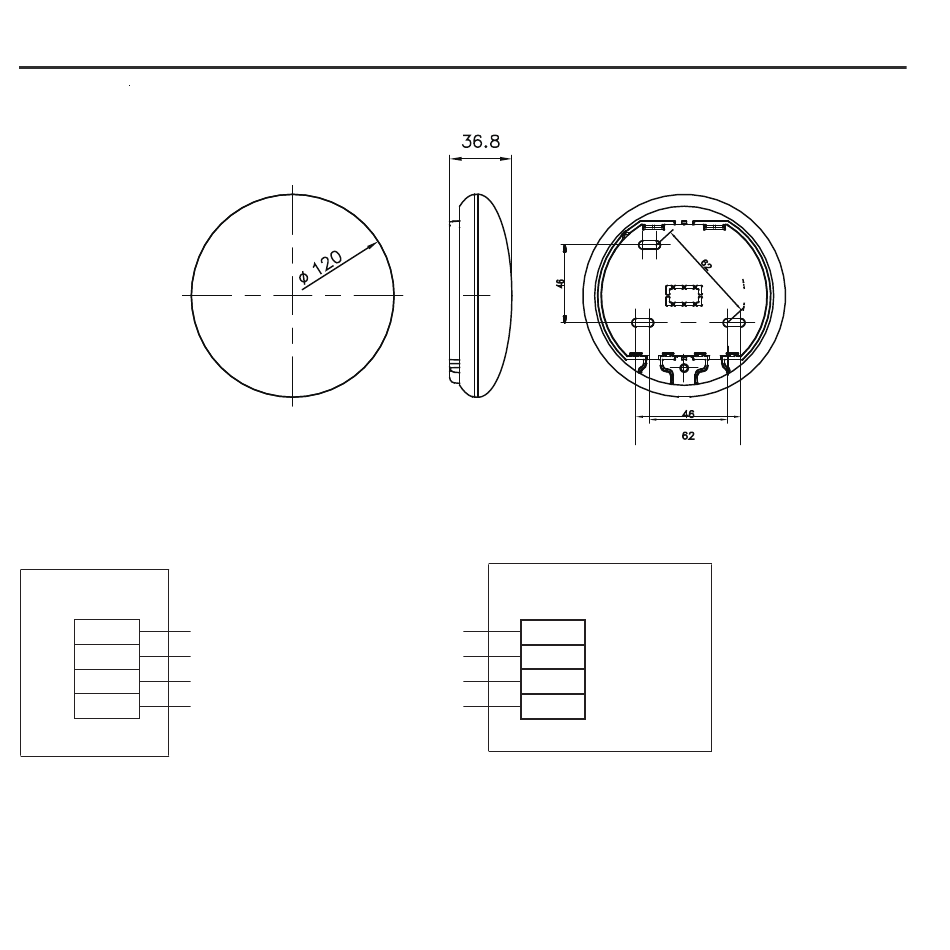

1.Wifi controller structure size figure
2.Wiring Principle Sketch:
Applicable to WF-60A1 only
-----------------------------------
red
-----------------------------------
black
yellow
-----------------------------------
-----------------------------------
brown
4-Core Shield Cable, the length
Wifi control box
is decided by installation
Fig 4-1
Insert of the
mainboard CN40
red
black
yellow
brown
Indoor unit mainboard
Fig 4-2
