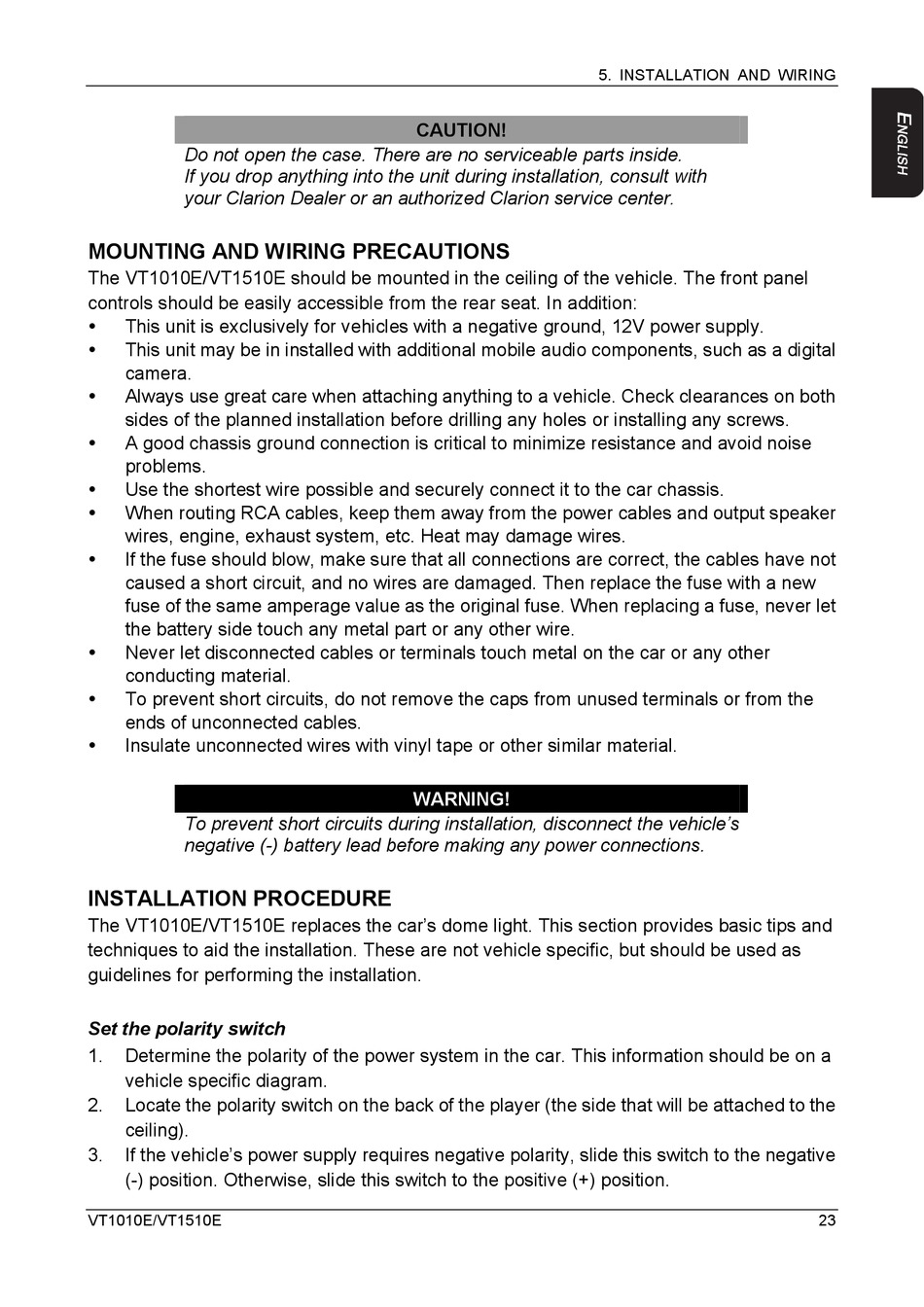

Do not open the case. There are no serviceable parts inside.
If you drop anything into the unit during installation, consult with
your Clarion Dealer or an authorized Clarion service center.

MOUNTING AND WIRING PRECAUTIONS

The VT1010E/VT1510E should be mounted in the ceiling of the vehicle. The front panel
controls should be easily accessible from the rear seat. In addition:
 This unit is exclusively for vehicles with a negative ground, 12V power supply.
 This unit may be in installed with additional mobile audio components, such as a digital
camera.
 Always use great care when attaching anything to a vehicle. Check clearances on both
sides of the planned installation before drilling any holes or installing any screws.
 A good chassis ground connection is critical to minimize resistance and avoid noise
problems.
Use the shortest wire possible and securely connect it to the car chassis.

 When routing RCA cables, keep them away from the power cables and output speaker
wires, engine, exhaust system, etc. Heat may damage wires.
 If the fuse should blow, make sure that all connections are correct, the cables have not
caused a short circuit, and no wires are damaged. Then replace the fuse with a new
fuse of the same amperage value as the original fuse. When replacing a fuse, never let
the battery side touch any metal part or any other wire.
 Never let disconnected cables or terminals touch metal on the car or any other
conducting material.
 To prevent short circuits, do not remove the caps from unused terminals or from the
ends of unconnected cables.
 Insulate unconnected wires with vinyl tape or other similar material.
To prevent short circuits during installation, disconnect the vehicle's
negative (-) battery lead before making any power connections.

INSTALLATION PROCEDURE

The VT1010E/VT1510E replaces the car's dome light. This section provides basic tips and
techniques to aid the installation. These are not vehicle specific, but should be used as
guidelines for performing the installation.
Set the polarity switch
1. Determine the polarity of the power system in the car. This information should be on a
vehicle specific diagram.
2. Locate the polarity switch on the back of the player (the side that will be attached to the
ceiling).
3. If the vehicle's power supply requires negative polarity, slide this switch to the negative
(-) position. Otherwise, slide this switch to the positive (+) position.
VT1010E/VT1510E
CAUTION!
WARNING!
5. INSTALLATION AND WIRING
23
