■ Make connection to the PHONO terminals and AC IN terminal before setting up or
installing the player.
Connecting to the PHONO terminals and AC IN terminal

Take out the player from the package, attach the "FRONT cushioning" and place the player with its front side down so
that you can make connection to the PHONO terminals and AC IN terminal on the back side.

Connect the supplied PHONO cable (product number: K2KYYYY00257), PHONO earth lead (product number:
K4EY1YY00160), and AC mains lead (product number: K2CM3YY00041 / K2CS3YY00033).
Insert the AC mains
lead up to a point
just before the
round hole.
Attention
Be careful not to tip over
the player.
■ Before fitting the turntable
There is a magnet and its cover on the back side of the turntable.
Remove the magnet cover before fitting to the main unit.
Attention
・ Keep any magnetic-sensitive object such as a magnetic card and watch away from the magnet.
・ Prevent the turntable from hitting the main unit or falling off.
Prevent dust or iron powder from adhering to the magnet on the back side.
・ Do not touch the fixing screws (three locations) of the turntable.
The rating performance cannot be guaranteed if they are out of position.
English
Read before use
FRONT cushioning
( " Before fitting the turntable" on page 15)
Back side of the turntable
Magnet

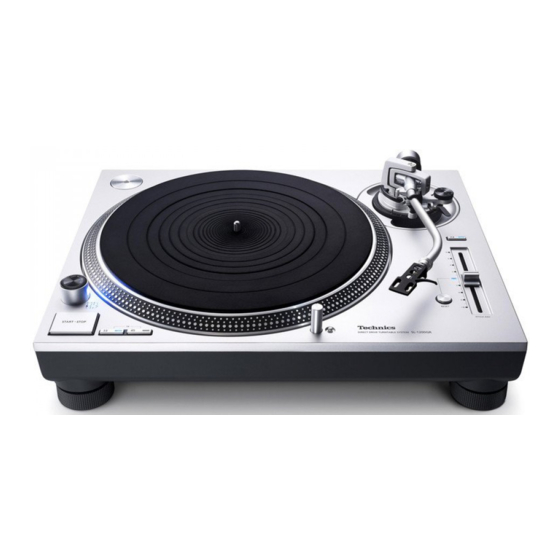

Direct Drive Turntable System
SL-1200GR / SL-1210GR
Model No.
Connecting the PHONO earth lead to the
player and amplifier.
 Turn the terminal to the left
to loosen.
 Insert the earth lug and tighten
the terminal securely.
Magnet cover
Fixing
screw
(Red)
(White)
(Black)
