* The colors of this model include silver and black.
* The black type model is provided with (K) in the
ORDER NO. SD81061950C8

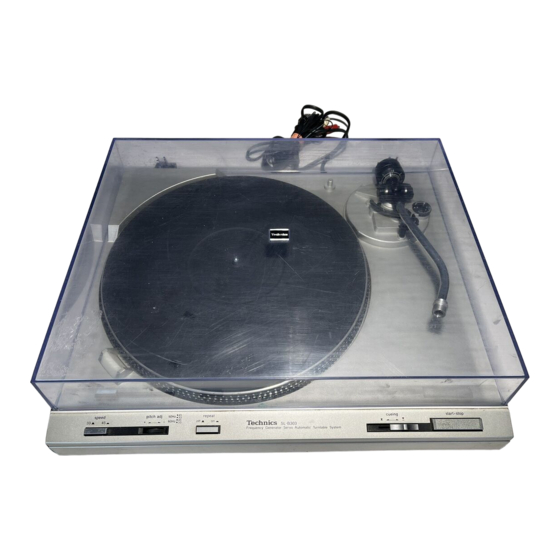

Turntable System
OL-B303
[E], [EK], [XL], [EG], [EB], [EH],
[EF], [Ei], [EA], [EC], [XA], [XM]
[E], [EK], [XL], [EG], [EB], [EH],
[EF], (Ei), [EA], [EC], [XA], [XM]
Areas
* (E} is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
{XL] is available in Australia.
[EG] is available in F.R. Germany.
[EB] is available in Belgium.
[EH] is available in Holland.
[EF] is available in France.
[Ei] is available in Italy.
* [EA] is available in Austria.
* [EC] is available in Czechoslovakia.
* [XA] is available in Southeast Asia, Oceania, Africa,
Service Manual.
English
Specifications
® General
Power supply:
Power consumption:
Dimensions:
(Wx H x D)
Weight:
@ Turntable section
Type:
Drive method:
Motor:
Drive control method:
Turntable platter:
Turntable speeds:
Middle Near East and Central South America.
* [XM] is available in Central South America.
Specifications are subject to change without notice for further improvement.
Weight and dimensions shown are approximate.
~110-120/220-240 V, 50 or 60 Hz
3W
43 x 10.6 x 37.5cem
(16-15/16" x 4-7/32" x 14-3/4")
Maximam height when top
(dust cover) is open.
43 x 37 x 42cm
(16-15/16" x 14-9/16" x 16-17/32")
4.3 kg (9.5 Ib.)
Automatic turntable
Auto start
Auto return
Auto stop
Repeat play
Manual play
Belt drive
DC motor
F G servo control
Aiuminum die-cast
Diameter 30.4 cm (12 inches)
33-1/3 rpm and 45 rpm
Technics
Pitch control:
Wow and flutter:
Rumble:
@ Tonearm section
Type:
Effective length:
Overhang
Tracking error angle:
Offset angle:
Stylus pressure
adjustment range:
Applicable cartridge
weight range:
Headshell weight:
Phono cable
capacitance:
Matsushita Electric Trading Co., Ltd.
6% adjustment range
0.045% WRMS
(JIS C5521)
+0.06% peak (IEC 98A Weighted)
—70 dB (1EC 98A Weighted)
Universal tonearm
"S" shaped tubular arm
Static balanced type
230 mm (9-1/16"")
15 mm (19/22")
Within 2°32' at the outer groove
of 30 cm (12") record
Within 0°32' at the inner groove
of 30 cm (12") record
22°
0-2.59
5—7,5g
89g
135 pF
P.O. Box 288, Central Osaka Japan
