CYL LIGHT SLIM | ENG |

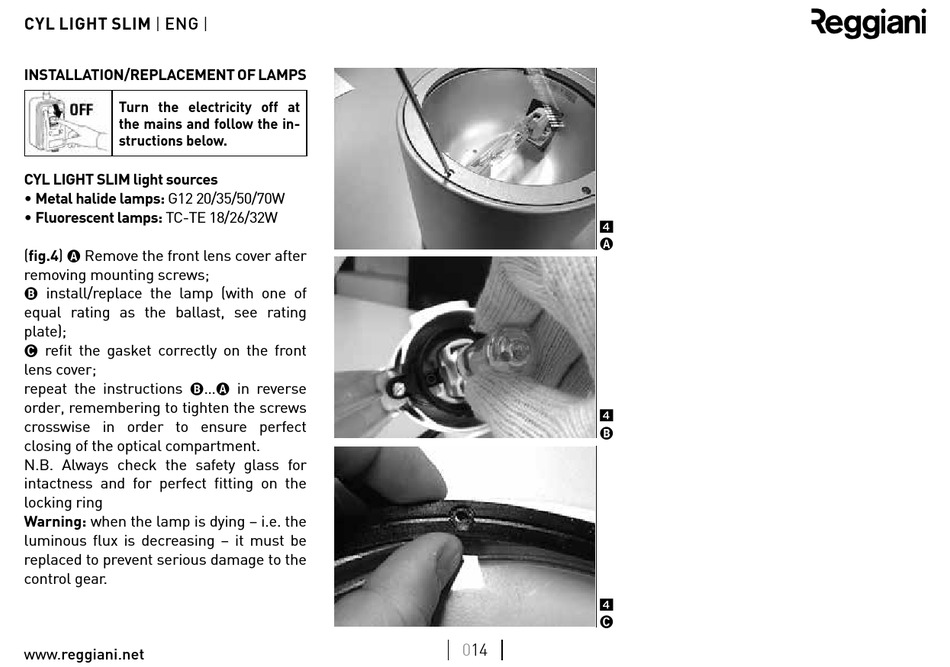

INSTALLATION/REPLACEMENT OF LAMPS
Turn the electricity off at
the mains and follow the in-
structions below.
CYL LIGHT SLIM light sources
• Metal halide lamps: G12 20/35/50/70W
• Fluorescent lamps: TC-TE 18/26/32W
(fig.4) Remove the front lens cover after
A
removing mounting screws;
install/replace the lamp (with one of
B
equal rating as the ballast, see rating
plate);
refit the gasket correctly on the front
C
lens cover;
repeat the instructions ...
B
order, remembering to tighten the screws
crosswise in order to ensure perfect
closing of the optical compartment.
N.B. Always check the safety glass for
intactness and for perfect fitting on the
locking ring
Warning: when the lamp is dying – i.e. the
luminous flux is decreasing – it must be
replaced to prevent serious damage to the
control gear.
www.reggiani.net
in reverse
A
4
A
4
B
4
C
