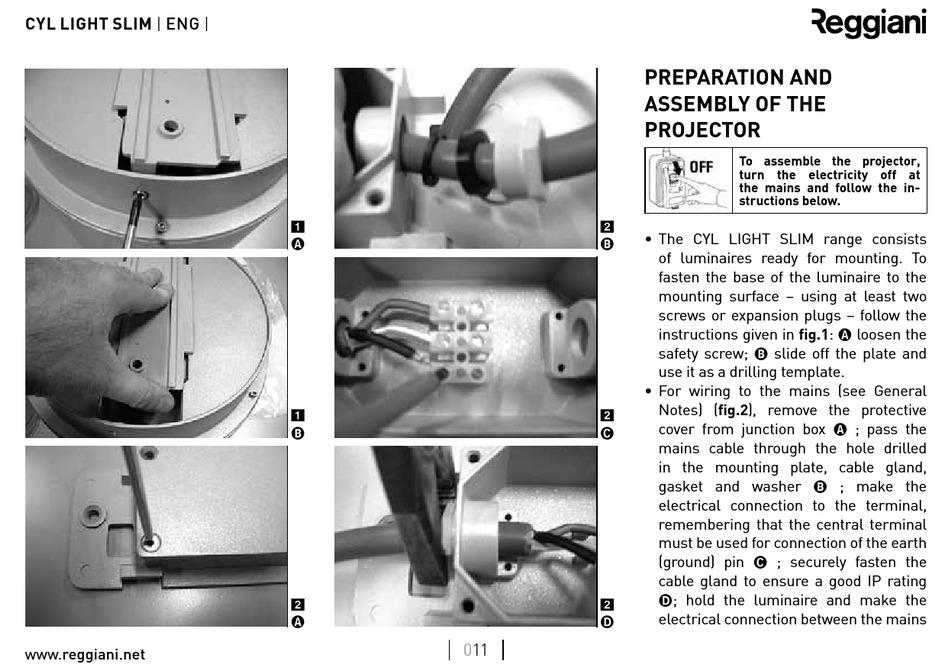

PREPARATION AND
ASSEMBLY OF THE
PROJECTOR
To assemble the projector,
turn the electricity off at
the mains and follow the in-
structions below.
2
• The CYL LIGHT SLIM range consists
B
of luminaires ready for mounting. To
fasten the base of the luminaire to the
mounting surface – using at least two
screws or expansion plugs – follow the
instructions given in fig.1:
safety screw; slide off the plate and
B
use it as a drilling template.
• For wiring to the mains (see General
Notes) (fig.2), remove the protective
2
cover from junction box
C
mains cable through the hole drilled
in the mounting plate, cable gland,
gasket and washer
electrical connection to the terminal,
remembering that the central terminal
must be used for connection of the earth
(ground) pin ; securely fasten the
C
cable gland to ensure a good IP rating
; hold the luminaire and make the
D
2
electrical connection between the mains
D
loosen the
A
; pass the
A
; make the
B
