CYL LIGHT SLIM | ENG |
and the luminaire, as described in point
; securely fasten the cable gland to
C
ensure a good IP rating
D
• After the electrical connection, refit
the projector following the instructions
give in fig.1 but in reverse order. After
the installation, fully tighten the safety
screw with an appropriate tool
INSTALLATION/REPLACE-
MENT OF REFLECTORS
AND LIGHT SOURCES
The luminaire can be fitted with two types
of light source: metal halide lamps and
fluorescent lamps. For more information
about the light sources, refer to the cata-
logue or access the product datasheet on
the website:
www.reggiani.net/reference.
www.reggiani.net

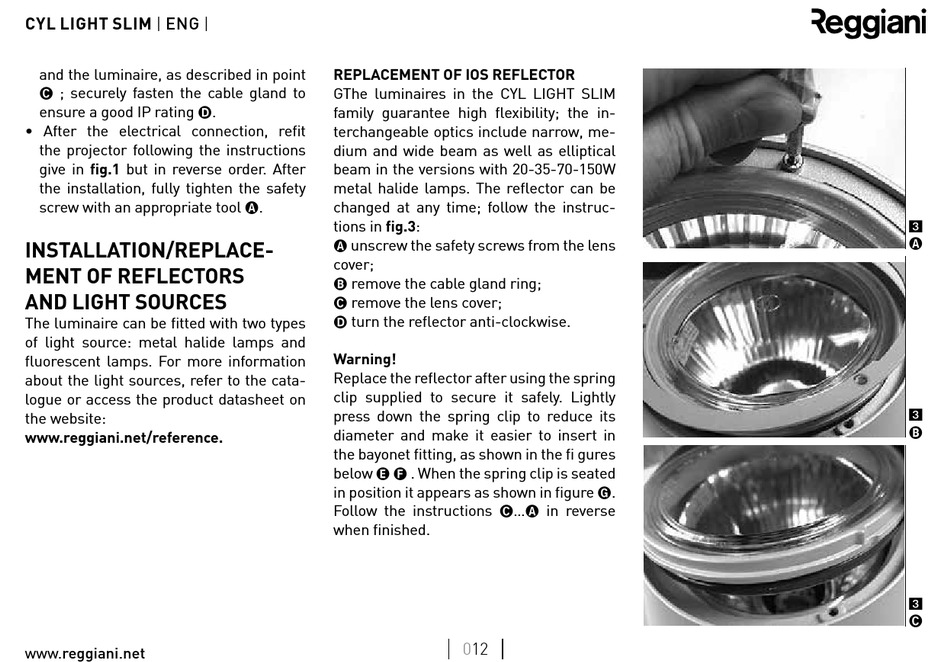

REPLACEMENT OF IOS REFLECTOR
GThe luminaires in the CYL LIGHT SLIM
. family guarantee high flexibility; the in-
terchangeable optics include narrow, me-
dium and wide beam as well as elliptical
beam in the versions with 20-35-70-150W
metal halide lamps. The reflector can be
. changed at any time; follow the instruc-
A
tions in fig.3:
unscrew the safety screws from the lens
A
cover;
remove the cable gland ring;
B
remove the lens cover;
C
turn the reflector anti-clockwise.
D
Warning!
Replace the reflector after using the spring
clip supplied to secure it safely. Lightly
press down the spring clip to reduce its
diameter and make it easier to insert in
the bayonet fitting, as shown in the fi gures
below
E F
in position it appears as shown in figure
Follow the instructions
when finished.
. When the spring clip is seated
... in reverse
C A
012
.
G
3
A
3
B
3
C
