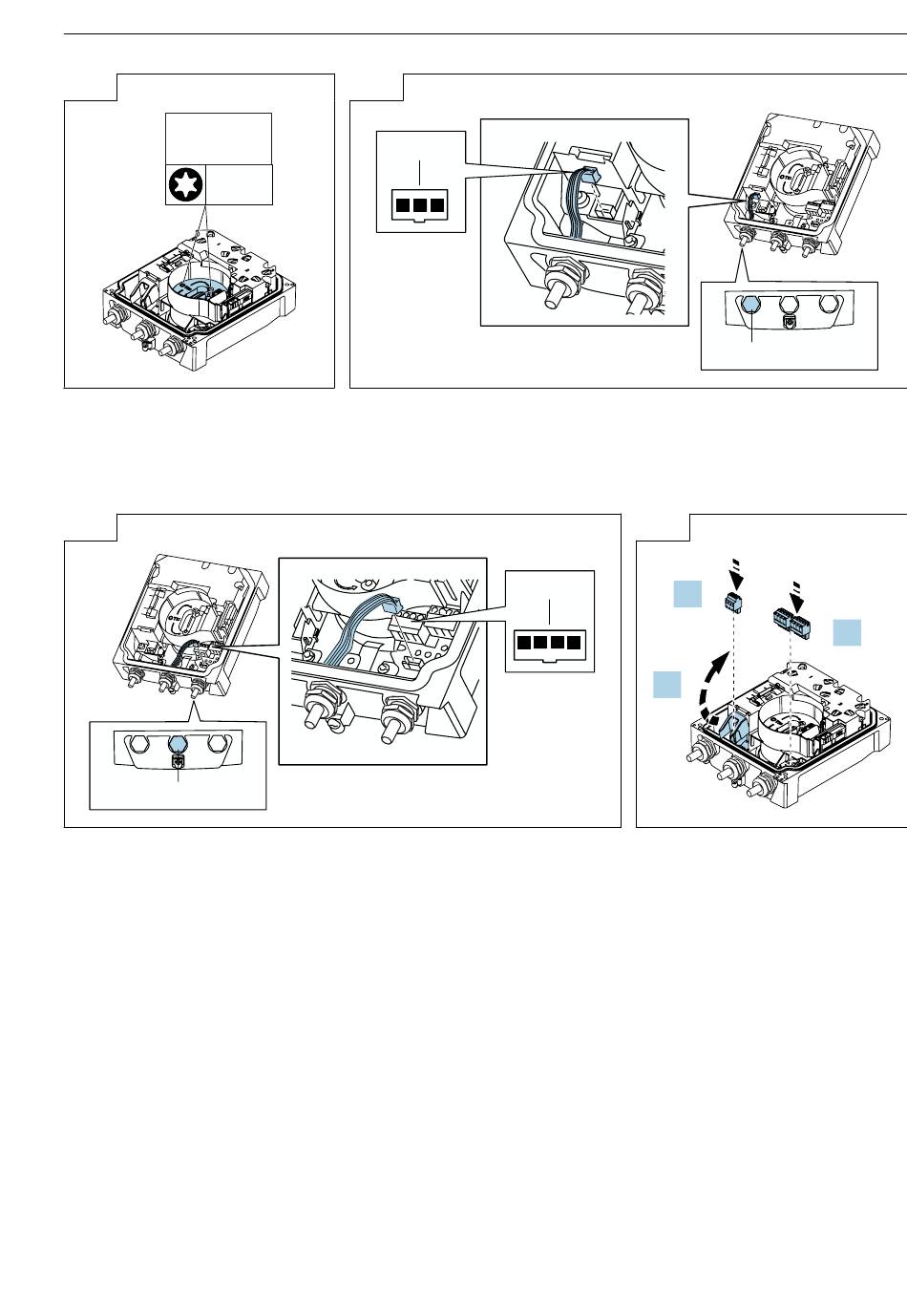

9 →
1 Nm
(0.7 lbf ft)
T10
‣
Tighten the Torx screws of the
electronics module.
11 →
B
‣
Plug in the plug for the pressure sensor. Pay attention to pin diagram! The
plug for the pressure sensor is designed for 4 pins. See A in the graphic.
The plug for the external battery must go into the cable entry as shown in
the graphic under B.  This step must only be performed if a pressure
sensor is present.
Endress+Hauser
10 →
A
‣
Plug in the plug for the external battery. Pay attention to pin diagram! The
plug for the external battery is designed for 3 pins. See A in the graphic.
The plug for the external battery must go into the cable entry as shown in
the graphic under B.  This step must only be performed if an external
battery is present.
12 →
A
2.
1.
‣
Fold open the cover and plug in
the terminals.
EA01325D
B
3.
