Endress+Hauser Proline Promag 800 Index C Installationsanleitung Seite 12

EA01325D
3 →
T20
2.5 Nm
(1.8 lbf ft)
‣

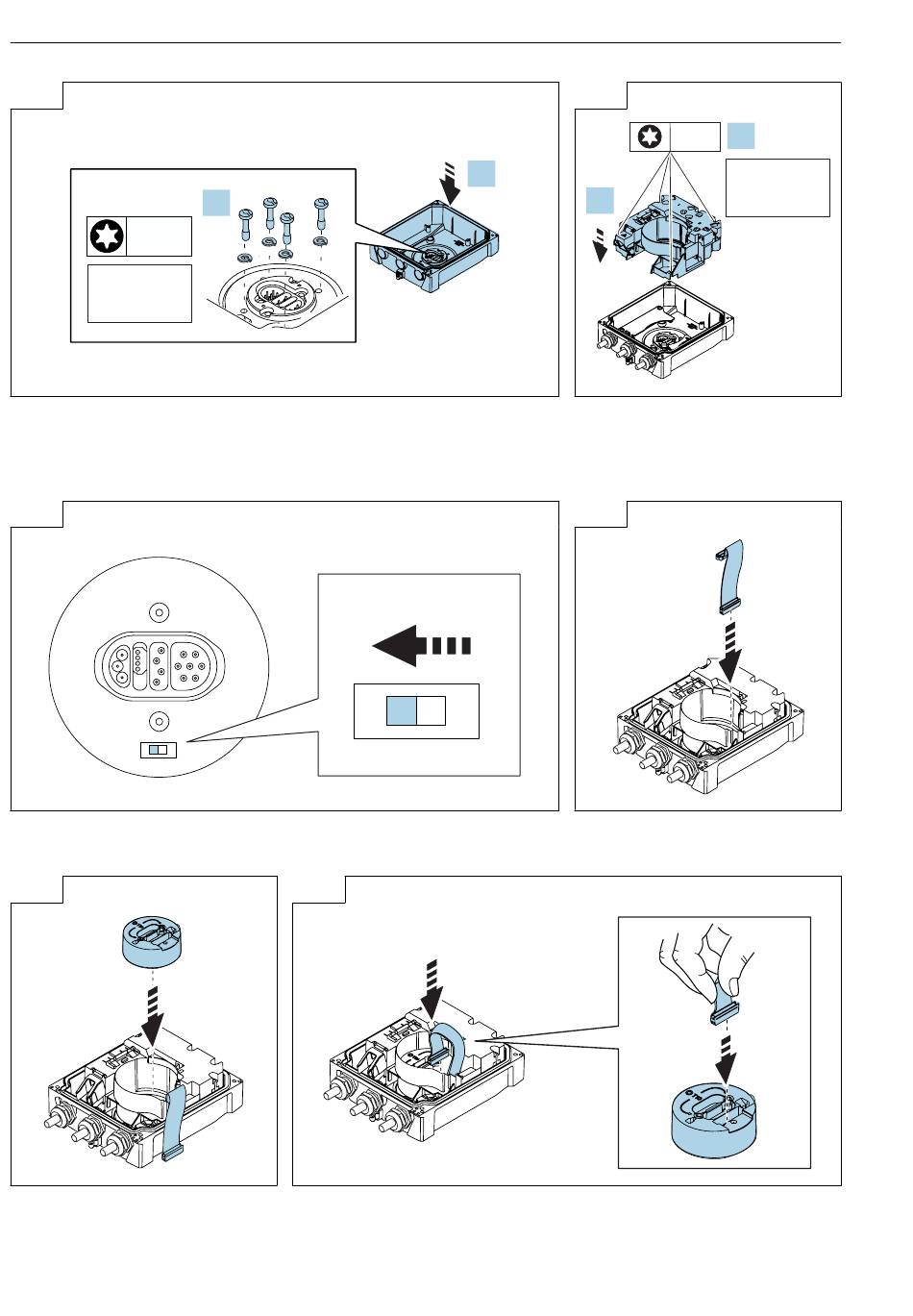

Attach the transmitter housing and tighten the Torx screws.
5 →
‣
 Set the grounding switch of the electronics module to the position on
the "left" (closed), as illustrated in the diagram above.
7 →
‣
Insert the electronics module.
12
2.
8 →
‣
Plug the ribbon cable into the electronics module.
4 →
1.
1.
‣
Insert the board and battery
carrier into the transmitter
housing and tighten the Torx
screws.
6 →
‣
Insert the ribbon cable.
2.
T20
1 Nm
(0.7 lbf ft)
Endress+Hauser
