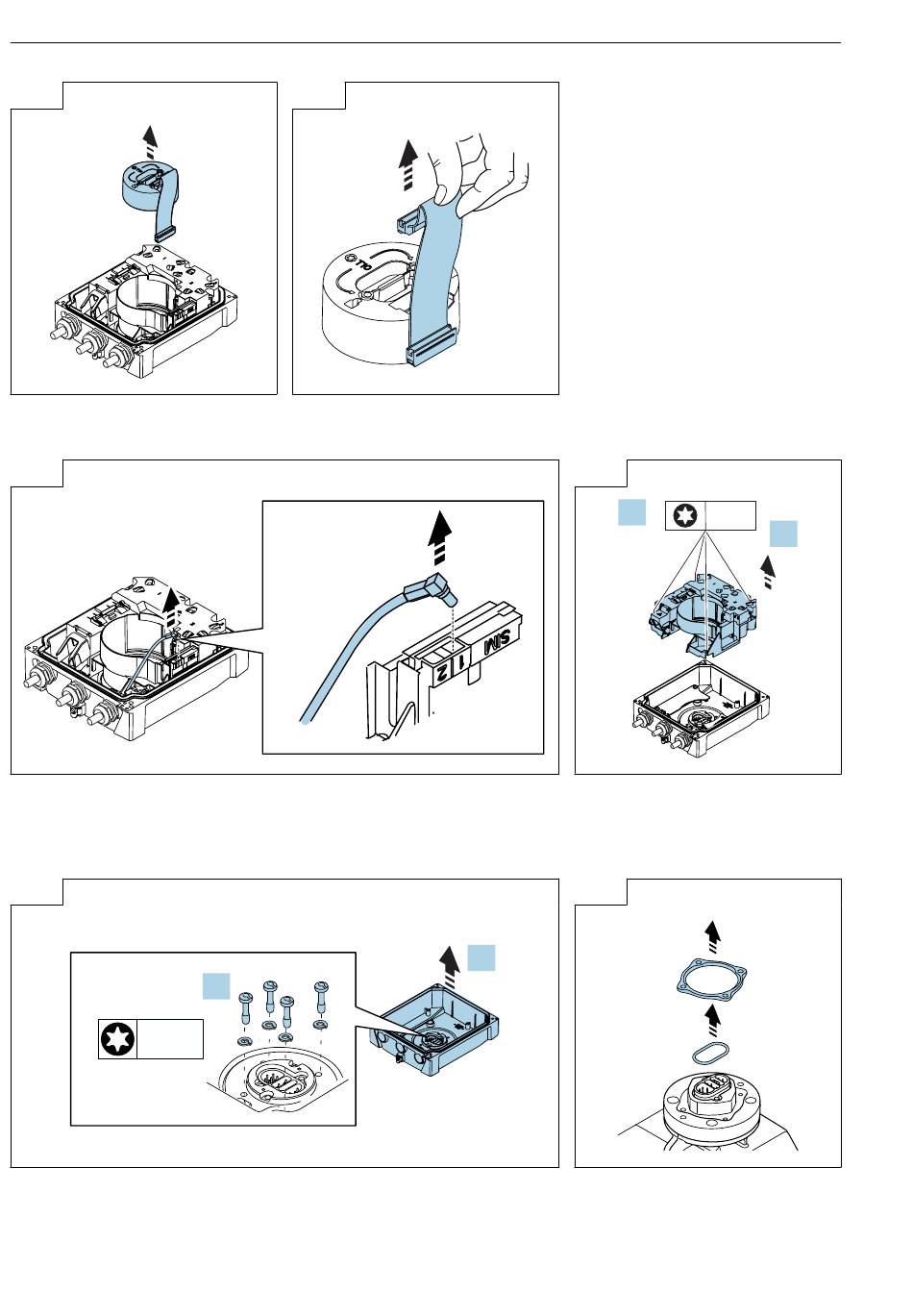

Remove the electronics module.
12 →
‣
Disconnect the antenna connector.  This step must only be performed if
an antenna connector is present.
14 →
T20
‣
Loosen the Torx screws and remove the transmitter housing.
10
11 →
‣
Unplug the ribbon cable from the
electronics module.
1.
13 →
1.
‣
Loosen the Torx screws and
remove the board and battery
carrier from the transmitter
housing.
15 →
2.
‣
Removal of O-ring for sensor
connector and profile seal for
sensor Promag W
T20
2.
