EA01324D
8

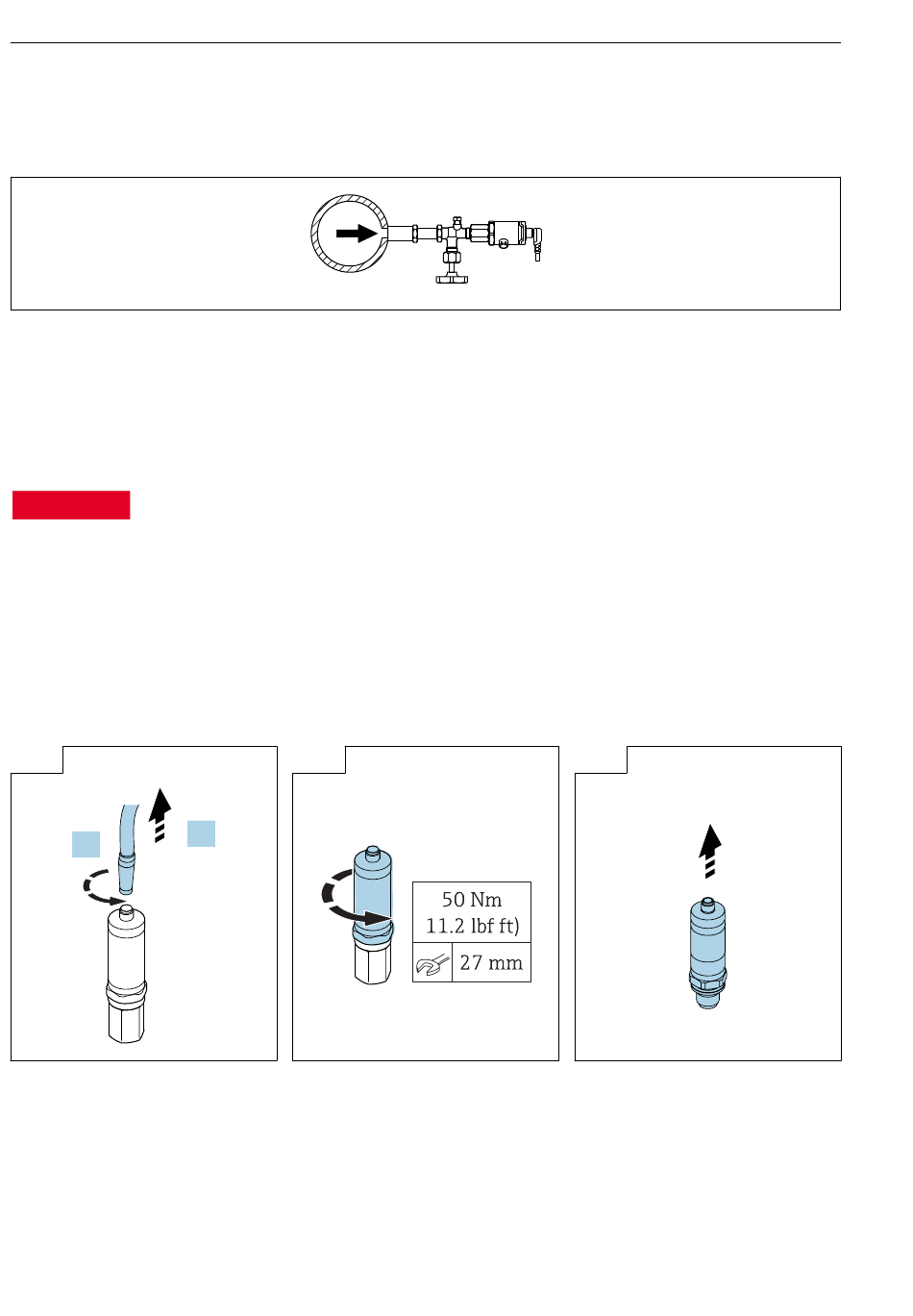

Mounting the pressure measuring cell

‣
Mount the device with the shutoff device at the same level as the tapping point.
1 Device
2 Shutoff device
9

Replacing the pressure measuring cell

DANGER
L
Risk of injury!
‣
The pipe must be completely free from pressure to replace the pressure measuring cell.
Residual pressure on the pipe can cause the pressure measuring cell to pop out suddenly as
soon as the pressure measuring cell is released!
‣
In the case of toxic, explosive or flammable fluids, the pipe in which the pressure
measuring cell is installed must be rinsed or cleaned before the pressure measuring cell is
replaced!
‣
Before starting work, allow the pipe to cool down to a safe temperature.
1 →
1.
10

Reassembling the pressure measuring cell

Reassembly is carried out in reverse order.
8
2 →
2.
2 1
3
