Replacement Of The Sensor Cable - Endress+Hauser Promag 800 Index C Installationsanleitung

EA01338D
7

Replacement of the sensor cable

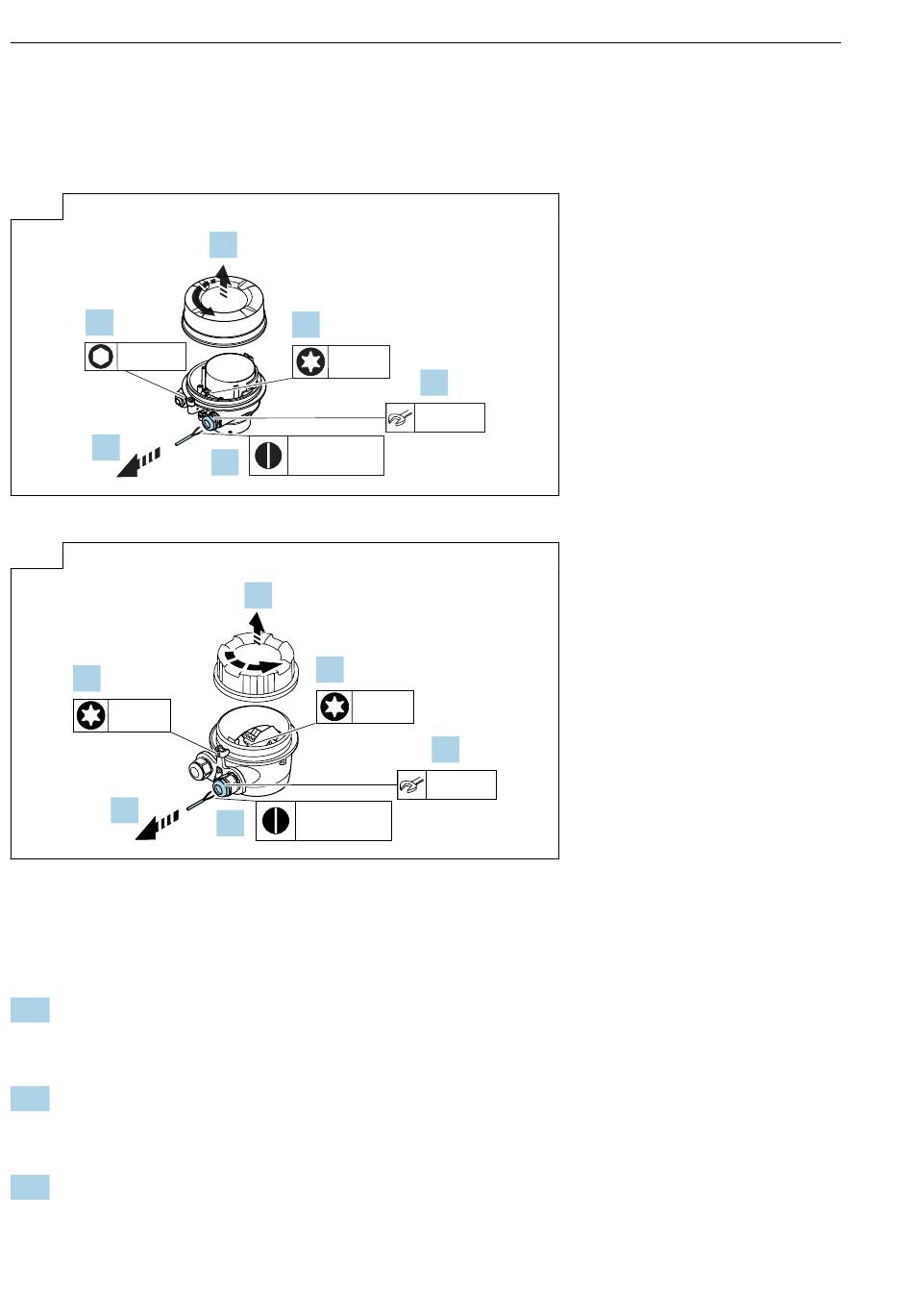

7.1 Releasing and removing the connecting cable
1 →
1.
3 mm
6.
‣
Sensor connection housing: aluminum coated
2
1.
T20
6.
‣
Sensor connection housing: polycarbonate IP68
7.2 Preparing the connecting cable for the remote version
When terminating the connecting cable, pay attention to the following points:
1. In the case of the electrode cable:
Make sure that the ferrules do not touch the core shields on the sensor side. Minimum
distance = 1 mm (exception: green "GND" cable)
2. In the case of the coil current cable:
Insulate one core of the three-core cable at the level of the core reinforcement. You only
require two cores for the connection.
3. For cables with fine-wire cores (stranded cables):
Fit the cores with ferrules.
8
2.
3.
T20
0.4 × 2.5
5.
2.
3.
T20
0.4 × 2.5
5.
4.
24 mm
4.
24 mm
Endress+Hauser
