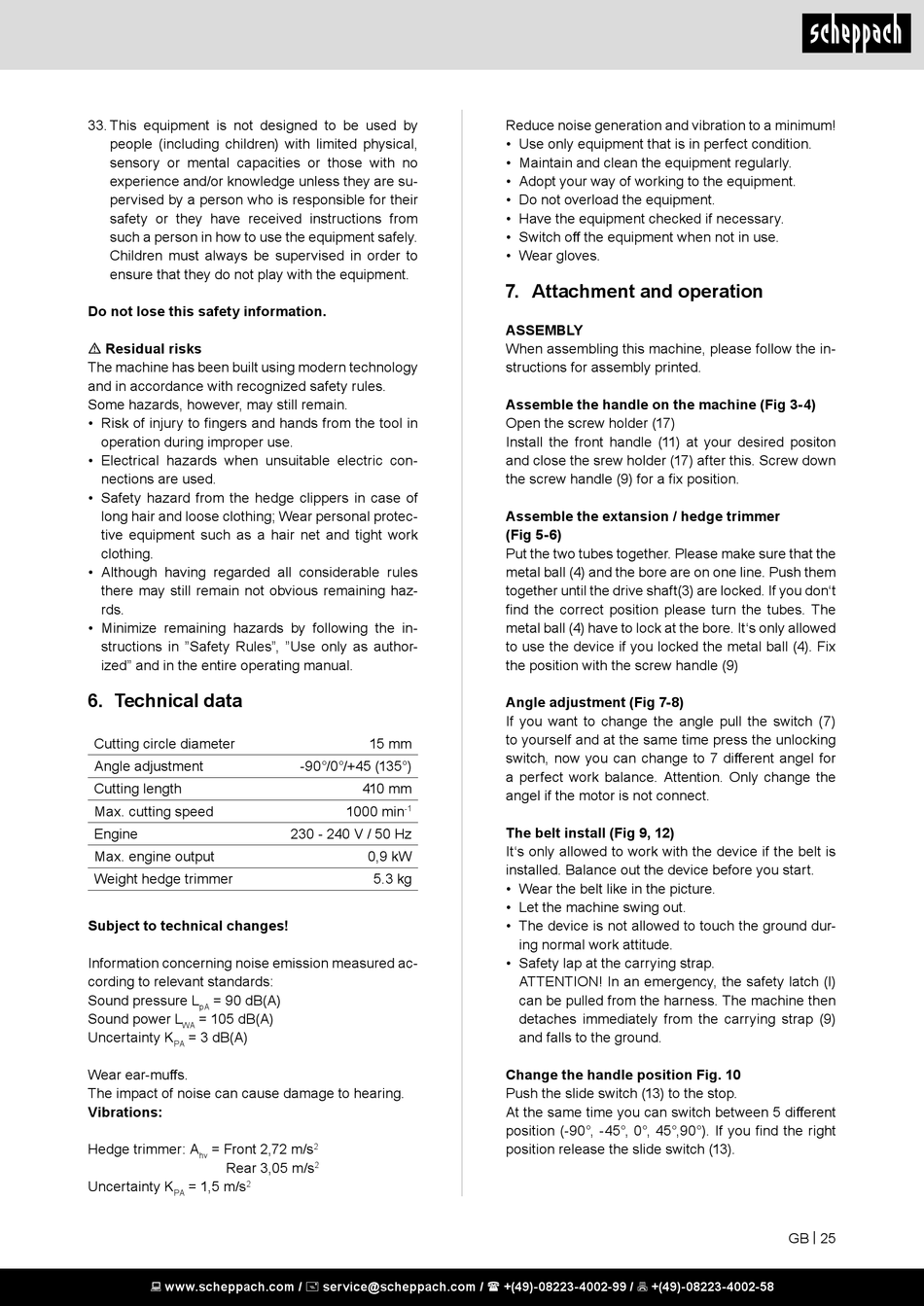

Technical Data; Attachment And Operation - Scheppach TPH900 Original Bedienungsanleitung

33. This equipment is not designed to be used by
people (including children) with limited physical,
sensory or mental capacities or those with no
experience and/or knowledge unless they are su-
pervised by a person who is responsible for their
safety or they have received instructions from
such a person in how to use the equipment safely.
Children must always be supervised in order to
ensure that they do not play with the equipment.
Do not lose this safety information.
m Residual risks
The machine has been built using modern technology
and in accordance with recognized safety rules.
Some hazards, however, may still remain.
• Risk of injury to fingers and hands from the tool in
operation during improper use.
• Electrical hazards when unsuitable electric con-
nections are used.
• Safety hazard from the hedge clippers in case of
long hair and loose clothing; Wear personal protec-
tive equipment such as a hair net and tight work
clothing.
• Although having regarded all considerable rules
there may still remain not obvious remaining haz-
rds.
• Minimize remaining hazards by following the in-
structions in "Safety Rules", "Use only as author-
ized" and in the entire operating manual.

6. Technical data

Cutting circle diameter
Angle adjustment
Cutting length
Max. cutting speed
Engine
Max. engine output
Weight hedge trimmer
Subject to technical changes!
Information concerning noise emission measured ac-
cording to relevant standards:
Sound pressure L = 90 dB(A)
pA
Sound power L = 105 dB(A)
WA
Uncertainty K = 3 dB(A)
PA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Vibrations:
Hedge trimmer: A = Front 2,72 m/s
hv
Rear 3,05 m/s
Uncertainty K = 1,5 m/s
2
PA
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
15 mm
-90°/0°/+45 (135°)
410 mm
1000 min
-1
230 - 240 V / 50 Hz
0,9 kW
5.3 kg
2
2
Reduce noise generation and vibration to a minimum!
• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.

7. Attachment and operation

ASSEMBLY
When assembling this machine, please follow the in-
structions for assembly printed.
Assemble the handle on the machine (Fig 3-4)
Open the screw holder (17)
Install the front handle (11) at your desired positon
and close the srew holder (17) after this. Screw down
the screw handle (9) for a fix position.
Assemble the extansion / hedge trimmer
(Fig 5-6)
Put the two tubes together. Please make sure that the
metal ball (4) and the bore are on one line. Push them
together until the drive shaft(3) are locked. If you don't
find the correct position please turn the tubes. The
metal ball (4) have to lock at the bore. It's only allowed
to use the device if you locked the metal ball (4). Fix
the position with the screw handle (9)
Angle adjustment (Fig 7-8)
If you want to change the angle pull the switch (7)
to yourself and at the same time press the unlocking
switch, now you can change to 7 different angel for
a perfect work balance. Attention. Only change the
angel if the motor is not connect.
The belt install (Fig 9, 12)
It's only allowed to work with the device if the belt is
installed. Balance out the device before you start.
• Wear the belt like in the picture.
• Let the machine swing out.
• The device is not allowed to touch the ground dur-
ing normal work attitude.
• Safety lap at the carrying strap.
ATTENTION! In an emergency, the safety latch (l)
can be pulled from the harness. The machine then
detaches immediately from the carrying strap (9)
and falls to the ground.
Change the handle position Fig. 10
Push the slide switch (13) to the stop.
At the same time you can switch between 5 different
position (-90°, -45°, 0°, 45°,90°). If you find the right
position release the slide switch (13).
