Operation
6.2 Screen Design
This chapter contains information on the basic layout of the screen and
the positions of the screen elements.

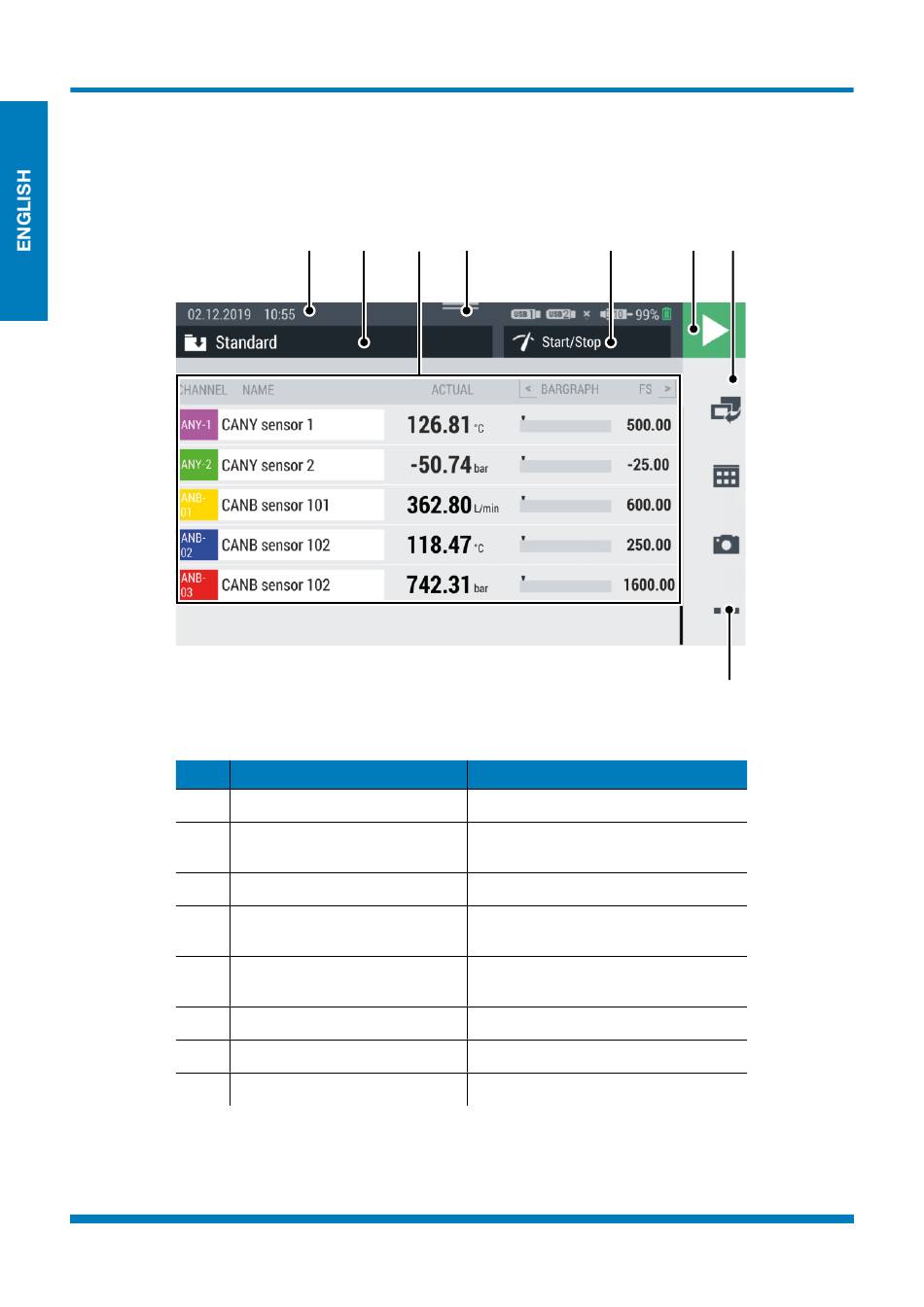

Fig. 15 Screen layout
Pos. Element
1 Status bar
2 Button, Projects & Tem-
plates
3 Main view
4 Button,
Quick Start Menu
5 Menu area, measurement
options
6 Button, Start/Stop
7 Menu area
8 Button, Options
42
1 2 3 4
Description
Display for system status
To select projects or templates
Display of the current function
To open the Quick Start menu
To select measurement options
To start/stop measurements
To initiate the main functions
To unhide/hide the options
5 6 7
8
