Refer to the following overview for the PIN assignment:

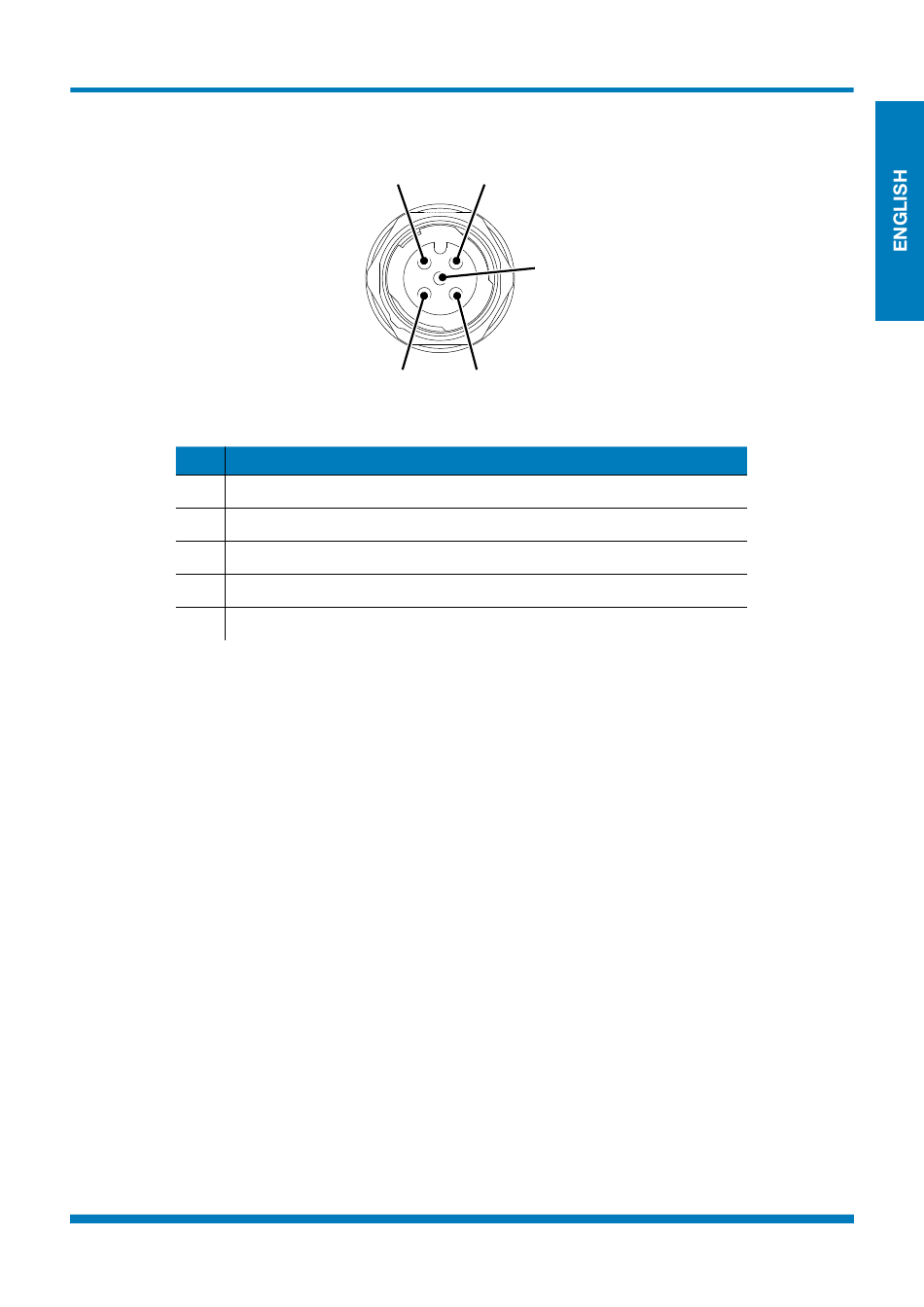

Fig. 11 PIN assignment, CAN input module (HPM7000-IM-CAN)
PIN Designation
1 Shielding
2 Not connected
3 GND
4 CAN High
5 CAN Low
After connecting the sensors without sensor detection, complete the
necessary settings for the electrical connection and expected signal
according to the properties of the sensors connected. Refer to Chapter
& "Input Modules A and B".
1 2
5
4 3
Input Modules
