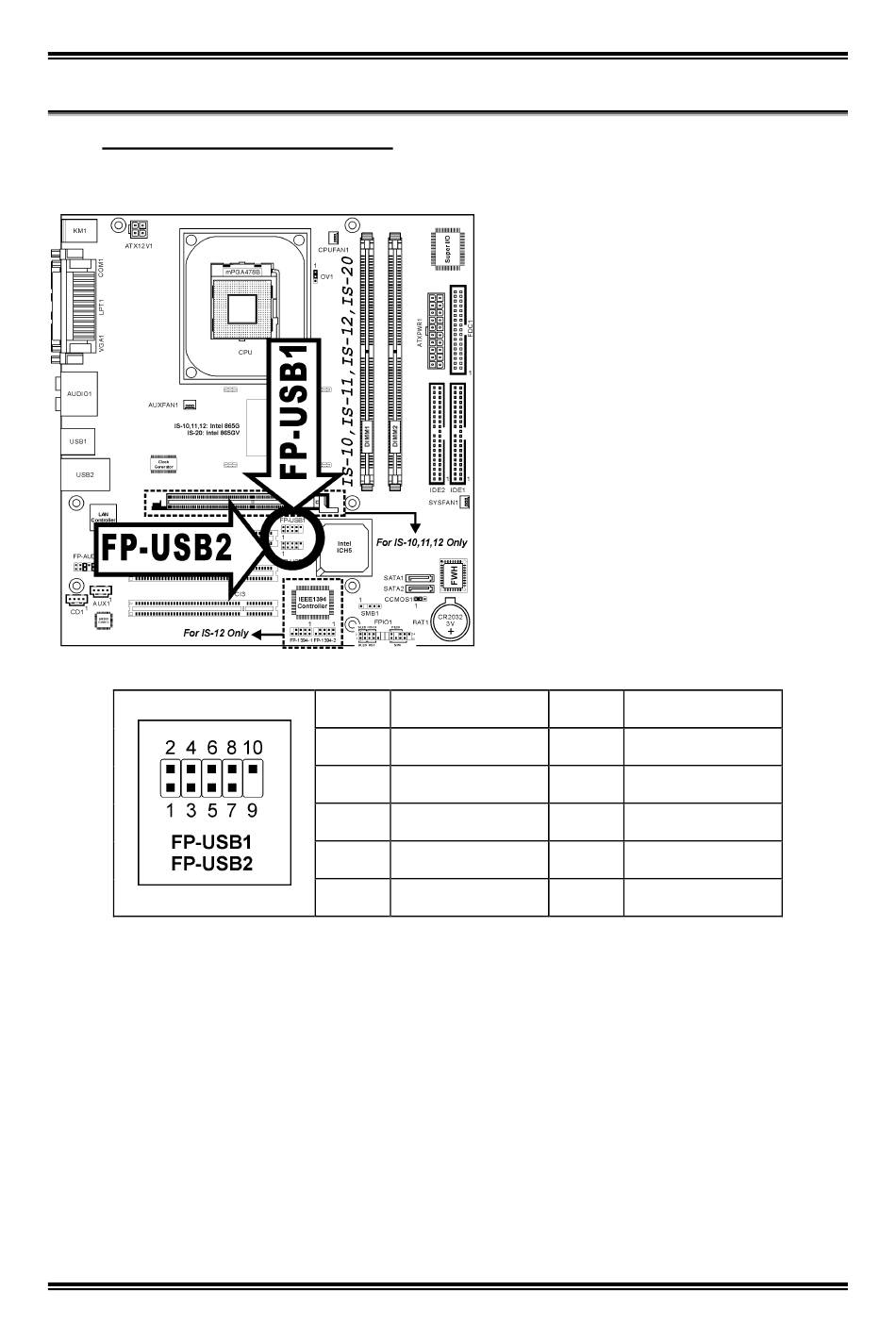

(7). Zusätzliche USB Port-Header
Diese Sockel bietet jeweils zwei zusätzliche USB-Anschlussverbindungen an.
IS-10 / IS-11 / IS-12 / IS-20
Pin-Nr. Pin-Zuweisung Pin-Nr. Pin-Zuweisung
1
VCC
3
Data0 -
5
Data0 +
7
Erde
9
NC
2
VCC
4
Data1 -
6
Data1 +
8
Erde
10
NC
