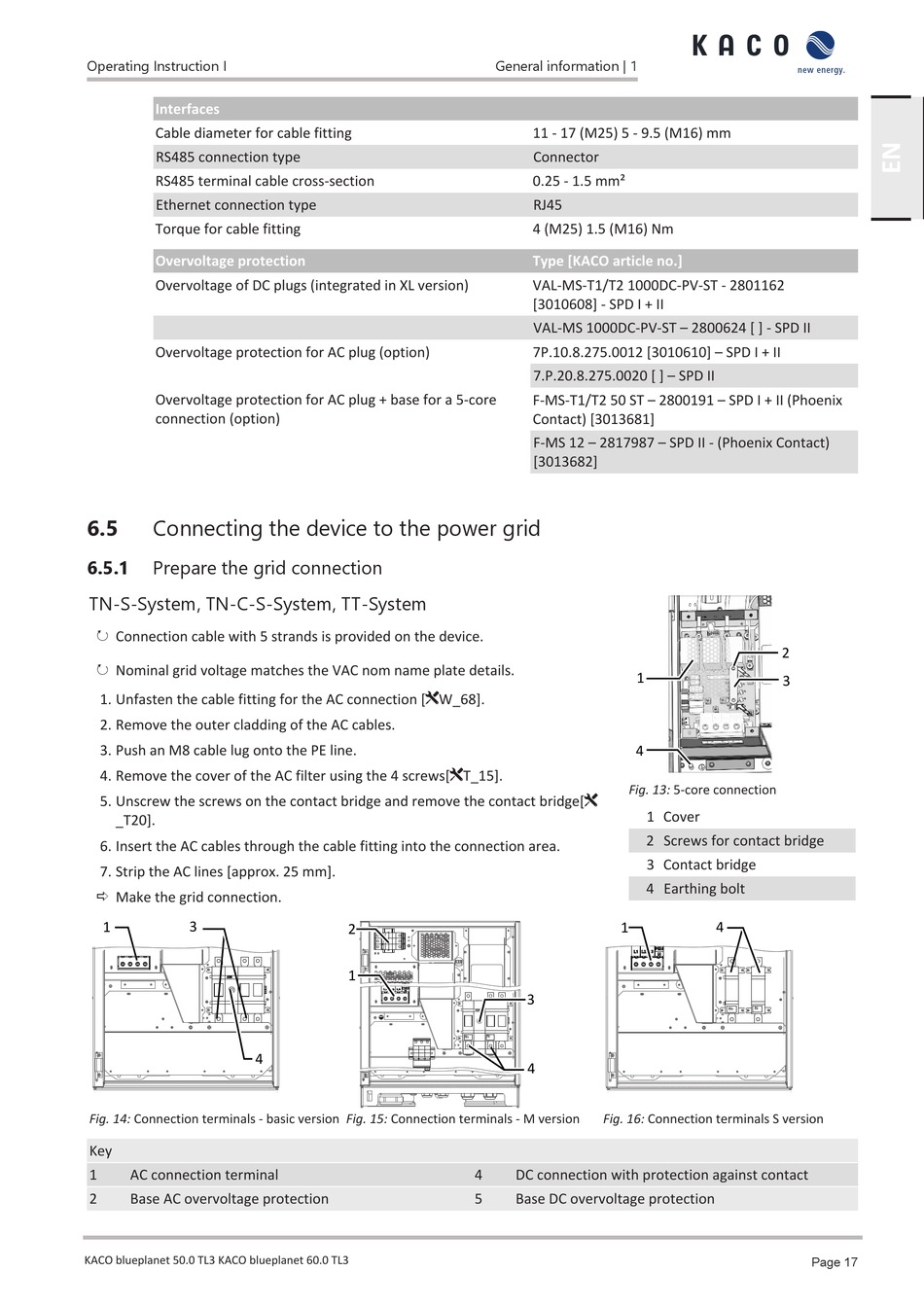

Operating Instruction I
Interfaces
Cable diameter for cable fitting
RS485 connection type
RS485 terminal cable cross-section
Ethernet connection type
Torque for cable fitting
Overvoltage protection
Overvoltage of DC plugs (integrated in XL version)
Overvoltage protection for AC plug (option)
Overvoltage protection for AC plug + base for a 5-core
connection (option)
6.5
Connecting the device to the power grid
6.5.1
Prepare the grid connection
TN-S-System, TN-C-S-System, TT-System
↻ Connection cable with 5 strands is provided on the device.
↻ Nominal grid voltage matches the VAC nom name plate details.
1. Unfasten the cable fitting for the AC connection [ W_68].
2. Remove the outer cladding of the AC cables.
3. Push an M8 cable lug onto the PE line.
4. Remove the cover of the AC filter using the 4 screws[ T_15].
5. Unscrew the screws on the contact bridge and remove the contact bridge[
_T20].
6. Insert the AC cables through the cable fitting into the connection area.
7. Strip the AC lines [approx. 25 mm].
ð Make the grid connection.
1
3
4
Fig. 14: Connection terminals - basic version
Key
1
AC connection terminal
2
Base AC overvoltage protection
KACO blueplanet 50.0 TL3 KACO blueplanet 60.0 TL3
General information | 1
2
1
PV+
PV-
Fig. 15: Connection terminals - M version
4
DC connection with protection against contact
5
Base DC overvoltage protection
11 - 17 (M25) 5 - 9.5 (M16) mm
Connector
0.25 - 1.5 mm²
RJ45
4 (M25) 1.5 (M16) Nm
Type [KACO article no.]
VAL-MS-T1/T2 1000DC-PV-ST - 2801162
[3010608] - SPD I + II
VAL-MS 1000DC-PV-ST – 2800624 [ ] - SPD II
7P.10.8.275.0012 [3010610] – SPD I + II
7.P.20.8.275.0020 [ ] – SPD II
F-MS-T1/T2 50 ST – 2800191 – SPD I + II (Phoenix
Contact) [3013681]
F-MS 12 – 2817987 – SPD II - (Phoenix Contact)
[3013682]
1
4
Fig. 13: 5-core connection
1 Cover
2 Screws for contact bridge
3 Contact bridge
4 Earthing bolt
1
3
4
Fig. 16: Connection terminals S version
2
3
4
PV+
PV-
Page 17
