Montaggio Condensatore-Filtro Essiccatore; Montaje Condensador-Filtro Secador - Delphi Diavia Einbauanleitung

Peugeot 206 1.900 diesel
Vorschau ausblenden Andere Handbücher für Diavia:
Inhaltsverzeichnis

Werbung

MONTAGGIO CONDENSATORE-FILTRO ESSICCATORE / POSE DU CONDENSEUR-FILTRE DESHYDRATEUR
CONDENSER-RECEIVER FITTING / KONDENSATOR-TROCKNERFILTEREINBAU
MATERIALE FORNITO / MATERIEL FOURNI / SUPPLIED MATERIAL / GELIEFERTES MATERIAL / MATERIAL ABASTECIDO
36
37
38
39
ELENCO MATERIALE FORNITO / LISTE DU MATERIEL FOURNI / LIST OF SUPPLIED MATERIALS
VERZEICHNIS DES GELIEFERTEN MATERIALS / LISTA MATERIAL ABASTECIDO
Pos.
31
Condensatore / Condenseur / Condenser / Kondensator / Condensador
32
Staffa condensatore / Etrier condenseur / Condenseur bracket / Halterung Kondensator /
Abrazadera condensador
33
Elettroventola / Electroventilateur / Electric fan / Elektrogebläse / Electroventilador
34
Staffa di supporto elettroventola / Support électroventilateur / Electric fan support bracket /
Elektrogebläse-Haltebügel / Abrazadera de soporte electroventilador
35
Sacchetto accessori / Sachet accessories / Bag of accessories / Säckchen mit Zubehörteilen /
Bolsita accesorios
36
Protezione a spirale / Protection en spirale / Spiral protection / Spiralförmige Ummantelung /
Protección a espiral
37
Resistore / Résisteur / Resistor / Widerstand / Resistor
38
Fermatubo / Fixation tuyau/ Pipe clamp / Schlauchbinder / Detiene tubo
39
Fascetta / Collier / Clamp / Schelle / Banda

MONTAJE CONDENSADOR-FILTRO SECADOR

31
32
32
Descrizione / Description / Description / Beschreibung / Descripción
33
34
35
16
Fig.1B
(I)

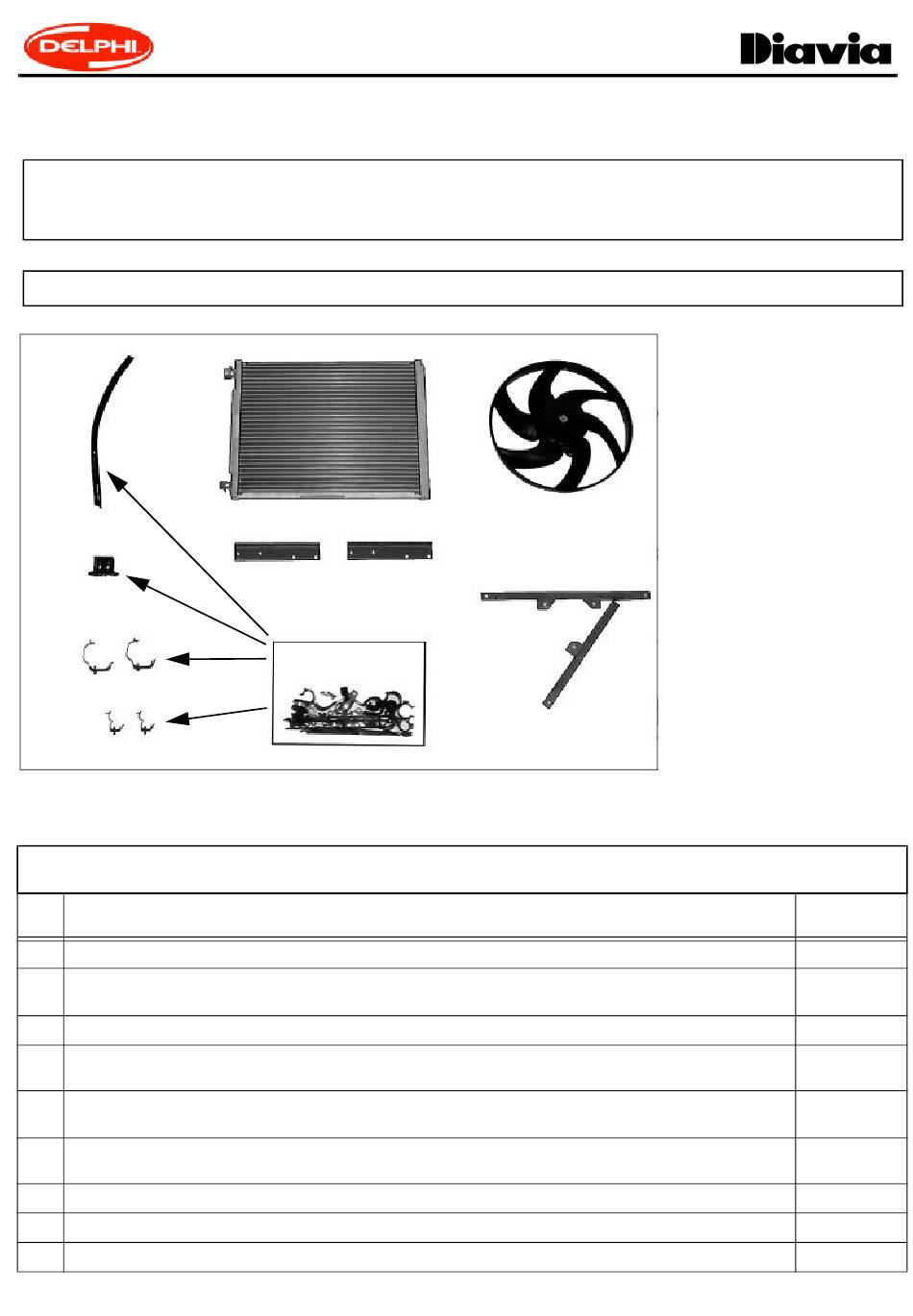

Vista componenti montaggio con-
densatore.
(F)
Vue des composants nécessaires
au montage du condenseur.
(GB)
View of the components for the
condenser assembly.
(D)
Ansicht der Einbauteile des Kon-
densators.
(E)
Vista de los componentes para el
montaje del condensador.
Codice / Code
Kode / Codigo
022298OR/1
0812287/0
080151/0
0812288/0
0231403/0
070494/0
0681112/2
062049/0
069715/0
